XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv
Production
Oct 2003
-
Oct 2006
Engine
N04C
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0310-0610)20T

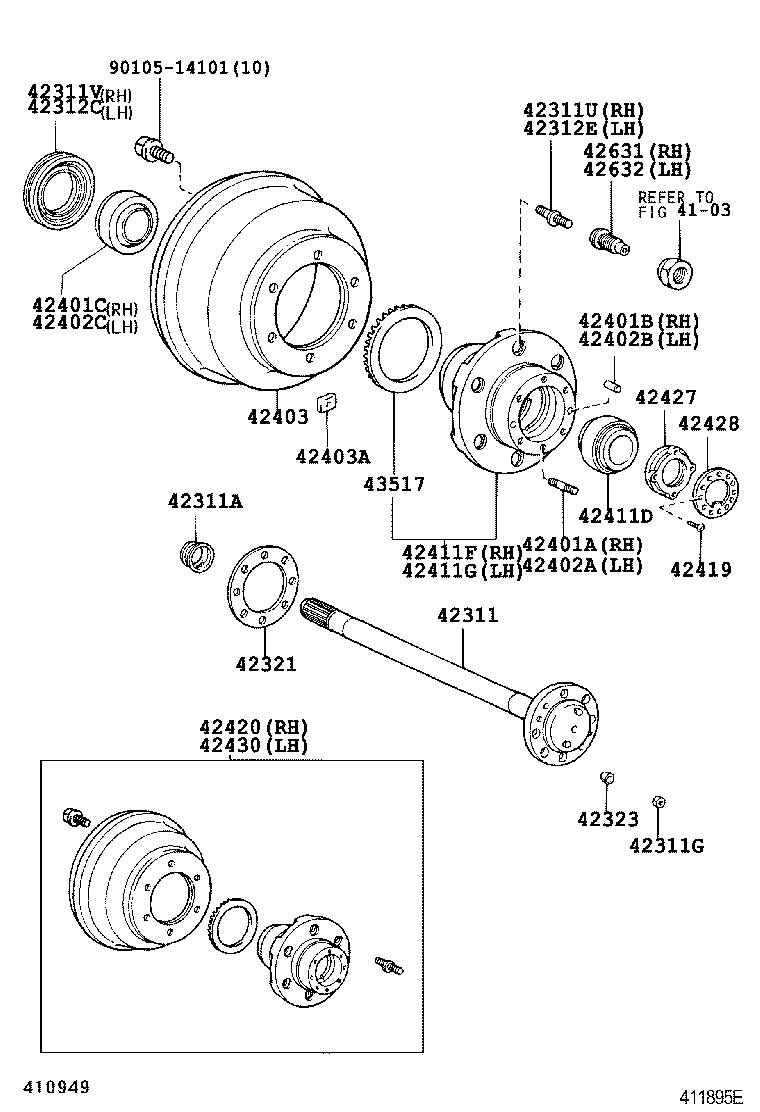

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-37130 |
XKU414..20T |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-40001 |
XKU414..20T |
2 | ||
| 42311G - NUT (FOR REAR AXLE SHAFT) | ||||
| 90179-10067 |
XKU414..20T |
16 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02071 |
XKU414..20T |
5 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-78001 |
XKU414..20T |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-78001 |
XKU414..20T |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02072 |
XKU414..20T |
5 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-37020 |
XKU414..20T |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
XKU414..20T |
16 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90116-10191 |
XKU414..20T |
8 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-10055 |
XKU414..20T |
2 | ||
| 42401C - BEARING (FOR REAR AXLE HUB INNER RH) | ||||
| 90366-60012 |
XKU414..20T |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90116-10191 |
XKU414..20T |
8 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-10055 |
XKU414..20T |
2 | ||
| 42402C - BEARING (FOR REAR AXLE HUB INNER LH) | ||||
| 90366-60012 |
XKU414..20T |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-37080 |
XKU414..20T |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01119 |
XKU414..20T 30G |
1 | ||
| 90937-01122 |
XKU414..20T 60G |
1 | ||
| 90937-01120 |
XKU414..20T 40G |
1 | ||
| 90937-01118 |
XKU414..20T 20G |
1 | ||
| 90937-01121 |
XKU414..20T 50G |
1 | ||
| 90937-01117 |
XKU414..20T 10G |
1 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90366-55054 |
XKU414..20T |
2 | ||
| 42411F - HUB, REAR AXLE, RH | ||||
| 42407-37021 |
XKU414..20T |
1 | ||
| 42411G - HUB, REAR AXLE, LH | ||||
| 42408-37021 |
XKU414..20T |
1 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
XKU414..20T |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-39175 |
XKU414..20T |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-37020 |
XKU414..20T |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
XKU414..20T |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-39215 |
XKU414..20T |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-55031 |
XKU414..20T |
5 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-55031 |
XKU414..20T |
5 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-37010 |
XKU414..20T |
2 | ||
| Common parts | ||||
| 90105-14101 | ||||
| Linked diagrams | ||||
| 4103 | ||||
