XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310-0610)

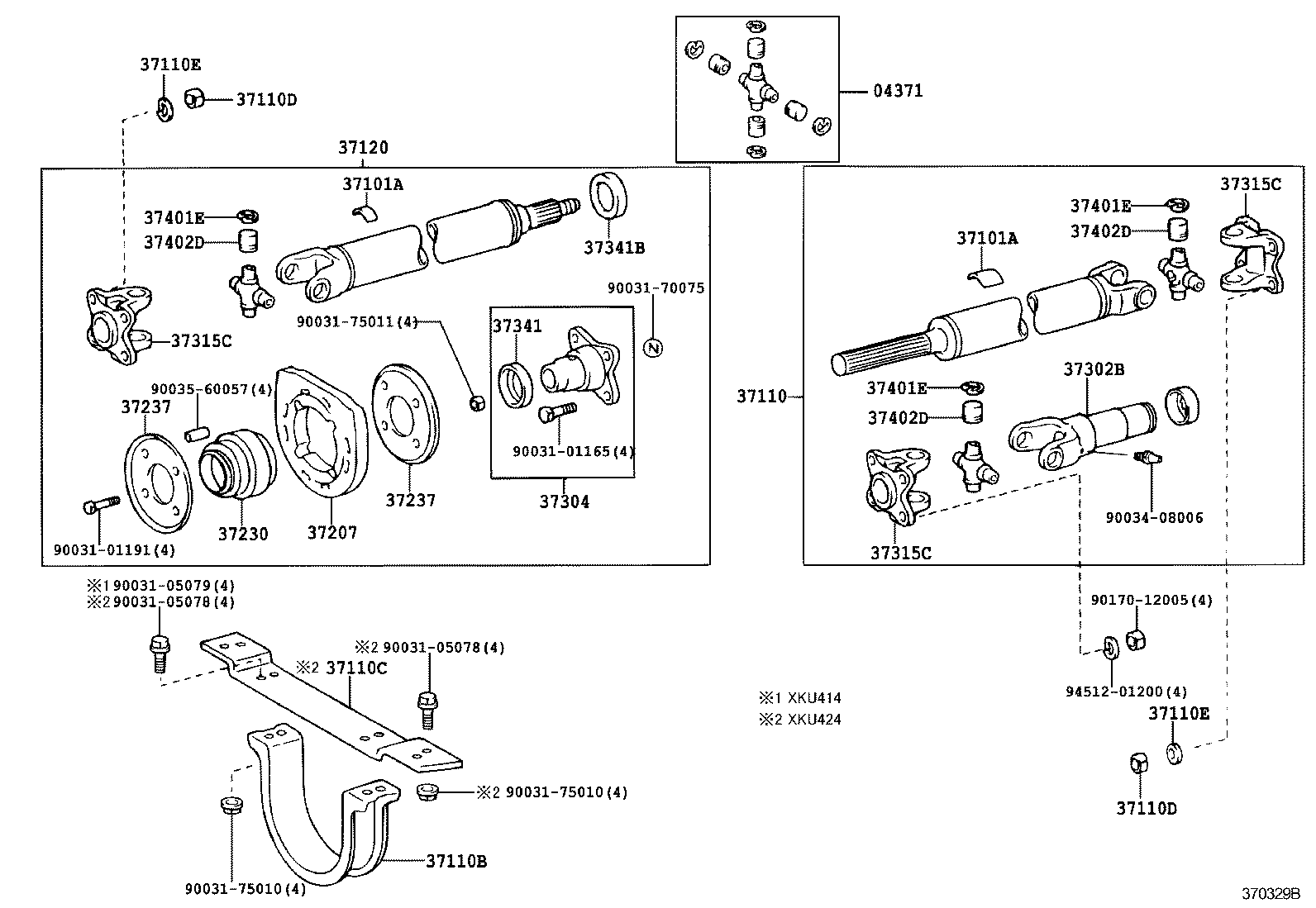

Click highlighted areas on diagram

diagram 04371 37101A 37101A 37110 37110B 37110C 37110D 37110D 37110E 37110E 37120 37207 37230 37237 37237 37302B 37304 37315C 37315C 37315C 37341 37341B 37401E 37401E 37401E 37402D 37402D 37402D 9003101165 9003101191 9003105078 9003105078 9003105079 9003170075 9003175010 9003175010 9003175011 9003408006 9003560057 9017012005 9451201200
Part # Description Qty Price
04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
04371-37011

XKU414,424

 3
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90039-13002

XKU414,424

12G

 1
90039-13005

XKU414,424

75G

 1
90039-13003

XKU414,424

25G

 1
90039-13001

XKU414,424

6G

 1
90039-13004

XKU414,424

50G

 1
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90039-13002

XKU414,424

12G

 1
90039-13005

XKU414,424

75G

 1
90039-13003

XKU414,424

25G

 1
90039-13001

XKU414,424

6G

 1
90039-13004

XKU414,424

50G

 1
37110 - SHAFT ASSY, PROPELLER
37110-37580

XKU414

 1
37110B - GUARD, PROPELLER SHAFT
37231-37020

XKU414,424

 1
37110D - NUT (FOR PROPELLER SHAFT)
90170-12005

XKU414,424

 8
37110D - NUT (FOR PROPELLER SHAFT)
90170-12005

XKU414,424

 8
37110E - WASHER (FOR PROPELLER SHAFT)
94512-01200

XKU414,424

 8
37110E - WASHER (FOR PROPELLER SHAFT)
94512-01200

XKU414,424

 8
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-37280

XKU414

 1
37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1
37235-37020

XKU414,424

 1
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37201-37010

XKU414,424

 1
37237 - PLATE, CENTER SUPPORT BEARING, NO.1
37237-37010

XKU414,424

厚さ=3.0

 2
37237 - PLATE, CENTER SUPPORT BEARING, NO.1
37237-37010

XKU414,424

厚さ=3.0

 2
37302B - YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEV
37302-37021

XKU414,424

 1
37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT
37304-37020

XKU414,424

 1
37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE
37315-37021

XKU414,424

 3
37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE
37315-37021

XKU414,424

 3
37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE
37315-37021

XKU414,424

 3
37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1
37341-37020

XKU414,424

 1
37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5
37341-37020

XKU414,424

 1
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21024

XKU414,424

厚さ=1.60

 12
90035-21025

XKU414,424

厚さ=1.65

 12
90035-21023

XKU414,424

厚さ=1.55

 12
90035-21022

XKU414,424

厚さ=1.50

 12
90035-21026

XKU414,424

厚さ=1.70

 12
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21024

XKU414,424

厚さ=1.60

 12
90035-21025

XKU414,424

厚さ=1.65

 12
90035-21023

XKU414,424

厚さ=1.55

 12
90035-21022

XKU414,424

厚さ=1.50

 12
90035-21026

XKU414,424

厚さ=1.70

 12
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21024

XKU414,424

厚さ=1.60

 12
90035-21025

XKU414,424

厚さ=1.65

 12
90035-21023

XKU414,424

厚さ=1.55

 12
90035-21022

XKU414,424

厚さ=1.50

 12
90035-21026

XKU414,424

厚さ=1.70

 12
37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER
37402-37020

XKU414,424

 12
37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER
37402-37020

XKU414,424

 12
37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER
37402-37020

XKU414,424

 12
Common parts
90031-01165
90031-01191
90031-05078
90031-05079
90031-70075
90031-75010
90031-75011
90034-08006
90035-60057
90170-12005
94512-01200
