XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310-0610) ; (0610- )6F

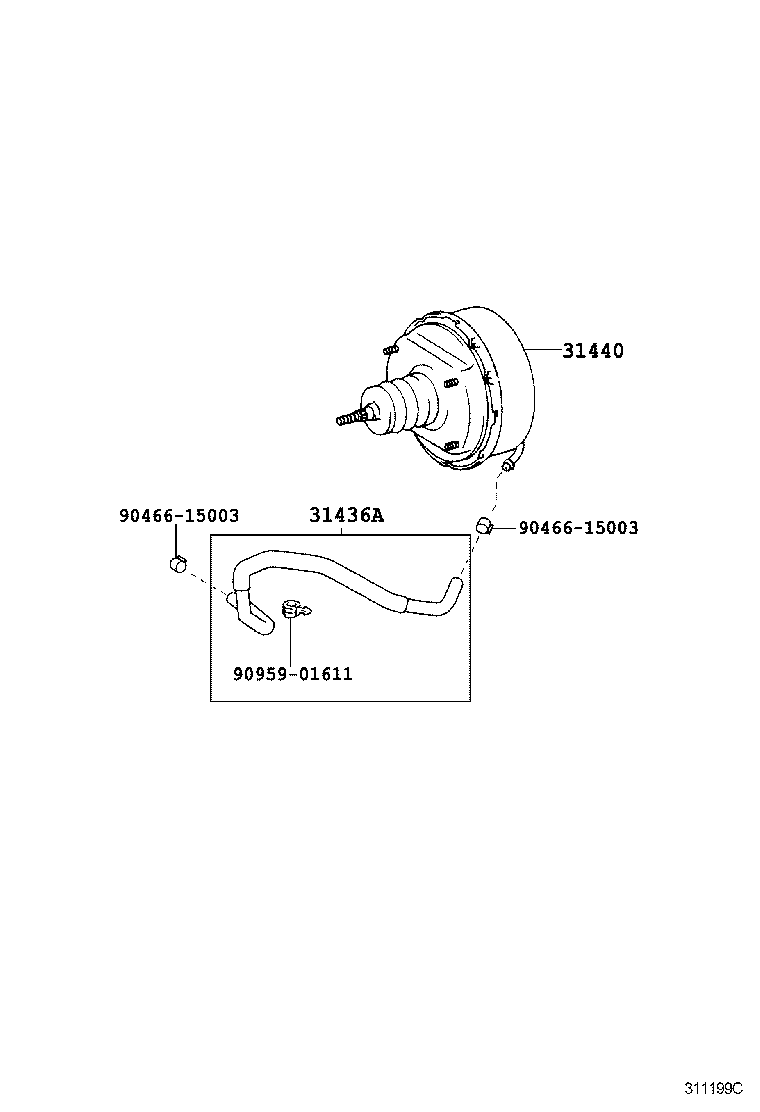

Click highlighted areas on diagram

diagram 31436A 31440 9046615003 9046615003 9095901611
Part # Description Qty Price
31436A - HOSE, NO.1(FOR CLUTCH BOOSTER VACUUM)
31436-37030

XKU414,424

 1
31440 - BOOSTER ASSY, CLUTCH W/AIR CLEANER
31440-37030

XKU414,424

 1
31440-37030

XKU414,424

 1
Common parts
90466-15003
90959-01611
