XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

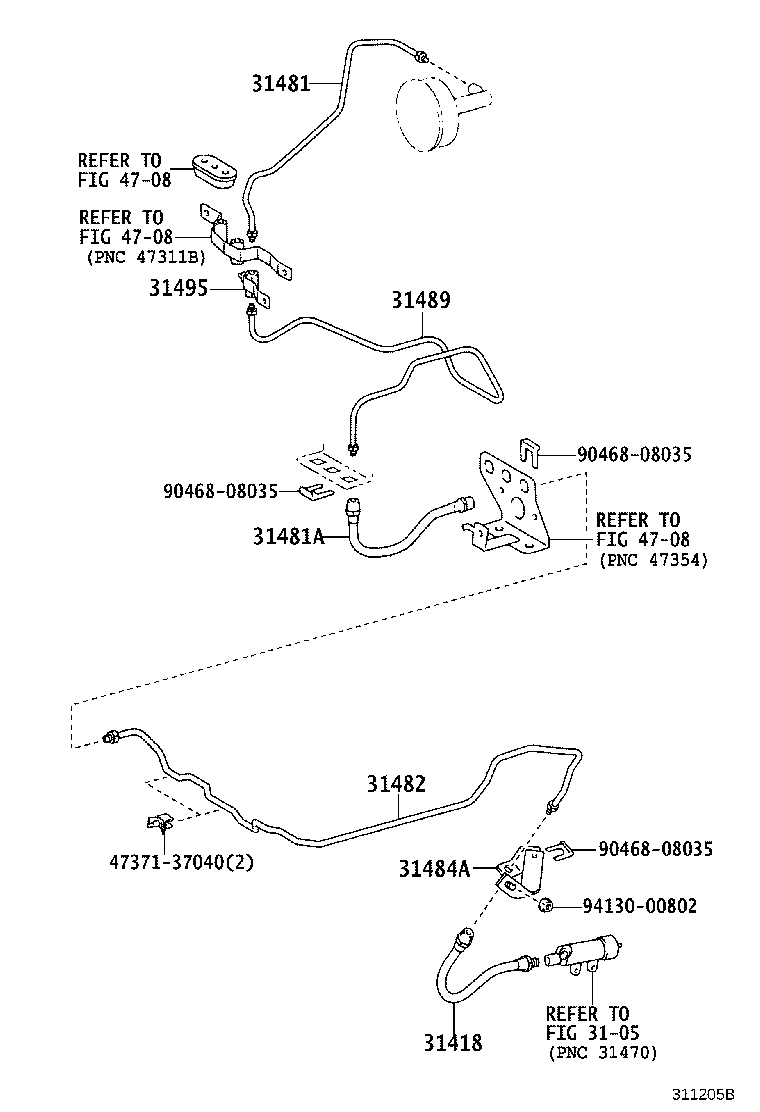

ILLUST NO. 2 OF 2(0310-0610)

Click highlighted areas on diagram

diagram 3105 31418 31481 31481A 31482 31484A 31489 31495 4708 4708 4708 4737137040 9046808035 9046808035 9046808035 9413000802
Part # Description Qty Price
31418 - HOSE, CLUTCH
31486-37010

XKU414,424

 1
96912-33357

XKU414,424

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-37120

XKU414,424

 1
31481A - HOSE, CLUTCH, NO.1
90931-01143

XKU414,424

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31481-37240

XKU414,424

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-37250

XKU414,424

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31481-37160

XKU414,424

 1
31481-37160

XKU414,424

 1
31495 - WAY, CLUTCH TUBE
31495-37020

XKU414,424

 1
Common parts
47371-37040
90468-08035
94130-00802
Linked diagrams
3105
4708

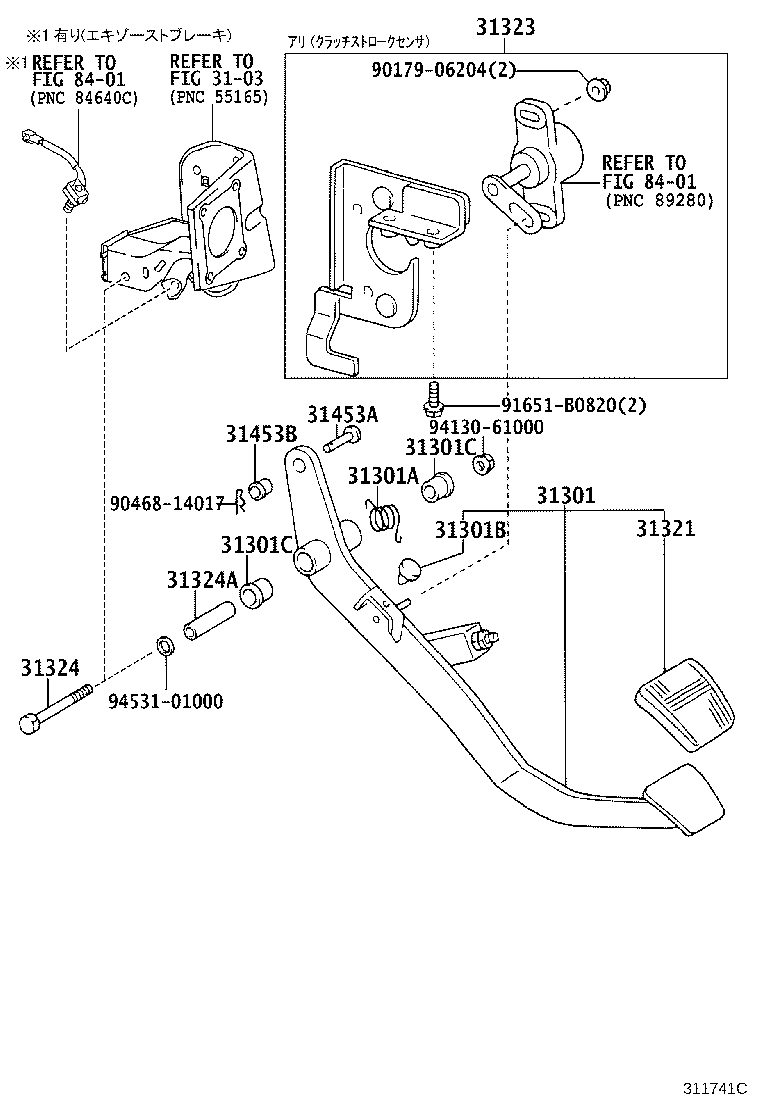

ILLUST NO. 1 OF 2(0310-0610)

Click highlighted areas on diagram

diagram 3103 31301 31301A 31301B 31301C 31301C 31321 31323 31324 31324A 31453A 31453B 8401 8401 9017906204 9046814017 91651B0820 9413061000 9453101000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-37170

XKU414,424

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90959-03394

XKU414,424

 1
90959-03344

XKU414,424

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

XKU414,424

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

XKU414,424

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

XKU414,424

 2
31321 - PAD, CLUTCH PEDAL
31321-14020

XKU414,424

 1
31323 - BRACKET, CLUTCH PEDAL
31302-37011

XKU414,424

 1
31324 - SHAFT, CLUTCH PEDAL
91112-61070

XKU414,424

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

XKU414,424

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

XKU414,424

長さ=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

XKU414,424

 1
Common parts
90179-06204
90468-14017
91651-B0820
94130-61000
94531-01000
Linked diagrams
3103
8401
