XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310-0610)

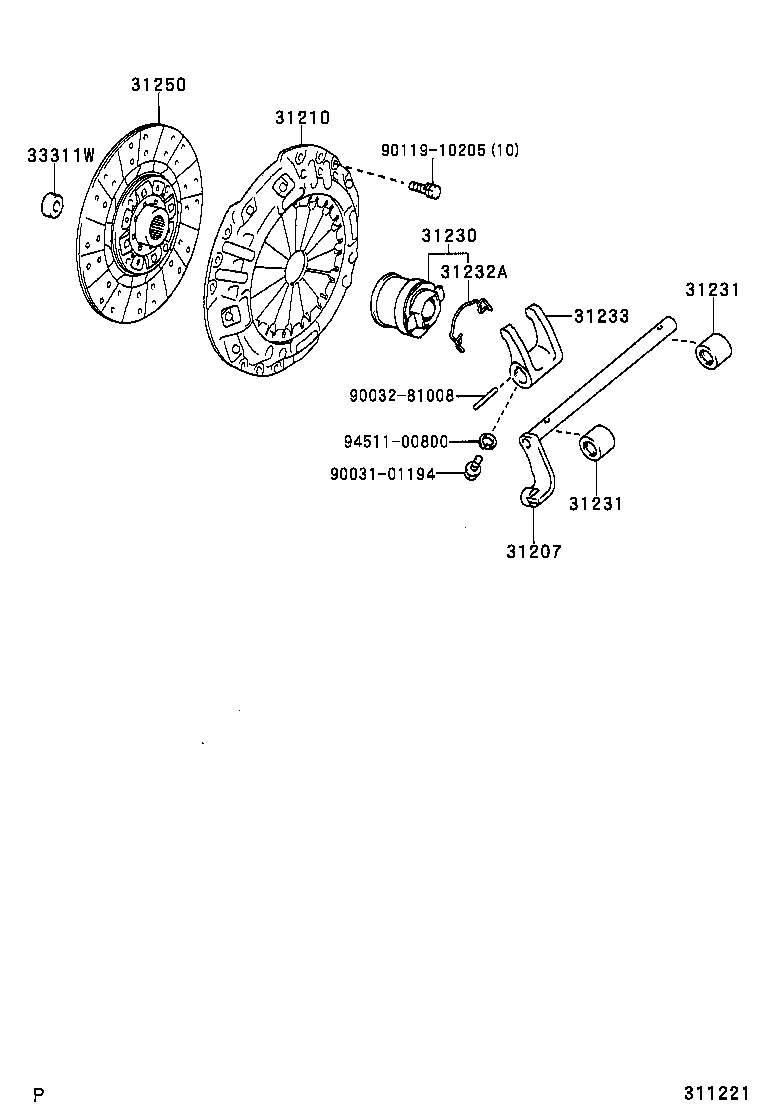

Click highlighted areas on diagram

diagram 31207 31210 31230 31231 31231 31232A 31233 31250 33311W 9003101194 9003281008 9011910205 9451100800
Part # Description Qty Price
31207 - LEVER SUB-ASSY, CLUTCH RELEASE FORK
31207-89101

XKU414,424

 1
31210 - COVER ASSY, CLUTCH
31210-37090

XKU414,424

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-36210

XKU414,424

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-37060

XKU414,424

 2
31231 - HUB, CLUTCH RELEASE BEARING
31231-37060

XKU414,424

 2
31232A - CLIP, RELEASE BEARING HUB
31232-36030

XKU414,424

 1
31233 - FORK, CLUTCH RELEASE
31233-89102

XKU414,424

 1
31250 - DISC ASSY, CLUTCH
31250-37120

XKU414,424

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-17037

XKU414,424

 1
Common parts
90031-01194
90032-81008
90119-10205
94511-00800
