XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv
Production
Oct 2003
-
Oct 2006
Engine
N04C
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0310-0610)

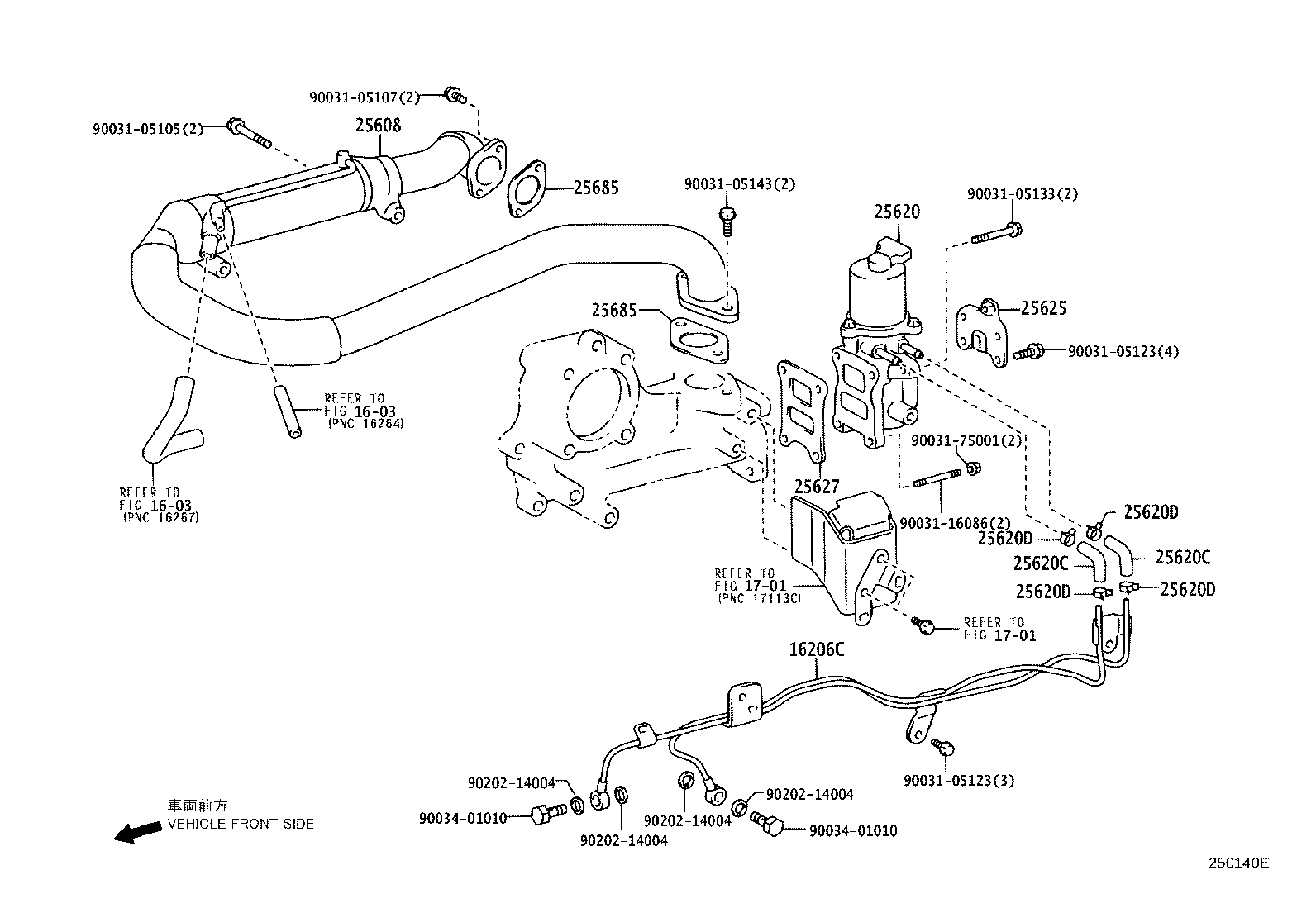

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206C - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-78012 |
N04C..XKU414,424 |
1 | ||
| 16206-78011 |
N04C..XKU414,424 |
1 | ||
| 25608 - COOLER SUB-ASSY, EGR | ||||
| 25608-78010 |
N04C..XKU414,424 |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-78020 |
N04C..XKU414,424 |
1 | ||
| 25620-78022 |
N04C..XKU414,424 |
1 | ||
| 25620-78021 |
N04C..XKU414,424 |
1 | ||
| 25620C - HOSE, WATER BY-PASS, NO.1 | ||||
| 90034-45101 |
N04C..XKU414,424 |
2 | ||
| 90034-45094 |
N04C..XKU414,424 |
2 | ||
| 25620C - HOSE, WATER BY-PASS, NO.1 | ||||
| 90034-45101 |
N04C..XKU414,424 |
2 | ||
| 90034-45094 |
N04C..XKU414,424 |
2 | ||
| 25620D - CLIP(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90034-67027 |
N04C..XKU414,424 |
4 | ||
| 25620D - CLIP(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90034-67027 |
N04C..XKU414,424 |
4 | ||
| 25620D - CLIP(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90034-67027 |
N04C..XKU414,424 |
4 | ||
| 25620D - CLIP(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90034-67027 |
N04C..XKU414,424 |
4 | ||
| 25625 - BRACKET, EGR VALVE | ||||
| 17455-78130 |
N04C..XKU414,424 |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 17173-78060 |
N04C..XKU414,424 |
1 | ||
| 25685 - GASKET, EGR COOLER, NO.1 | ||||
| 25685-78020 |
N04C..XKU414,424 |
2 | ||
| 25685 - GASKET, EGR COOLER, NO.1 | ||||
| 25685-78020 |
N04C..XKU414,424 |
2 | ||
| Common parts | ||||
| 90031-05105 | ||||
| 90031-05107 | ||||
| 90031-05123 | ||||
| 90031-05133 | ||||
| 90031-05143 | ||||
| 90031-16086 | ||||
| 90031-75001 | ||||
| 90034-01010 | ||||
| 90202-14004 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||
