XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )

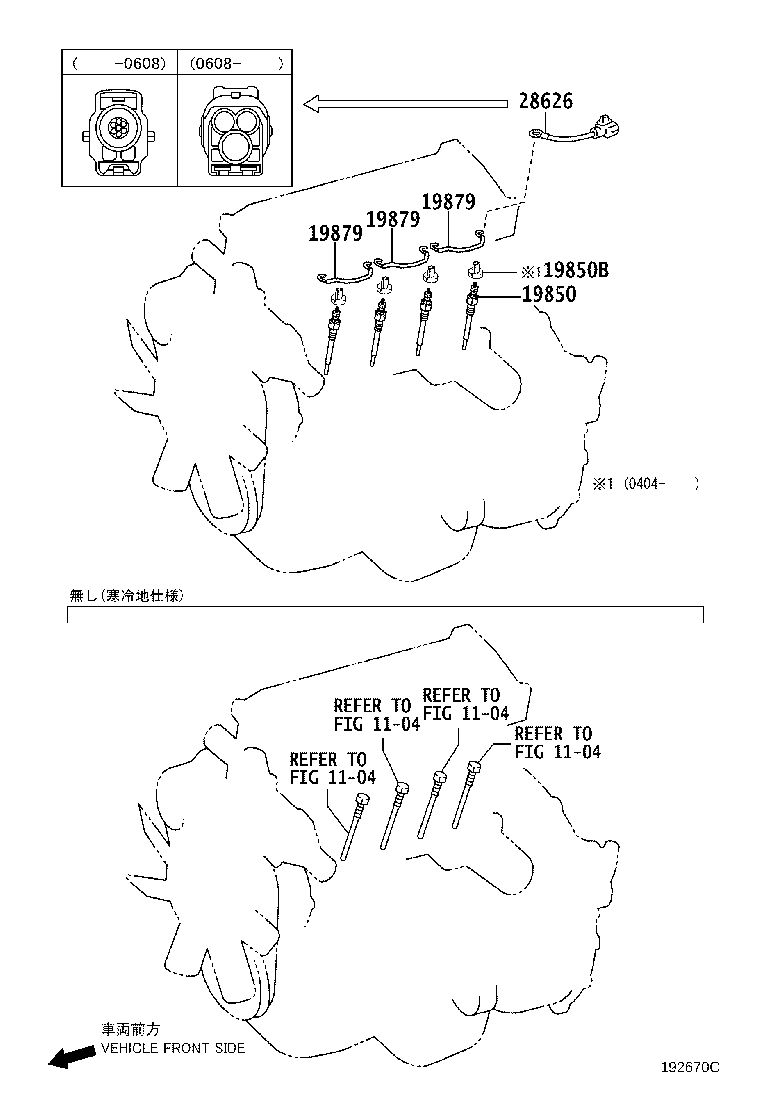

Click highlighted areas on diagram

diagram 1104 1104 1104 1104 19850 19850B 19879 19879 19879 28626
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-78051

N04C..XKU414,424

*BV−GV=24V−23V

 4
19850-78050

N04C..XKU414,424

*BV−GV=24V−23V

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-04024

N04C..XKU414,424

 4
19879 - WIRE, GLOW PLUG GROUND
19879-78010

N04C..XKU414,424

 3
19879 - WIRE, GLOW PLUG GROUND
19879-78010

N04C..XKU414,424

 3
19879 - WIRE, GLOW PLUG GROUND
19879-78010

N04C..XKU414,424

 3
28626 - WIRE, GLOW PLUG
28626-78050

N04C..XKU414,424

 1
28626-78030

N04C..XKU414,424

 1
28626-78010

N04C..XKU414,424

 1
Linked diagrams
1104
