Toyota Dyna/toyoace hv XKU414 EXHAUST PIPE

Part #	Description	Period	Qty
17400 - CONVERTER ASSY, W/CATALYST
17406-78090	N04C..XKU414,424 NO.2	10/2003 - 10/2006	1
17403-78610	N04C..XKU414,424 NO.1	10/2003 - 10/2006	1
17400 - CONVERTER ASSY, W/CATALYST
17406-78090	N04C..XKU414,424 NO.2	10/2003 - 10/2006	1
17403-78610	N04C..XKU414,424 NO.1	10/2003 - 10/2006	1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78210	N04C..XKU414,424	10/2003 - 10/2006	1
17410B - GASKET, EXHAUST PIPE
90917-06087	N04C..XKU414,424	10/2003 - 10/2006	1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-78880	N04C..XKU414..20T NO.2	10/2003 - 10/2006	1
17405-78890	N04C..XKU414..20T ｱﾘ(ﾓｸｾｲﾃﾞﾂｷ 3ﾎｳﾋﾞﾗｷ),NO.2	02/2004 - 10/2006	1
17405-78870	N04C..XKU414,424 NO.1	10/2003 - 10/2006	1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-78880	N04C..XKU414..20T NO.2	10/2003 - 10/2006	1
17405-78890	N04C..XKU414..20T ｱﾘ(ﾓｸｾｲﾃﾞﾂｷ 3ﾎｳﾋﾞﾗｷ),NO.2	02/2004 - 10/2006	1
17405-78870	N04C..XKU414,424 NO.1	10/2003 - 10/2006	1
17450A - CLAMP, EXHAUST PIPE, NO.5
17589-78020	N04C..XKU414,424	10/2003 - 08/2004	2
17589-78021	N04C..XKU414,424	08/2004 - 10/2006	2
17450A - CLAMP, EXHAUST PIPE, NO.5
17589-78020	N04C..XKU414,424	10/2003 - 08/2004	2
17589-78021	N04C..XKU414,424	08/2004 - 10/2006	2
17451 - GASKET, EXHAUST PIPE
17451-78020	N04C..XKU414,424	10/2003 - 10/2006	2
17451 - GASKET, EXHAUST PIPE
17451-78020	N04C..XKU414,424	10/2003 - 10/2006	2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-73020	N04C..XKU414,424	10/2003 - 10/2006	2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-73020	N04C..XKU414,424	10/2003 - 10/2006	2
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78040	N04C..XKU414,424 NO.2	10/2003 - 10/2006	1
17567-78030	N04C..XKU414,424 NO.1	10/2003 - 10/2006	2
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78040	N04C..XKU414,424 NO.2	10/2003 - 10/2006	1
17567-78030	N04C..XKU414,424 NO.1	10/2003 - 10/2006	2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78030	N04C..XKU414,424	10/2003 - 10/2006	1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-78120	N04C..XKU414,424 NO.2	12/2004 - 10/2006	1
17571-78070	N04C..XKU414,424 NO.2	10/2003 - 11/2004	1
17571-78060	N04C..XKU414,424 NO.1	10/2003 - 10/2006	1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-78120	N04C..XKU414,424 NO.2	12/2004 - 10/2006	1
17571-78070	N04C..XKU414,424 NO.2	10/2003 - 11/2004	1
17571-78060	N04C..XKU414,424 NO.1	10/2003 - 10/2006	1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-78210	N04C..XKU414,424	10/2003 - 10/2006	1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-78230	N04C..XKU414,424 NO.1	10/2003 - 10/2006	1
17573-78240	N04C..XKU414,424 NO.2	10/2003 - 10/2006	1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-78230	N04C..XKU414,424 NO.1	10/2003 - 10/2006	1
17573-78240	N04C..XKU414,424 NO.2	10/2003 - 10/2006	1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-78231	N04C..XKU414,424	08/2004 - 10/2006	1
17575-78230	N04C..XKU414,424	10/2003 - 08/2004	1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-78060	N04C..XKU414,424	10/2003 - 10/2006	1
17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8
17578-78120	N04C..XKU414,424	10/2003 - 10/2006	1
18450 - CONVERTER ASSY, MONOLITHIC
18450-78020	N04C..XKU414,424	10/2003 - 10/2006	1
Common parts
23271-78270
90031-16080
90031-16081
90031-19100
90031-75007
90119-08B95
90179-10070
91551-80620
91641-80825
91642-81035
94151-80600
94185-60800
94185-61000
95333-08020
96136-41501

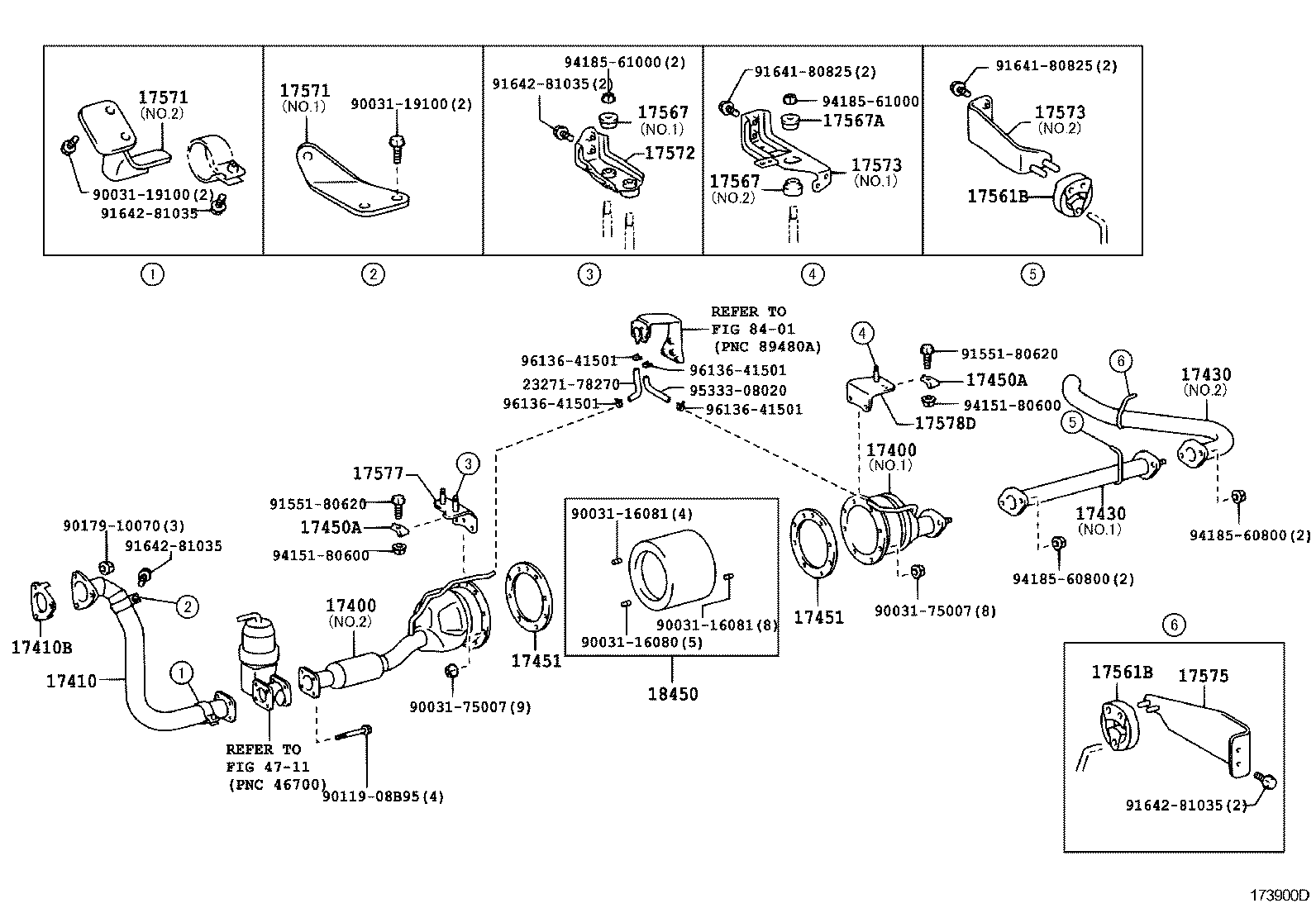

Linked diagrams
4711
8401

XKU414-TQFMW3 (2003)

(0310- )N04C..DCRL
