XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )

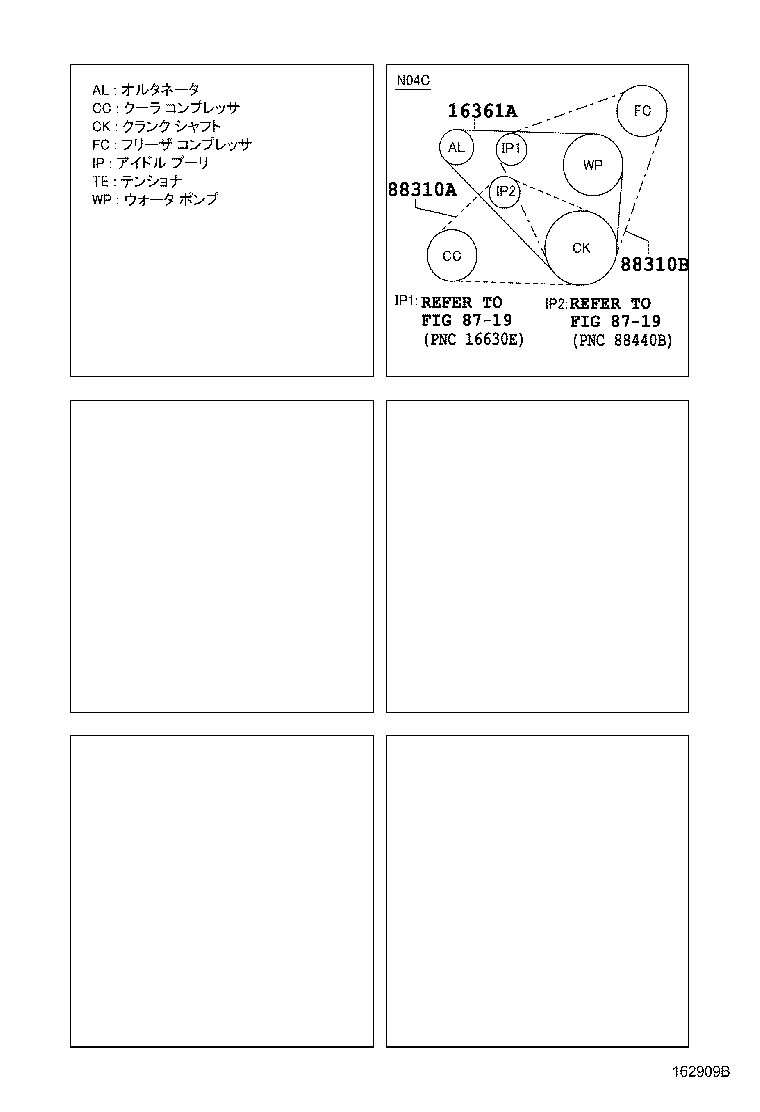

Click highlighted areas on diagram

diagram 16361A 8719 8719 88310A 88310B
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90038-39008

N04C..XKU414,424

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90038-32011

XKU414,424

長さ=1010

 1
Linked diagrams
8719
