XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv

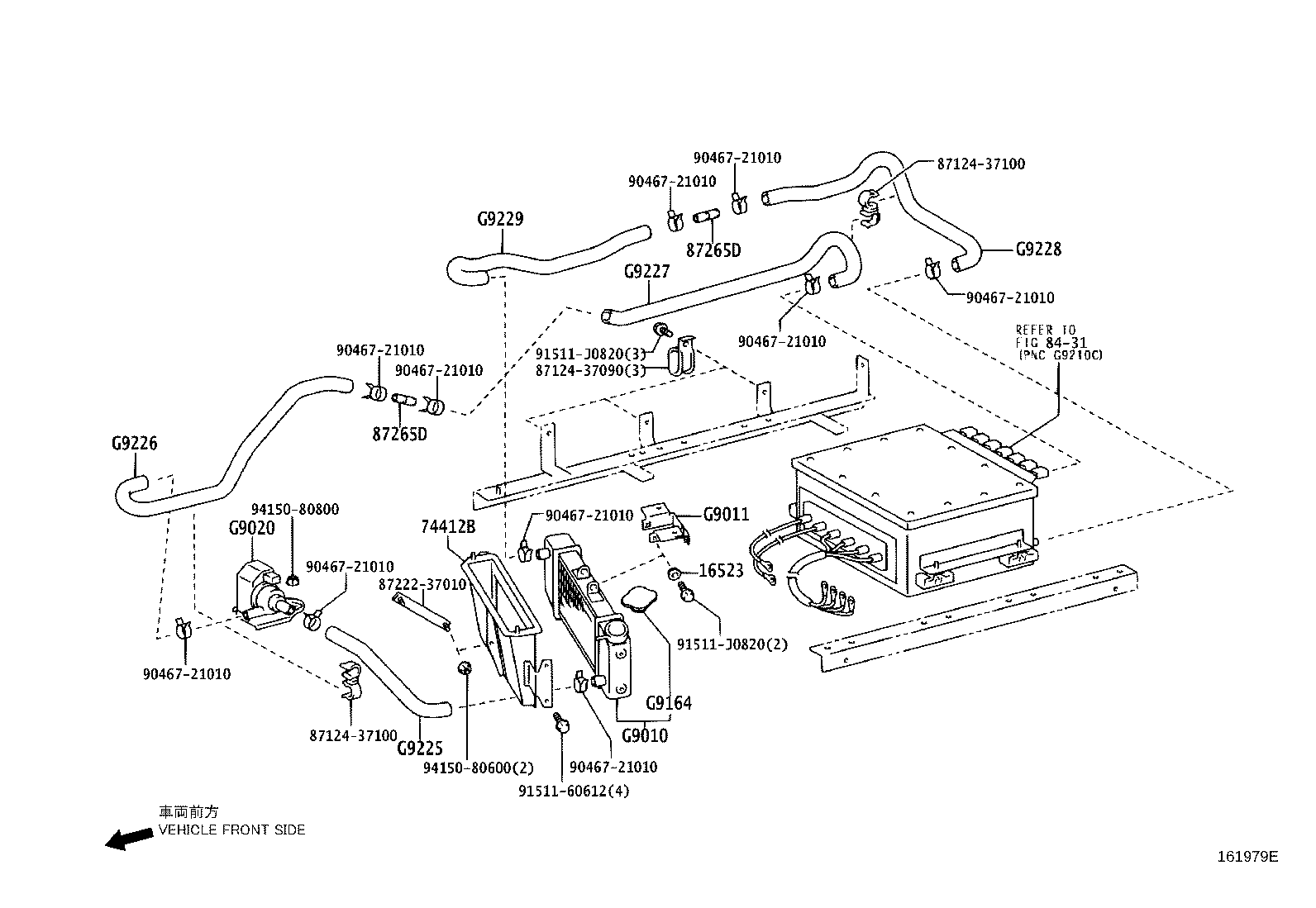

ILLUST NO. 3 OF 3(0310-0407)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16523 - CUSHION, SUB-RADIATOR SUPPORT | ||||
| 71467-37010 |
N04C..XKU414,424 |
2 | ||
| 74412B - DUCT, BATTERY CARRIER | ||||
| 74412-37180 |
XKU414,424 |
1 | ||
| 87265D - CONNECTOR, HEATER WATER HOSE | ||||
| 87265-35190 |
XKU414,424 |
2 | ||
| 87265D - CONNECTOR, HEATER WATER HOSE | ||||
| 87265-35190 |
XKU414,424 |
2 | ||
| G9010 - RADIATOR ASSY, INVERTER | ||||
| G9010-89101 |
XKU414,424 |
1 | ||
| G9011 - BRACKET SUB-ASSY, INVERTER RADIATOR | ||||
| G9011-89101 |
XKU414,424 |
1 | ||
| G9011-89102 |
XKU414,424 |
1 | ||
| G9020 - PUMP ASSY,HV WATER, NO.1 | ||||
| G9020-47021 |
XKU414,424 |
1 | ||
| G9020-47020 |
XKU414,424 |
1 | ||
| G9164 - CAP, INVERTER RADIATOR | ||||
| G9164-89101 |
XKU414,424 |
1 | ||
| G9225 - HOSE, INVERTER COOLING, NO.1 | ||||
| G9225-89101 |
XKU414,424 |
1 | ||
| G9226 - HOSE, INVERTER COOLING, NO.2 | ||||
| G9226-89102 |
XKU414,424 |
1 | ||
| G9227 - HOSE, INVERTER COOLING, NO.3 | ||||
| G9227-89102 |
XKU414,424 |
1 | ||
| G9228 - HOSE, INVERTER COOLING, NO.4 | ||||
| G9228-89102 |
XKU414,424 |
1 | ||
| G9229 - HOSE, INVERTER COOLING, NO.5 | ||||
| G9229-89102 |
XKU414,424 |
1 | ||
| Common parts | ||||
| 87124-37090 | ||||
| 87124-37100 | ||||
| 87222-37010 | ||||
| 90467-21010 | ||||
| 91511-60612 | ||||
| 91511-J0820 | ||||
| 94150-80600 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 8431 | ||||

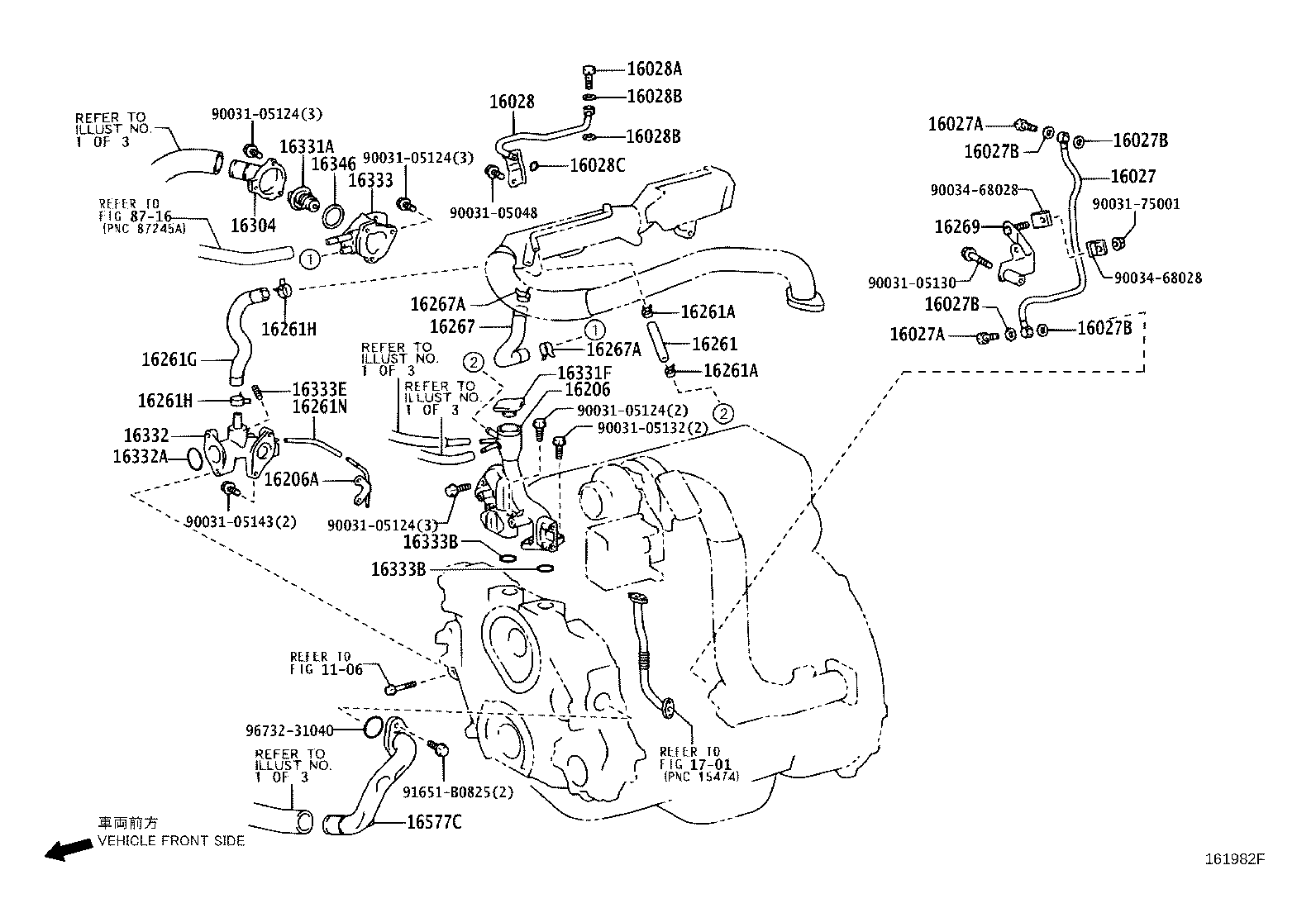

ILLUST NO. 2 OF 3(0310-0610)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16268-78010 |
N04C..XKU414,424 |
1 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| 90034-01010 |
N04C..XKU414,424 |
2 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| 90034-01010 |
N04C..XKU414,424 |
2 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XKU414,424 |
4 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XKU414,424 |
4 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XKU414,424 |
4 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XKU414,424 |
4 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16206-78040 |
N04C..XKU414,424 |
1 | ||
| 16028A - BOLT, UNION(FOR TURBO WATER PIPE NO.2) | ||||
| 90034-01010 |
N04C..XKU414,424 |
1 | ||
| 16028B - GASKET(FOR TURBO WATER PIPE NO.2) | ||||
| 90202-14004 |
N04C..XKU414,424 |
2 | ||
| 16028B - GASKET(FOR TURBO WATER PIPE NO.2) | ||||
| 90202-14004 |
N04C..XKU414,424 |
2 | ||
| 16028C - RING, O(FOR TURBO WATER PIPE) | ||||
| 90301-09006 |
N04C..XKU414,424 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-78020 |
N04C..XKU414,424 |
1 | ||
| 16206A - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16206-78030 |
N04C..XKU414,424 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 90034-45092 |
N04C..XKU414,424 長さ=61 |
1 | ||
| 16261-78170 |
N04C..XKU414,424 長さ=59 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90034-67027 |
N04C..XKU414,424 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90034-67027 |
N04C..XKU414,424 |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 90034-45091 |
N04C..XKU414,424 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90034-67032 |
N04C..XKU414,424 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90034-67032 |
N04C..XKU414,424 |
2 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 90034-45083 |
N04C..XKU414,424 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 90034-45093 |
N04C..XKU414,424 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90034-67032 |
N04C..XKU414,424 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90034-67032 |
N04C..XKU414,424 |
2 | ||
| 16269 - SUPPORT, WATER BY-PASS PIPE | ||||
| 16269-78010 |
N04C..XKU414,424 |
1 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-78070 |
N04C..XKU414,424 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90038-33013 |
N04C..XKU414,424 *WAX 82−95 |
1 | ||
| 90038-33015 |
N04C..XKU414,424 *WAX 82−95 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16545-78010 |
N04C..XKU414,424 |
1 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16306-78010 |
N04C..XKU414,424 |
1 | ||
| 16332A - RING, O(FOR WATER OUTLET PIPE) | ||||
| 90033-01064 |
N04C..XKU414,424 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-78020 |
N04C..XKU414,424 |
1 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01068 |
N04C..XKU414,424 |
2 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01068 |
N04C..XKU414,424 |
2 | ||
| 16333E - PLUG, DRAIN COCK | ||||
| 90910-09080 |
N04C..XKU414,424 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-78030 |
N04C..XKU414,424 |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-78060 |
N04C..XKU414,424 |
1 | ||
| Common parts | ||||
| 90031-05048 | ||||
| 90031-05124 | ||||
| 90031-05130 | ||||
| 90031-05132 | ||||
| 90031-05143 | ||||
| 90031-75001 | ||||
| 90034-68028 | ||||
| 91651-B0825 | ||||
| 96732-31040 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1701 | ||||
| 8716 | ||||

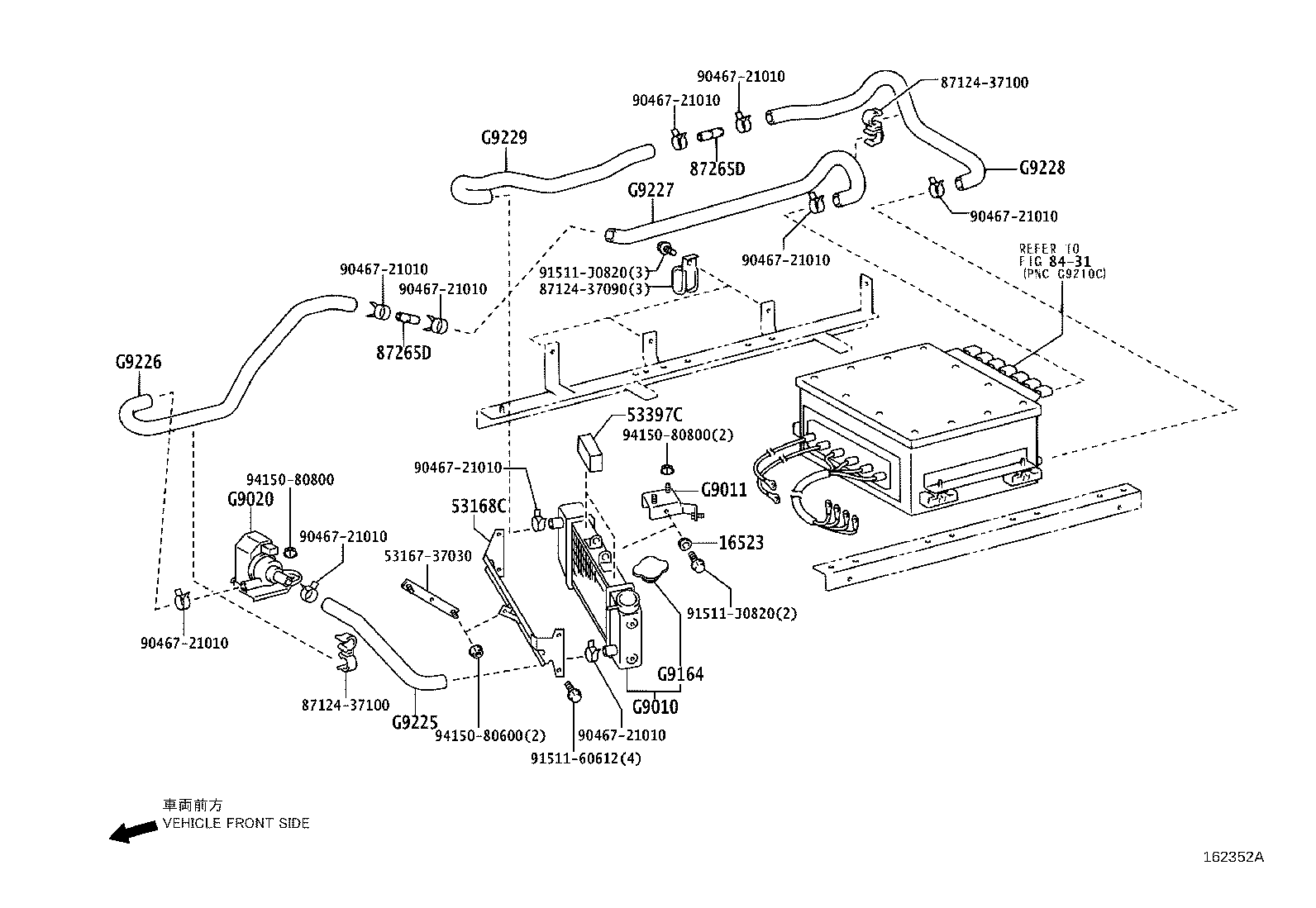

ILLUST NO. 3 OF 3(0407-0610)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16523 - CUSHION, SUB-RADIATOR SUPPORT | ||||
| 71467-37010 |
N04C..XKU414,424 |
2 | ||
| 53168C - BRACKET, RADIATOR BRACE ROD | ||||
| 53168-37020 |
XKU414,424 |
1 | ||
| 53397C - SEAL, RADIATOR, UPPER | ||||
| 53397-37010 |
XKU414,424 |
2 | ||
| 87265D - CONNECTOR, HEATER WATER HOSE | ||||
| 87265-35190 |
XKU414,424 |
2 | ||
| 87265D - CONNECTOR, HEATER WATER HOSE | ||||
| 87265-35190 |
XKU414,424 |
2 | ||
| G9010 - RADIATOR ASSY, INVERTER | ||||
| G9010-89101 |
XKU414,424 |
1 | ||
| G9011 - BRACKET SUB-ASSY, INVERTER RADIATOR | ||||
| G9011-89101 |
XKU414,424 |
1 | ||
| G9011-89102 |
XKU414,424 |
1 | ||
| G9020 - PUMP ASSY,HV WATER, NO.1 | ||||
| G9020-47021 |
XKU414,424 |
1 | ||
| G9020-47020 |
XKU414,424 |
1 | ||
| G9164 - CAP, INVERTER RADIATOR | ||||
| G9164-89101 |
XKU414,424 |
1 | ||
| G9225 - HOSE, INVERTER COOLING, NO.1 | ||||
| G9225-89101 |
XKU414,424 |
1 | ||
| G9226 - HOSE, INVERTER COOLING, NO.2 | ||||
| G9226-89102 |
XKU414,424 |
1 | ||
| G9227 - HOSE, INVERTER COOLING, NO.3 | ||||
| G9227-89102 |
XKU414,424 |
1 | ||
| G9228 - HOSE, INVERTER COOLING, NO.4 | ||||
| G9228-89102 |
XKU414,424 |
1 | ||
| G9229 - HOSE, INVERTER COOLING, NO.5 | ||||
| G9229-89102 |
XKU414,424 |
1 | ||
| Common parts | ||||
| 53167-37030 | ||||
| 87124-37090 | ||||
| 87124-37100 | ||||
| 90467-21010 | ||||
| 91511-60612 | ||||
| 91511-J0820 | ||||
| 94150-80600 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 8431 | ||||

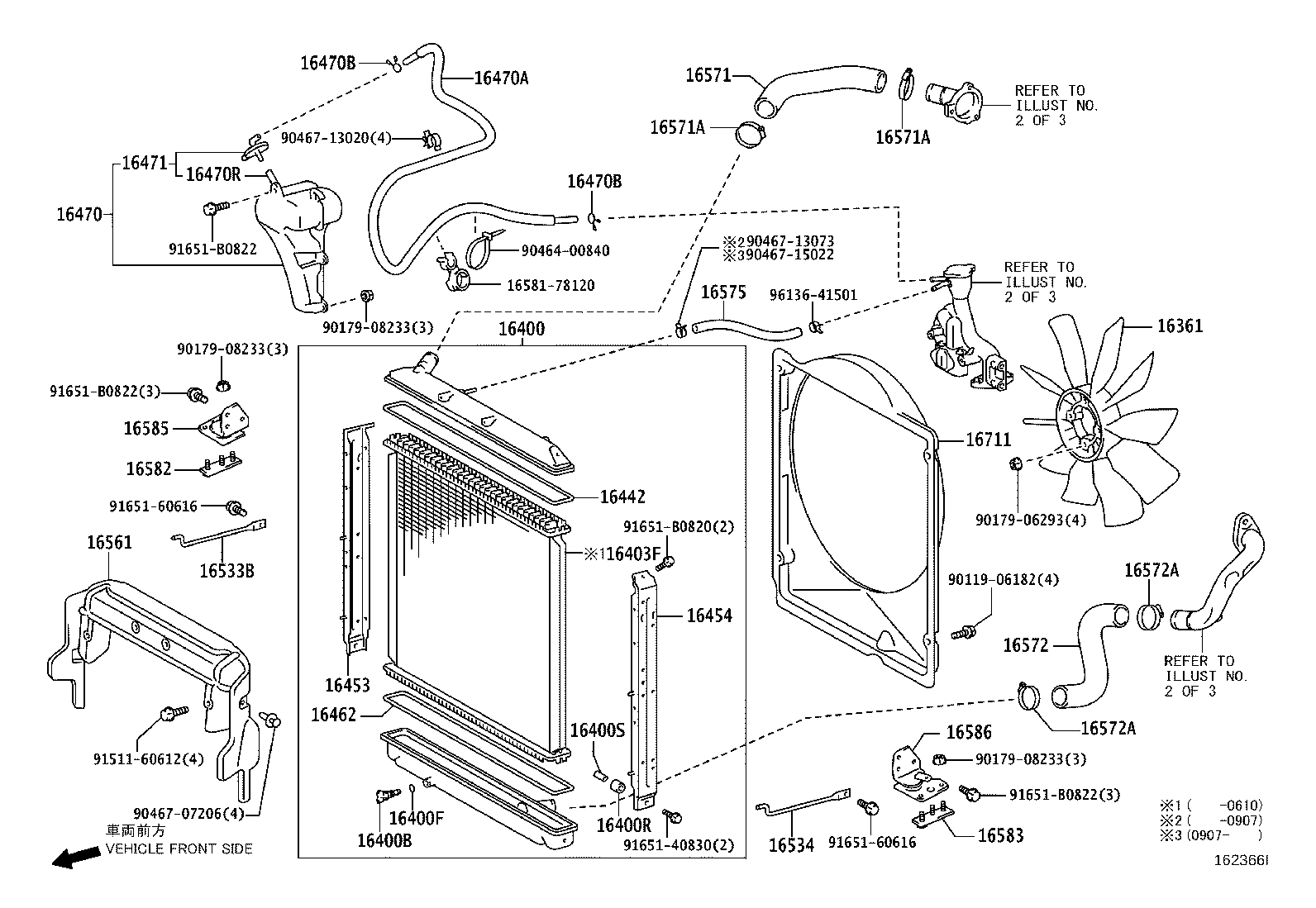

ILLUST NO. 1 OF 3(0310- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-78100 |
N04C..XKU414,424 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78270 |
N04C..XKU414,424 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
N04C..XKU414,424 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
N04C..XKU414,424 |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-78100 |
N04C..XKU414,424 |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-78100 |
N04C..XKU414,424 |
2 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-78270 |
N04C..XKU414,424 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-78100 |
N04C..XKU414,424 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-78270 |
N04C..XKU414,424 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-78270 |
N04C..XKU414,424 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-78100 |
N04C..XKU414,424 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78010 |
N04C..XKU414,424 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78320 |
N04C..XKU414,424 |
1 | ||
| 16567-78240 |
N04C..XKU414,424 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XKU414,424 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XKU414,424 |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C..XKU414,424 長さ=600 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78010 |
N04C..XKU414,424 |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-78040 |
N04C..XKU414,424 |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-78040 |
N04C..XKU414,424 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-78090 |
N04C..XKU414,424 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-78130 |
N04C..XKU414,424 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-55014 |
N04C..XKU414,424 |
2 | ||
| 90460-52003 |
N04C..XKU414,424 |
2 | ||
| 16581-78140 |
N04C..XKU414,424 |
2 | ||
| 90460-55014 |
N04C..XKU414,424 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-55014 |
N04C..XKU414,424 |
2 | ||
| 90460-52003 |
N04C..XKU414,424 |
2 | ||
| 16581-78140 |
N04C..XKU414,424 |
2 | ||
| 90460-55014 |
N04C..XKU414,424 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-78170 |
N04C..XKU414,424 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-55014 |
N04C..XKU414,424 |
2 | ||
| 90460-55014 |
N04C..XKU414,424 |
2 | ||
| 16581-78140 |
N04C..XKU414,424 |
2 | ||
| 90460-52003 |
N04C..XKU414,424 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-55014 |
N04C..XKU414,424 |
2 | ||
| 90460-55014 |
N04C..XKU414,424 |
2 | ||
| 16581-78140 |
N04C..XKU414,424 |
2 | ||
| 90460-52003 |
N04C..XKU414,424 |
2 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-78050 |
N04C..XKU414,424 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-78040 |
N04C..XKU414,424 |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78040 |
N04C..XKU414,424 |
1 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-78040 |
N04C..XKU414,424 |
1 | ||
| 16586 - BRACKET, RADIATOR, NO.4 | ||||
| 16586-78030 |
N04C..XKU414,424 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78120 |
N04C..XKU414,424 |
1 | ||
| 16711-78121 |
N04C..XKU414,424 |
1 | ||
| Common parts | ||||
| 16581-78120 | ||||
| 90119-06182 | ||||
| 90179-06293 | ||||
| 90179-08233 | ||||
| 90464-00840 | ||||
| 90467-07206 | ||||
| 90467-13020 | ||||
| 90467-13073 | ||||
| 90467-15022 | ||||
| 91511-60612 | ||||
| 91651-40830 | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 96136-41501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
