XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310-0610)

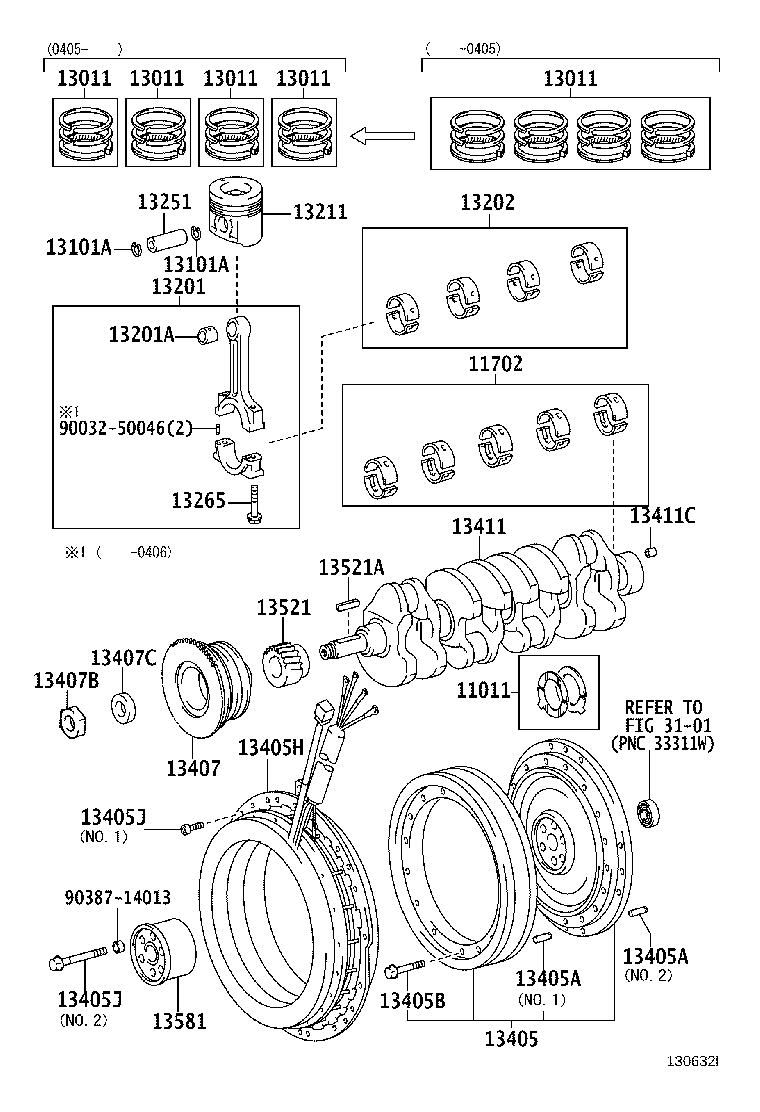

Click highlighted areas on diagram

diagram 11011 11702 13011 13011 13011 13011 13011 13101A 13101A 13201 13201A 13202 13211 13251 13265 13405 13405A 13405A 13405B 13405H 13405J 13405J 13407 13407B 13407C 13411 13411C 13521 13521A 13581 3101 9003250046 9038714013
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-78010

N04C..XKU414,424

STD

 1
11702 - BEARING SET, CRANKSHAFT
11708-78010

N04C..XKU414,424

U/S 0.25

 1
11701-78100

N04C..XKU414,424

STD

 1
11708-78030

N04C..XKU414,424

U/S 0.75

 1
11708-78040

N04C..XKU414,424

U/S 1.00

 1
11708-78020

N04C..XKU414,424

U/S 0.50

 1
13011 - RING SET, PISTON
13011-78080

N04C..XKU414,424

STD

 1
13011-78230

N04C..XKU414,424

STD

 4
13011-78190

N04C..XKU414,424

STD

 4
13011 - RING SET, PISTON
13011-78080

N04C..XKU414,424

STD

 1
13011-78230

N04C..XKU414,424

STD

 4
13011-78190

N04C..XKU414,424

STD

 4
13011 - RING SET, PISTON
13011-78080

N04C..XKU414,424

STD

 1
13011-78230

N04C..XKU414,424

STD

 4
13011-78190

N04C..XKU414,424

STD

 4
13011 - RING SET, PISTON
13011-78080

N04C..XKU414,424

STD

 1
13011-78230

N04C..XKU414,424

STD

 4
13011-78190

N04C..XKU414,424

STD

 4
13011 - RING SET, PISTON
13011-78080

N04C..XKU414,424

STD

 1
13011-78230

N04C..XKU414,424

STD

 4
13011-78190

N04C..XKU414,424

STD

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90035-21020

N04C..XKU414,424

 8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90035-21020

N04C..XKU414,424

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-78030

N04C..XKU414,424

 4
13260-78060

N04C..XKU414,424

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
13271-89102

N04C..XKU414,424

 4
13202 - BEARING SET, CONNECTING ROD
13041-78060

N04C..XKU414,424

STD

 1
13211 - PISTON
13211-78170

N04C..XKU414,424

 4
13251 - PIN, PISTON
13251-89101

N04C..XKU414,424

 4
13265 - BOLT, CONNECTING ROD
13265-89103

N04C..XKU414,424

 8
13405 - FLYWHEEL SUB-ASSY
G1110-37010

N04C..XKU414,424

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90032-50058

N04C..XKU414,424

NO.1

 2
90250-10008

N04C..XKU414,424

長さ=24,外径=10,NO.2

 2
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90032-50058

N04C..XKU414,424

NO.1

 2
90250-10008

N04C..XKU414,424

長さ=24,外径=10,NO.2

 2
13405B - BOLT, FLYWHEEL SETTING
90031-19144

N04C..XKU414,424

 16
13405H - STATOR ASSY(FOR FLYWHEEL)
G1140-37012

N04C..XKU414,424

 1
13405J - BOLT(FOR FLYWHEEL)
90031-05116

N04C..XKU414,424

NO.2

 6
90031-09079

N04C..XKU414,424

NO.1

 4
13405J - BOLT(FOR FLYWHEEL)
90031-05116

N04C..XKU414,424

NO.2

 6
90031-09079

N04C..XKU414,424

NO.1

 4
13407 - DAMPER SUB-ASSY, CRANKSHAFT
13470-78100

N04C..XKU414,424

 1
13407B - NUT, HEXAGON(FOR CRANKSHAFT DAMPER)
90170-27001

N04C..XKU414,424

 1
13407C - SPACER(FOR CRANKSHAFT DAMPER)
90560-27006

N04C..XKU414,424

 1
13411 - CRANKSHAFT
13411-78011

N04C..XKU414,424

 1
13411C - PIN, STRAIGHT(FOR CRANKSHAFT)
90387-14013

N04C..XKU414,424

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-78090

N04C..XKU414,424

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90281-06001

N04C..XKU414,424

 1
13581 - SHAFT, IDLE GEAR, NO.1
90035-60083

N04C..XKU414,424

 1
Common parts
90032-50046
90387-14013
Linked diagrams
3101
