XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310-0610)

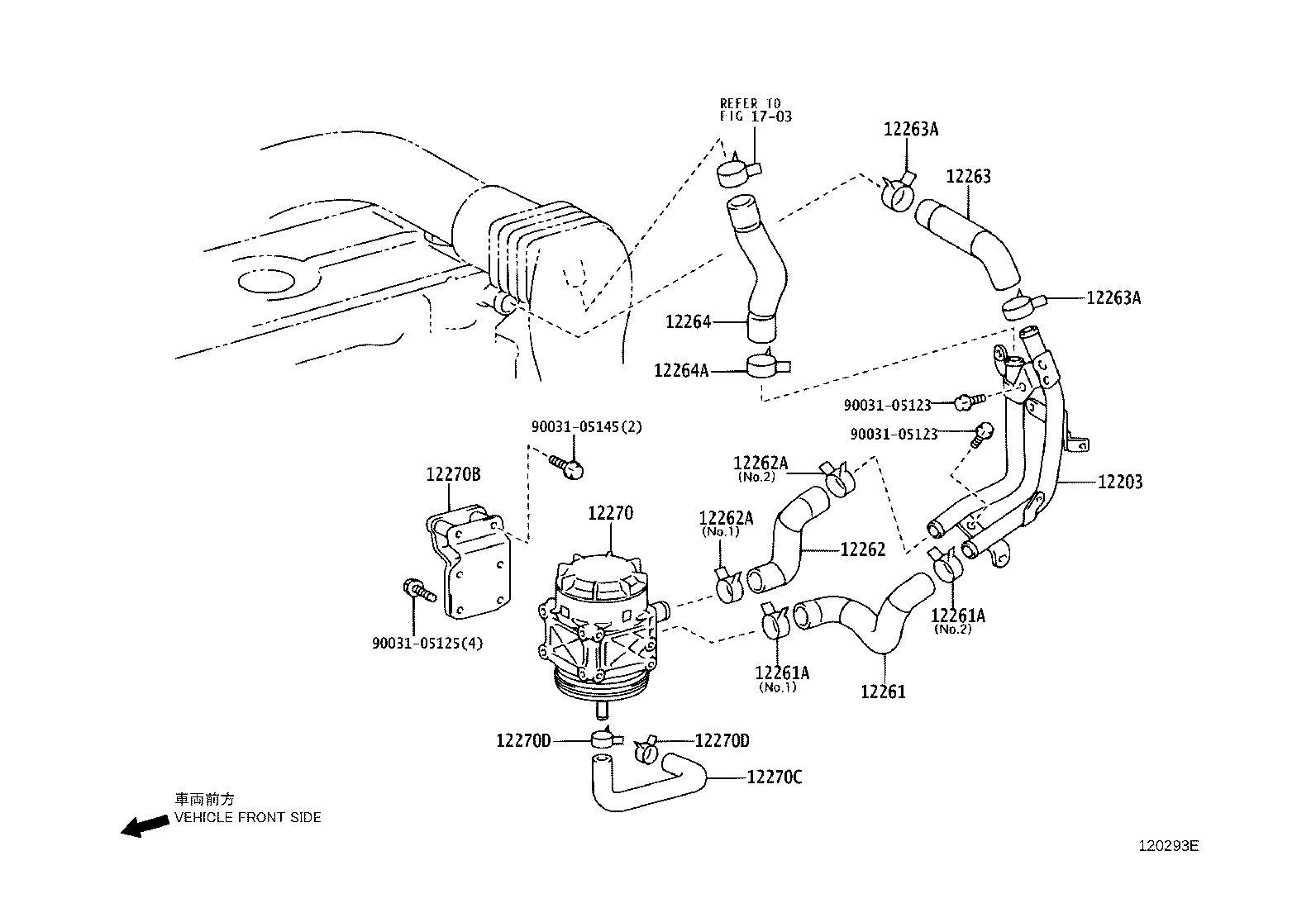

Click highlighted areas on diagram

diagram 12203 12261 12261A 12261A 12262 12262A 12262A 12263 12263A 12263A 12264 12264A 12270 12270B 12270C 12270D 12270D 1703 9003105123 9003105123 9003105125 9003105145
Part # Description Qty Price
12203 - PIPE SUB-ASSY, VENTILATION
12203-78050

N04C..XKU414,424

 1
12261 - HOSE, VENTILATION
12261-78180

N04C..XKU414,424

 1
12261-78020

N04C..XKU414,424

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90034-67018

N04C..XKU414,424

NO.1

 1
90034-67029

N04C..XKU414,424

NO.2

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90034-67018

N04C..XKU414,424

NO.1

 1
90034-67029

N04C..XKU414,424

NO.2

 1
12262 - HOSE, VENTILATION, NO.2
12261-78030

N04C..XKU414,424

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90034-67029

N04C..XKU414,424

NO.2

 1
90034-67018

N04C..XKU414,424

NO.1

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90034-67029

N04C..XKU414,424

NO.2

 1
90034-67018

N04C..XKU414,424

NO.1

 1
12263 - HOSE, VENTILATION, NO.3
12261-78040

N04C..XKU414,424

 1
12263A - CLIP(FOR VENTILATION HOSE)
90034-67018

N04C..XKU414,424

 2
12263A - CLIP(FOR VENTILATION HOSE)
90034-67018

N04C..XKU414,424

 2
12264 - HOSE, VENTILATION, NO.4
12261-78080

N04C..XKU414,424

 1
12264A - CLIP(FOR VENTILATION HOSE)
90034-67018

N04C..XKU414,424

 1
12270 - SEPARATOR ASSY, OIL
12270-78011

N04C..XKU414,424

 1
12270B - BRACKET(FOR OIL SEPARATOR)
15609-78010

N04C..XKU414,424

 1
12270C - HOSE, OIL(FOR OIL SEPARATOR)
29603-78020

N04C..XKU414,424

 1
12270D - CLIP(FOR OIL SEPARATOR HOSE)
90034-67028

N04C..XKU414,424

 2
12270D - CLIP(FOR OIL SEPARATOR HOSE)
90034-67028

N04C..XKU414,424

 2
Common parts
90031-05123
90031-05125
90031-05145
Linked diagrams
1703
