XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv
Production
Oct 2003
-
Oct 2006
Engine
N04C
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0310-0610)

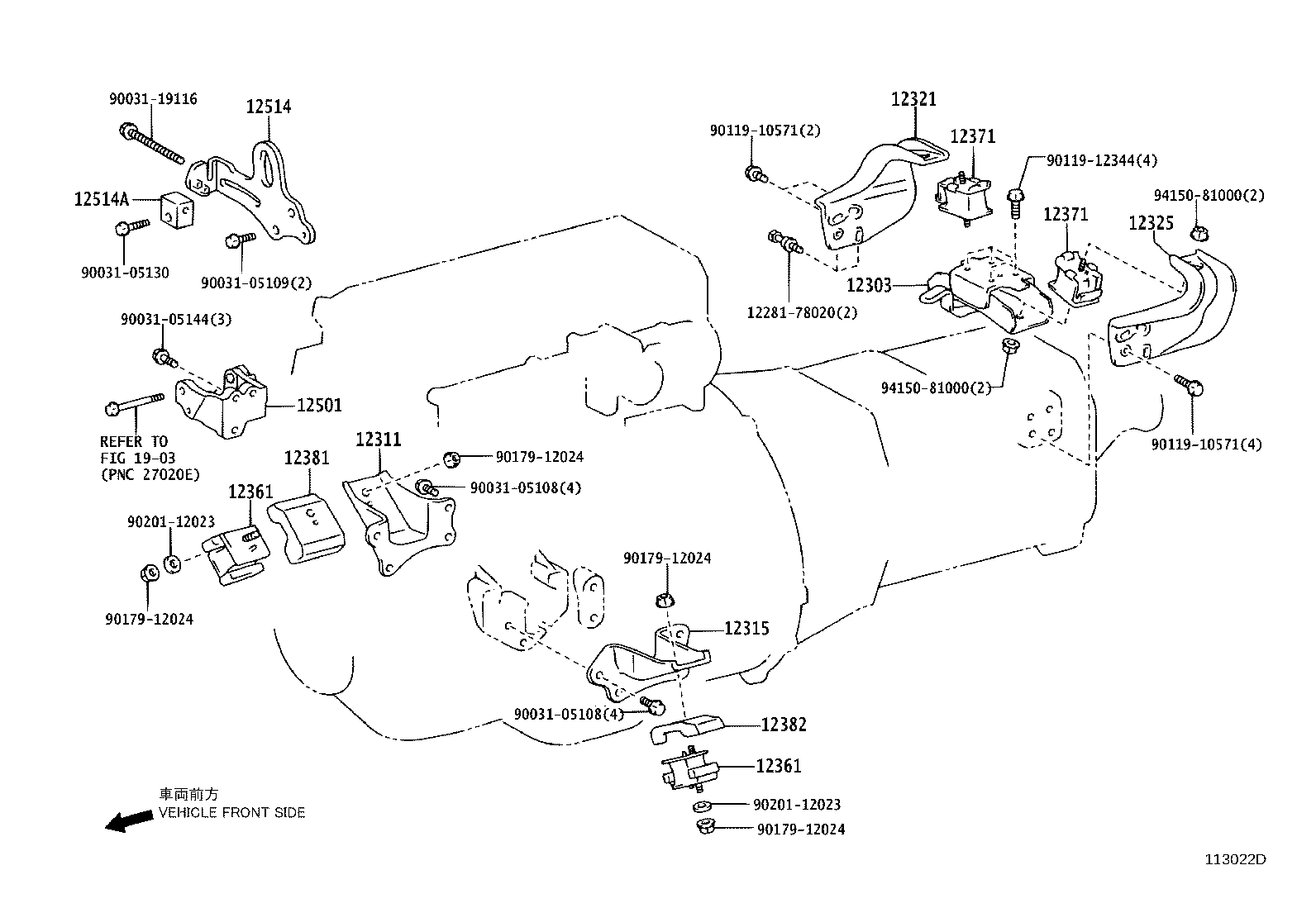

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12303-78030 |
N04C..XKU414,424 |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-78060 |
N04C..XKU414,424 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-78040 |
N04C..XKU414,424 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78140 |
N04C..XKU414,424 |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-78120 |
N04C..XKU414,424 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-58130 |
N04C..XKU414,424 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-58130 |
N04C..XKU414,424 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
N04C..XKU414,424 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
N04C..XKU414,424 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-78030 |
N04C..XKU414,424 |
1 | ||
| 12382 - STABILIZER, ENGINE MOUNTING, LH | ||||
| 12381-78030 |
N04C..XKU414,424 |
1 | ||
| 12501 - BRACKET SUB-ASSY, ALTERNATOR | ||||
| 12501-78071 |
N04C..XKU414,424 |
1 | ||
| 12501-78130 |
N04C..XKU414,424 |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-78082 |
N04C..XKU414,424 |
1 | ||
| 12514A - SLIDER, FAN BELT ADJUSTING | ||||
| 12519-78020 |
N04C..XKU414,424 |
1 | ||
| Common parts | ||||
| 12281-78020 | ||||
| 90031-05108 | ||||
| 90031-05109 | ||||
| 90031-05130 | ||||
| 90031-05144 | ||||
| 90031-19116 | ||||
| 90119-10571 | ||||
| 90119-12344 | ||||
| 90179-12024 | ||||
| 90201-12023 | ||||
| 94150-81000 | ||||
| Linked diagrams | ||||
| 1903 | ||||
