XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv
Production
Oct 2003
-
Oct 2006
Engine
N04C
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0310-0610)

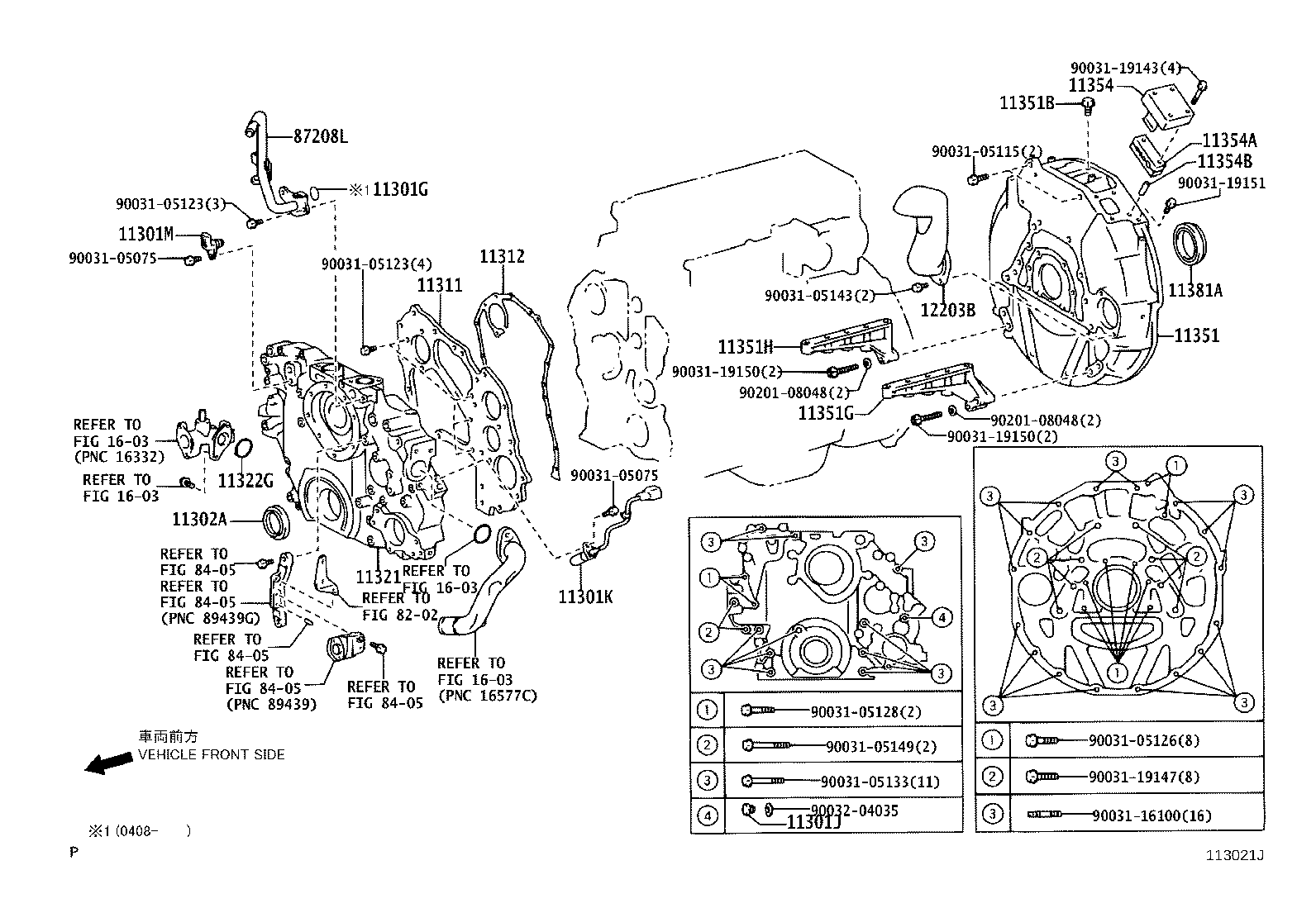

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301G - RING, O(FOR TIMING GEAR CASE, UPPER) | ||||
| 90033-01086 |
N04C..XKU414,424 |
1 | ||
| 11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE) | ||||
| 90033-41004 |
N04C..XKU414,424 |
1 | ||
| 11301K - SENSOR, CRANK POSITION | ||||
| 19311-78060 |
N04C..XKU414,424 |
1 | ||
| 11301M - SENSOR, CAM POSITION | ||||
| 19311-78030 |
N04C..XKU414,424 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90033-11040 |
N04C..XKU414,424 |
1 | ||
| 11311 - PLATE, FRONT END | ||||
| 11429-78020 |
N04C..XKU414,424 |
1 | ||
| 13596-78010 |
N04C..XKU414,424 |
1 | ||
| 11312 - GASKET, FRONT END PLATE | ||||
| 11312-78011 |
N04C..XKU414,424 |
1 | ||
| 11321 - CASE, TIMING GEAR | ||||
| 11321-78085 |
N04C..XKU414,424 |
1 | ||
| 11321-78083 |
N04C..XKU414,424 |
1 | ||
| 11321-78081 |
N04C..XKU414,424 |
1 | ||
| 11321-78086 |
N04C..XKU414,424 |
1 | ||
| 11321-78084 |
N04C..XKU414,424 |
1 | ||
| 11322G - RING, O(FOR TIMING GEAR COVER) | ||||
| 90033-01064 |
N04C..XKU414,424 |
1 | ||
| 11351 - HOUSING, FLYWHEEL | ||||
| 11351-78093 |
N04C..XKU414,424 |
1 | ||
| 11351B - PLUG, HOLE(FOR FLYWHEEL HOUSING) | ||||
| 90033-41004 |
N04C..XKU414,424 |
4 | ||
| 11351G - STAY, LH(FOR FLYWHEEL HOUSING) | ||||
| 11353-78040 |
N04C..XKU414,424 |
1 | ||
| 11351H - STAY, RH(FOR FLYWHEEL HOUSING) | ||||
| 11353-78030 |
N04C..XKU414,424 |
1 | ||
| 11354 - SEAL, FLYWHEEL HOUSING DUST | ||||
| 11354-78081 |
N04C..XKU414,424 |
1 | ||
| 11354A - SEAL(FOR FLYWHEEL HOUSING) | ||||
| 90033-19010 |
N04C..XKU414,424 |
1 | ||
| 11354B - SPACER(FOR FLYWHEEL HOUSING) | ||||
| 90035-60084 |
N04C..XKU414,424 |
2 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-99002 |
N04C..XKU414,424 |
1 | ||
| 12203B - PIPE SUB-ASSY, VENTILATION | ||||
| 12203-78101 |
N04C..XKU414,424 |
1 | ||
| 87208L - PIPE SUB-ASSY, WATER | ||||
| 87208-37420 |
XKU414,424 |
1 | ||
| Common parts | ||||
| 90031-05075 | ||||
| 90031-05115 | ||||
| 90031-05123 | ||||
| 90031-05126 | ||||
| 90031-05128 | ||||
| 90031-05133 | ||||
| 90031-05143 | ||||
| 90031-05149 | ||||
| 90031-16100 | ||||
| 90031-19143 | ||||
| 90031-19147 | ||||
| 90031-19150 | ||||
| 90031-19151 | ||||
| 90032-04035 | ||||
| 90201-08048 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8202 | ||||
| 8405 | ||||
