XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )

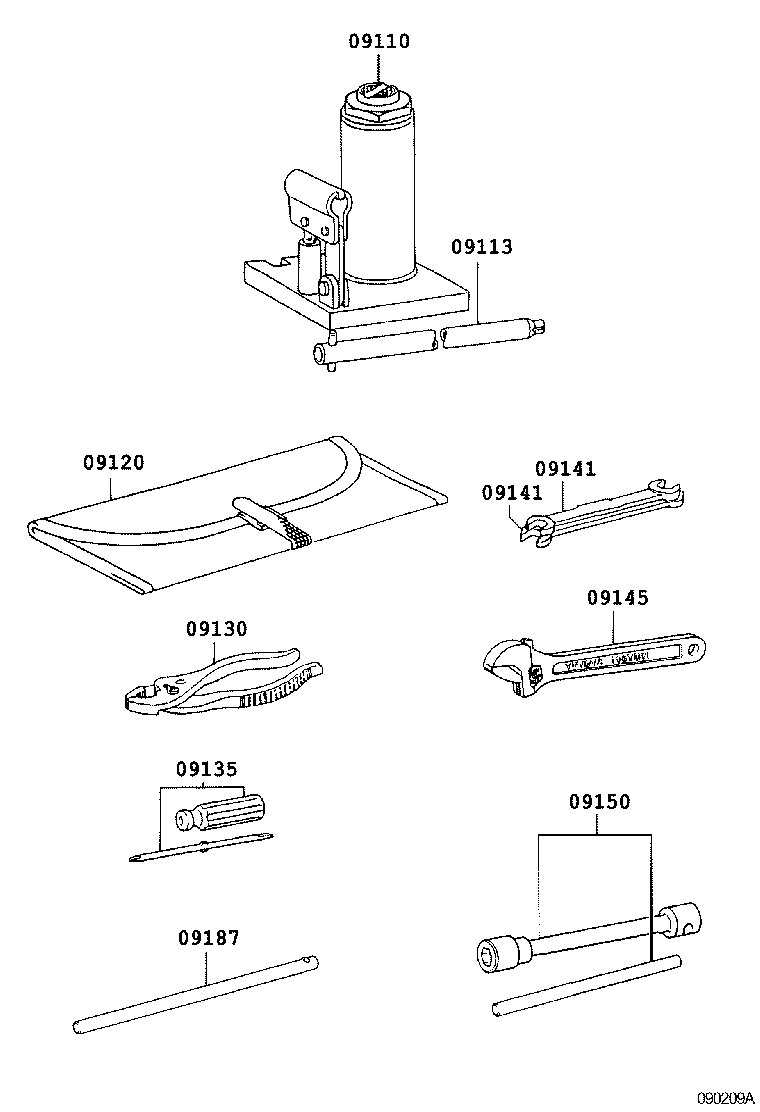

Click highlighted areas on diagram

diagram 09110 09113 09120 09130 09135 09141 09141 09145 09150 09187
Part # Description Qty Price
09110 - JACK ASSY
09111-37230

XKU414,424

 1
09111-37200

XKU414,424

 1
09113 - HANDLE, JACK
09113-37080

XKU414,424

 1
09113-37080

XKU414,424

 1
09120 - BAG, TOOL
09120-37030

XKU414,424

 1
09130 - PLIERS
99913-11500

XKU414,424

 1
09135 - DRIVER, SCREW
99915-10700

XKU414,424

 1
09141 - SPANNER
99914-10810

XKU414,424

8 X 10

 1
99914-11214

XKU414,424

12 X 14

 1
09141 - SPANNER
99914-10810

XKU414,424

8 X 10

 1
99914-11214

XKU414,424

12 X 14

 1
09145 - WRENCH, MONKEY
99911-11200

XKU414,424

 1
09150 - WRENCH, HUB NUT BOX
09150-37030

XKU414,424

 1
09187 - HANDLE, SPARE WHEEL CARRIER
09187-37010

XKU414,424

 1
