XKU414-TQFMB3 (2006)
Toyota Dyna/Toyoace Hv
Production
Oct 2006
-
Aug 2009
Engine
N04C
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0610- )

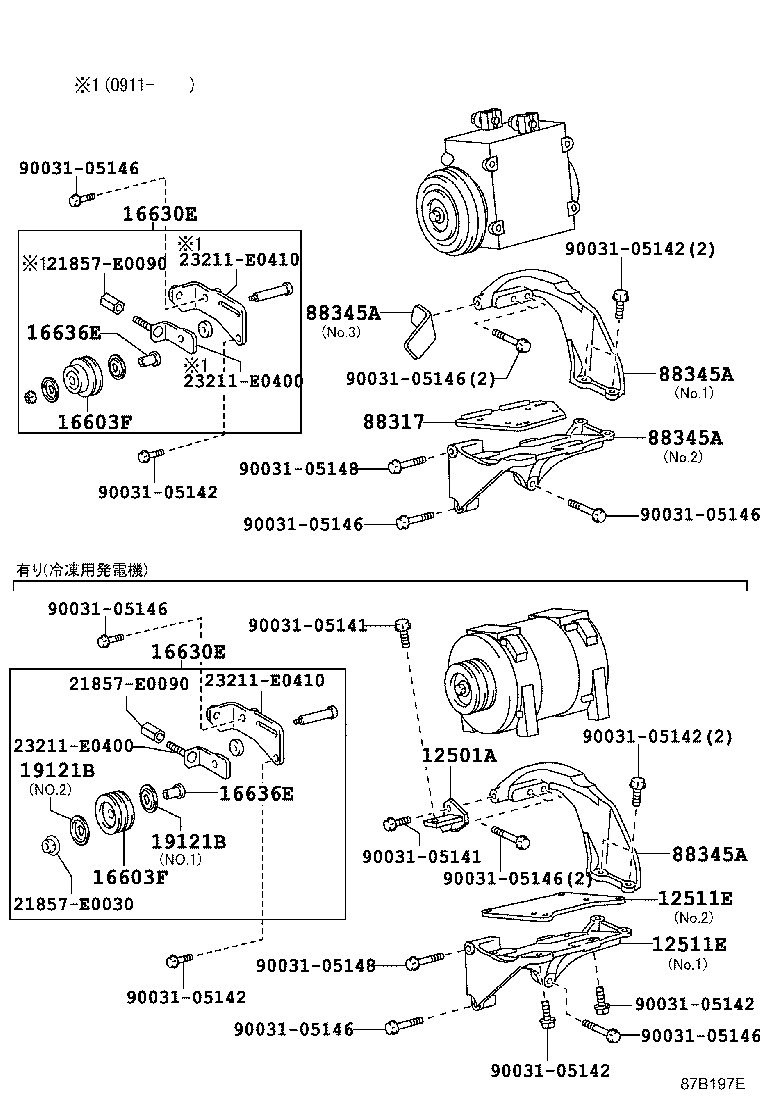

Click highlighted areas on diagram
ﾚｲﾄｳｼｬ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16603F - PULLEY SUB-ASSY, IDLER | ||||
| 16603-78020 |
N04C..XKU414,424 |
1 | ||
| 16603F - PULLEY SUB-ASSY, IDLER | ||||
| 16603-78020 |
N04C..XKU414,424 |
1 | ||
| 16630E - PULLEY ASSY, IDLER | ||||
| 16630-78071 |
N04C..XKU414,424 |
1 | ||
| 16630E - PULLEY ASSY, IDLER | ||||
| 16630-78071 |
N04C..XKU414,424 |
1 | ||
| 88317 - SPACER, COOLER COMPRESSOR | ||||
| 88317-37030 |
XKU414,424 |
1 | ||
| 88317-37030 |
XKU414,424 |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37170 |
XKU414,424 NO.1 |
1 | ||
| 88345-37180 |
XKU414,424 NO.2 |
1 | ||
| 88345-37180 |
XKU414,424 NO.2 |
1 | ||
| 88345-37190 |
XKU414,424 NO.3 |
1 | ||
| 88345-37190 |
XKU414,424 NO.3 |
1 | ||
| 88345-37170 |
XKU414,424 NO.1 |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37170 |
XKU414,424 NO.1 |
1 | ||
| 88345-37180 |
XKU414,424 NO.2 |
1 | ||
| 88345-37180 |
XKU414,424 NO.2 |
1 | ||
| 88345-37190 |
XKU414,424 NO.3 |
1 | ||
| 88345-37190 |
XKU414,424 NO.3 |
1 | ||
| 88345-37170 |
XKU414,424 NO.1 |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37170 |
XKU414,424 NO.1 |
1 | ||
| 88345-37180 |
XKU414,424 NO.2 |
1 | ||
| 88345-37180 |
XKU414,424 NO.2 |
1 | ||
| 88345-37190 |
XKU414,424 NO.3 |
1 | ||
| 88345-37190 |
XKU414,424 NO.3 |
1 | ||
| 88345-37170 |
XKU414,424 NO.1 |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37170 |
XKU414,424 NO.1 |
1 | ||
| 88345-37180 |
XKU414,424 NO.2 |
1 | ||
| 88345-37180 |
XKU414,424 NO.2 |
1 | ||
| 88345-37190 |
XKU414,424 NO.3 |
1 | ||
| 88345-37190 |
XKU414,424 NO.3 |
1 | ||
| 88345-37170 |
XKU414,424 NO.1 |
1 | ||
| Common parts | ||||
| 21857-E0030 | ||||
| 21857-E0090 | ||||
| 23211-E0400 | ||||
| 23211-E0410 | ||||
| 90031-05141 | ||||
| 90031-05142 | ||||
| 90031-05146 | ||||
| 90031-05148 | ||||
