XKU414-TQFMB3 (2006)

Toyota Dyna/Toyoace Hv

Production Oct 2006 - Aug 2009
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )

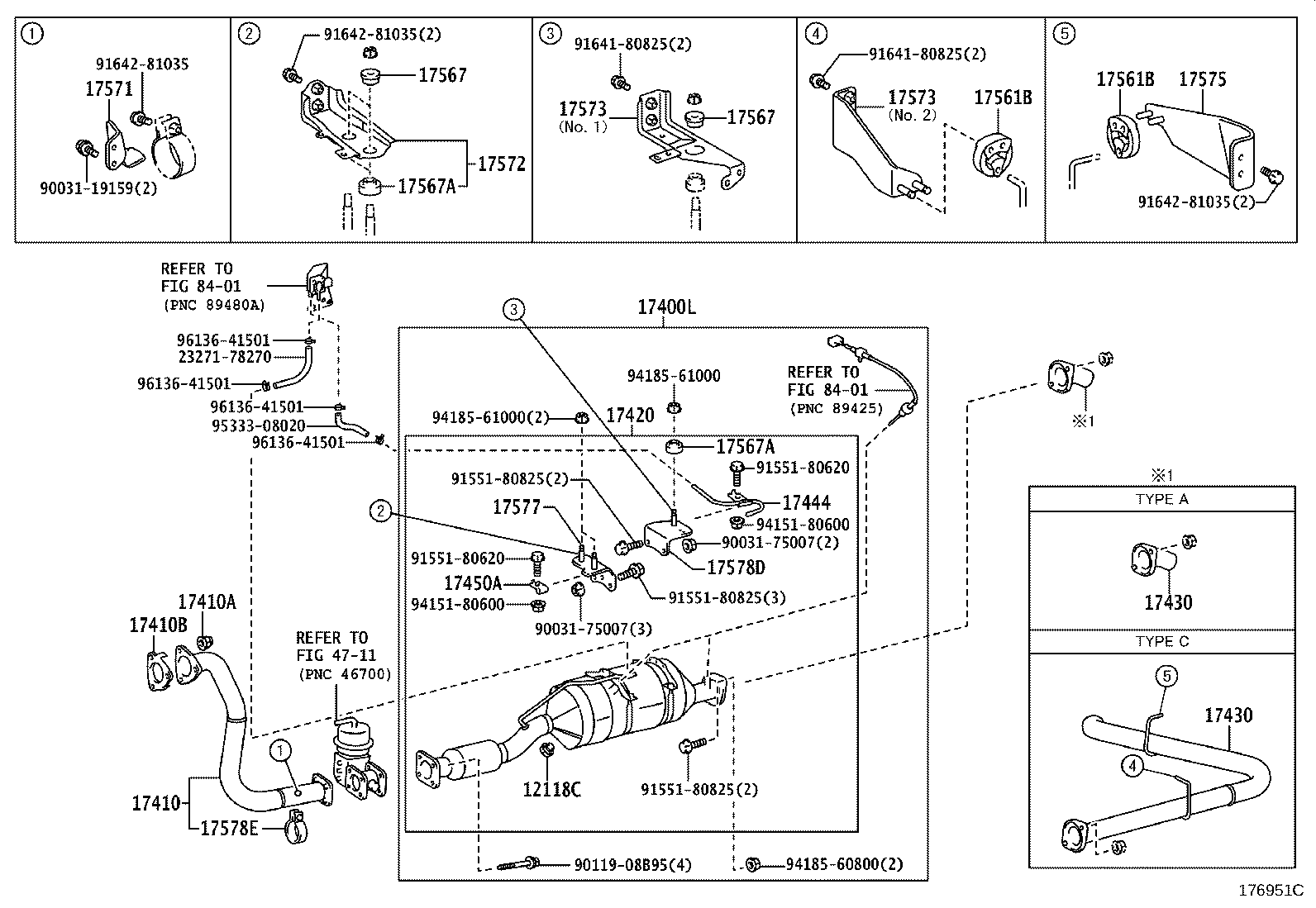

Click highlighted areas on diagram

diagram 12118C 17400L 17410 17410A 17410B 17420 17430 17430 17444 17450A 17561B 17561B 17567 17567 17567A 17567A 17571 17572 17573 17573 17575 17577 17578D 17578E 2327178270 4711 8401 8401 9003119159 9003175007 9003175007 9011908B95 9155180620 9155180620 9155180825 9155180825 9155180825 9164180825 9164180825 9164281035 9164281035 9164281035 9415180600 9415180600 9418560800 9418561000 9418561000 9533308020 9613641501 9613641501 9613641501 9613641501
Part # Description Qty Price
17400L - PIPE ASSY, EXHAUST
17400-78100

N04C..XKU414,424

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-78060

N04C..XKU414,424

 1
17401-78210

N04C..XKU414,424

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

N04C..XKU414,424

 3
17410B - GASKET, EXHAUST PIPE
90917-06087

N04C..XKU414,424

 1
90917-06087

N04C..XKU414,424

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-78500

N04C..XKU414,424

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-78880

N04C..XKU414..20T

NO.2

 1
17405-78D70

N04C..XKU414..20T

ｴｷｿﾞ-ｽﾄﾃ-ﾙﾊﾟｲﾌﾟ=ﾖｺﾀﾞｼ,TYPE C:ｲﾗｽﾄ参照

 1
17405-78870

N04C..XKU414,424

NO.1

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-78880

N04C..XKU414..20T

NO.2

 1
17405-78D70

N04C..XKU414..20T

ｴｷｿﾞ-ｽﾄﾃ-ﾙﾊﾟｲﾌﾟ=ﾖｺﾀﾞｼ,TYPE C:ｲﾗｽﾄ参照

 1
17405-78870

N04C..XKU414,424

NO.1

 1
17444 - PIPE, EXHAUST, NO.4
17444-78090

N04C..XKU414,424

 1
17450A - CLAMP, EXHAUST PIPE, NO.5
17589-78020

N04C..XKU414,424

 2
17589-78021

N04C..XKU414,424

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-73020

N04C..XKU414,424

 2
17561-73020

N04C..XKU424;N04C..XKU414..DCRTJ;N04C..XKU414..T3..DCRUE

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-73020

N04C..XKU414,424

 2
17561-73020

N04C..XKU424;N04C..XKU414..DCRTJ;N04C..XKU414..T3..DCRUE

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78040

N04C..XKU414,424

NO.2

 1
17567-78030

N04C..XKU414,424

NO.1

 2
17567-78030

N04C..XKU414,424

 2
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78040

N04C..XKU414,424

NO.2

 1
17567-78030

N04C..XKU414,424

NO.1

 2
17567-78030

N04C..XKU414,424

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78030

N04C..XKU414,424

 1
17567-78040

N04C..XKU414,424

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78030

N04C..XKU414,424

 1
17567-78040

N04C..XKU414,424

 2
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-78070

N04C..XKU414,424

NO.2

 1
17571-78060

N04C..XKU414,424

NO.1

 1
17571-78130

N04C..XKU414,424

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-78210

N04C..XKU414,424

 1
17572-78210

N04C..XKU414,424

 1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-78230

N04C..XKU414,424

NO.1

 1
17573-78240

N04C..XKU414,424

NO.2

 1
17573-78230

N04C..XKU414,424

NO.1

 1
17573-78240

N04C..XKU424;N04C..XKU414..DCRTJ;N04C..XKU414..T3..DCRUE

NO.2

 1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-78230

N04C..XKU414,424

NO.1

 1
17573-78240

N04C..XKU414,424

NO.2

 1
17573-78230

N04C..XKU414,424

NO.1

 1
17573-78240

N04C..XKU424;N04C..XKU414..DCRTJ;N04C..XKU414..T3..DCRUE

NO.2

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-78230

N04C..XKU414,424

 1
17575-78231

N04C..XKU424;N04C..XKU414..DCRTJ;N04C..XKU414..T3..DCRUE

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-78080

N04C..XKU414,424

 1
17577-78060

N04C..XKU414,424

 1
17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8
17578-78120

N04C..XKU414,424

 1
17578-78250

N04C..XKU414,424

 1
17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE)
17578-78010

N04C..XKU414,424

 1
Common parts
23271-78270
90031-19159
90031-75007
90119-08B95
91551-80620
91551-80825
91641-80825
91642-81035
94151-80600
94185-60800
94185-61000
95333-08020
96136-41501
