XKU414-TKTQB3 (2008)

Toyota Dyna/Toyoace Hv

Production Jan 2008 - Nov 2009
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0310-1010)

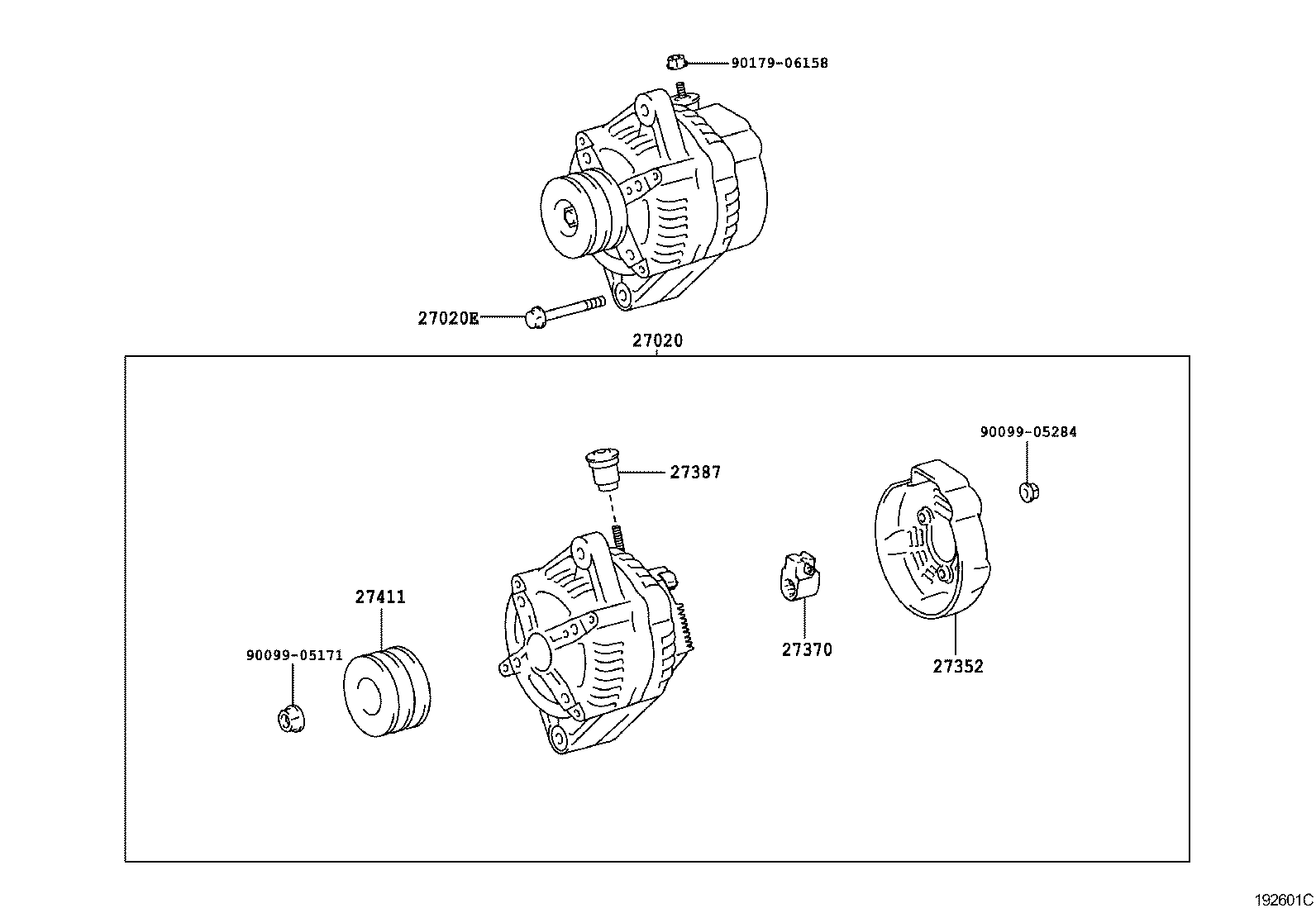

Click highlighted areas on diagram

diagram 27020 27020E 27352 27370 27387 27411 9009905171 9009905284 9017906158
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-78110

N04C..XKU414,424

24V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90031-05093

N04C..XKU414,424

 1
27352 - COVER, FRAME BRUSH
27352-89104

N04C..XKU414,424

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-58460

N04C..XKU414,424

 1
27387 - INSULATOR, TERMINAL
27387-20130

N04C..XKU414,424

 1
27411 - PULLEY, ALTERNATOR
27411-89109

N04C..XKU414,424

 1
Common parts
90099-05171
90099-05284
90179-06158
