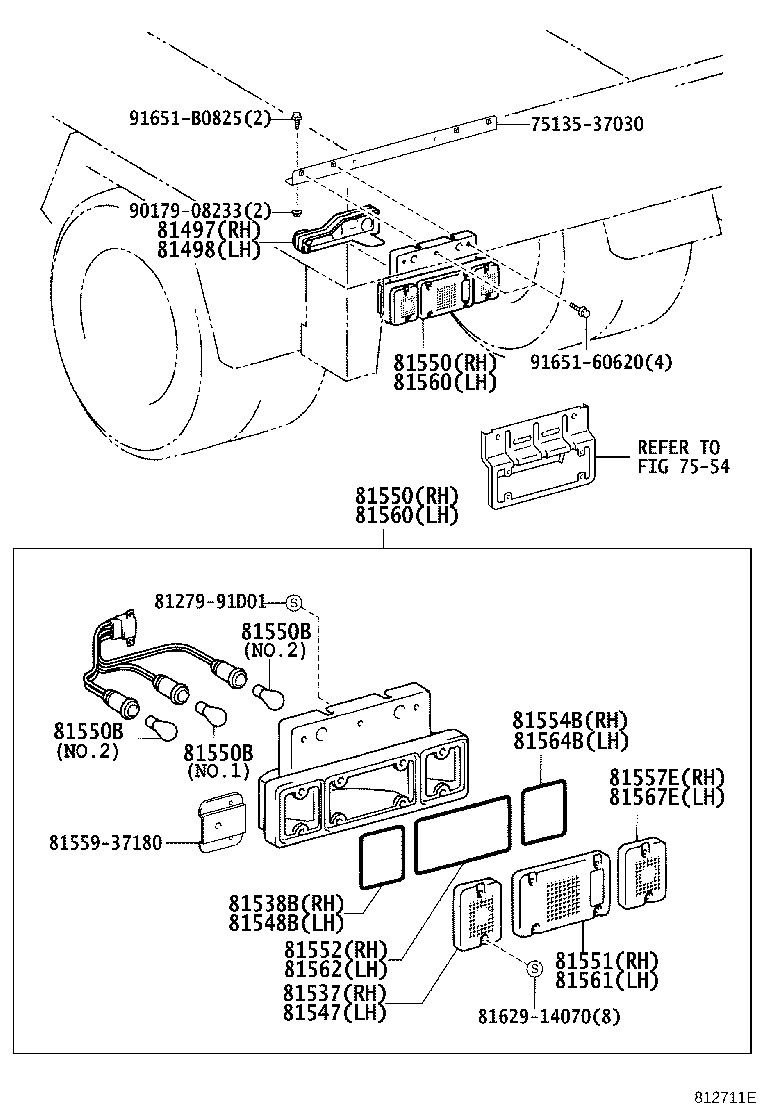

XKU414-TKFQW3 (2003)
Toyota Dyna/Toyoace Hv
(0310- )DCRL
TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81497 - COVER, REAR COMBINATION LAMP, RH | ||||
| 81497-37011 |
XKU414,424 |
1 | ||
| 81498 - COVER, REAR COMBINATION LAMP, LH | ||||
| 81498-37011 |
XKU414,424 |
1 | ||
| 81537 - LENS, REAR COMBINATION LAMP, NO.3 RH | ||||
| 81537-37120 |
XKU414,424 |
1 | ||
| 81538B - GASKET, REAR COMBINATION LAMP, NO.3 RH | ||||
| 81538-37120 |
XKU414,424 |
1 | ||
| 81547 - LENS, REAR COMBINATION LAMP, NO.3 LH | ||||
| 81547-37130 |
XKU414,424 |
1 | ||
| 81548B - GASKET, REAR COMBINATION LAMP, NO.3 LH | ||||
| 81538-37120 |
XKU414,424 |
1 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-37240 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81550-37120 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81550-37180 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81550-37050 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-37240 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81550-37120 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81550-37180 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81550-37050 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-16027 |
XKU414,424 24V 25/10W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 99134-12250 |
XKU414,424 24V 25W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
4 | ||
| 99134-11250 |
XKU414,424 24V 25W,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
4 | ||
| 90981-16014 |
XKU414,424 24V 21W,NO.2 |
4 | ||
| 90981-16027 |
XKU414,424 24V 25/10W,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 90981-16015 |
XKU414,424 24V 21/5W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-16027 |
XKU414,424 24V 25/10W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 99134-12250 |
XKU414,424 24V 25W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
4 | ||
| 99134-11250 |
XKU414,424 24V 25W,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
4 | ||
| 90981-16014 |
XKU414,424 24V 21W,NO.2 |
4 | ||
| 90981-16027 |
XKU414,424 24V 25/10W,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 90981-16015 |
XKU414,424 24V 21/5W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-16027 |
XKU414,424 24V 25/10W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 99134-12250 |
XKU414,424 24V 25W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
4 | ||
| 99134-11250 |
XKU414,424 24V 25W,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
4 | ||
| 90981-16014 |
XKU414,424 24V 21W,NO.2 |
4 | ||
| 90981-16027 |
XKU414,424 24V 25/10W,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 90981-16015 |
XKU414,424 24V 21/5W,NO.1 |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-37110 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81551-37120 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81551-60451 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81551-60442 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81552-95400 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81552-37120 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81554B - GASKET, REAR COMBINATION LAMP BODY, NO.2 RH | ||||
| 81554-37120 |
XKU414,424 |
1 | ||
| 81557E - LENS, REAR COMBINATION LAMP, RH NO.2 | ||||
| 81557-37120 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-37130 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81560-37240 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81560-37070 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81560-37180 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-37130 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81560-37240 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81560-37070 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81560-37180 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-37130 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81561-60372 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81561-60381 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81561-37120 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81552-37120 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81552-95400 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81564B - GASKET, REAR COMBINATION LAMP BODY, NO.2 LH | ||||
| 81554-37120 |
XKU414,424 |
1 | ||
| 81567E - LENS, REAR COMBINATION LAMP, LH NO.2 | ||||
| 81557-37120 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 75135-37030 | ||||
| 81279-91D01 | ||||
| 81559-37180 | ||||
| 81629-14070 | ||||
| 90179-08233 | ||||
| 91651-60620 | ||||
| 91651-B0825 | ||||
| Linked diagrams | ||||
| 7554 | ||||

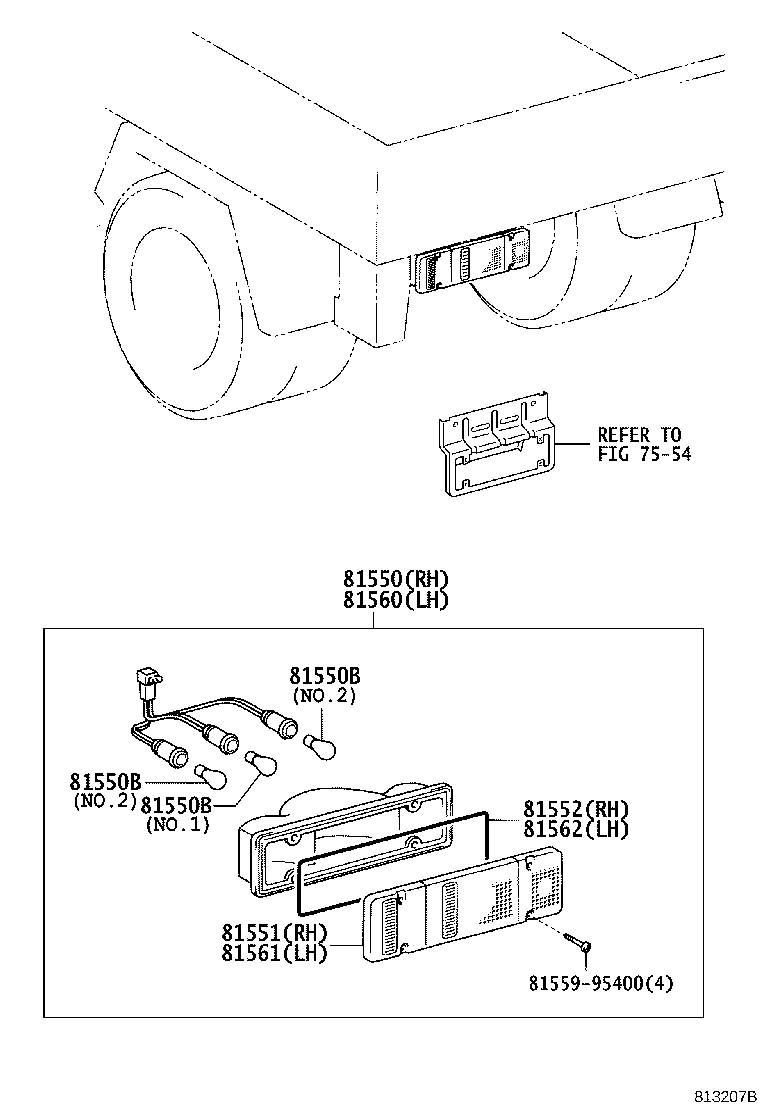

(0406-0505)
TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-37240 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81550-37120 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81550-37180 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81550-37050 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-16027 |
XKU414,424 24V 25/10W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 99134-12250 |
XKU414,424 24V 25W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
4 | ||
| 99134-11250 |
XKU414,424 24V 25W,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
4 | ||
| 90981-16014 |
XKU414,424 24V 21W,NO.2 |
4 | ||
| 90981-16027 |
XKU414,424 24V 25/10W,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 90981-16015 |
XKU414,424 24V 21/5W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-16027 |
XKU414,424 24V 25/10W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 99134-12250 |
XKU414,424 24V 25W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
4 | ||
| 99134-11250 |
XKU414,424 24V 25W,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
4 | ||
| 90981-16014 |
XKU414,424 24V 21W,NO.2 |
4 | ||
| 90981-16027 |
XKU414,424 24V 25/10W,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 90981-16015 |
XKU414,424 24V 21/5W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-16027 |
XKU414,424 24V 25/10W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 99134-12250 |
XKU414,424 24V 25W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
4 | ||
| 99134-11250 |
XKU414,424 24V 25W,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
4 | ||
| 90981-16014 |
XKU414,424 24V 21W,NO.2 |
4 | ||
| 90981-16027 |
XKU414,424 24V 25/10W,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 90981-16015 |
XKU414,424 24V 21/5W,NO.1 |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-37110 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81551-37120 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81551-60451 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81551-60442 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81552-95400 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81552-37120 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-37130 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81560-37240 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81560-37070 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81560-37180 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-37130 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81561-60372 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81561-60381 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81561-37120 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81552-37120 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81552-95400 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 81559-95400 | ||||
| Linked diagrams | ||||
| 7554 | ||||

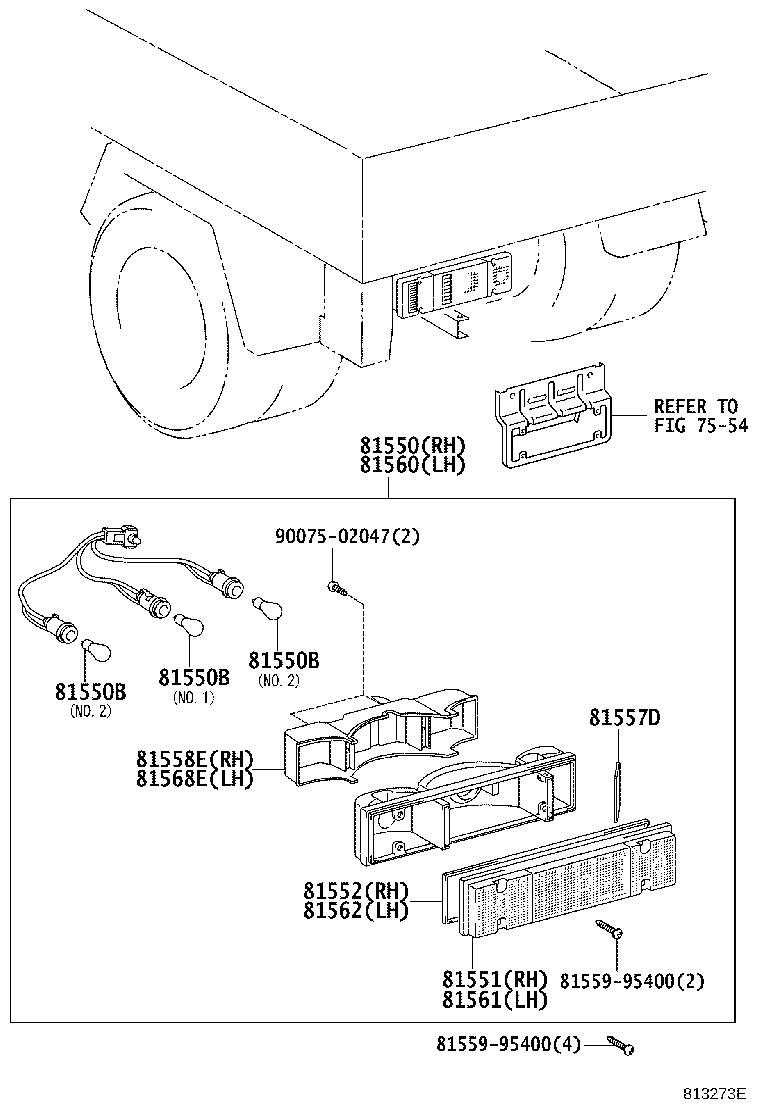

(0505- )
TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-37240 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81550-37120 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81550-37180 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81550-37050 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-16027 |
XKU414,424 24V 25/10W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 99134-12250 |
XKU414,424 24V 25W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
4 | ||
| 99134-11250 |
XKU414,424 24V 25W,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
4 | ||
| 90981-16014 |
XKU414,424 24V 21W,NO.2 |
4 | ||
| 90981-16027 |
XKU414,424 24V 25/10W,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 90981-16015 |
XKU414,424 24V 21/5W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-16027 |
XKU414,424 24V 25/10W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 99134-12250 |
XKU414,424 24V 25W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
4 | ||
| 99134-11250 |
XKU414,424 24V 25W,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
4 | ||
| 90981-16014 |
XKU414,424 24V 21W,NO.2 |
4 | ||
| 90981-16027 |
XKU414,424 24V 25/10W,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 90981-16015 |
XKU414,424 24V 21/5W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-16027 |
XKU414,424 24V 25/10W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 99134-12250 |
XKU414,424 24V 25W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
4 | ||
| 99134-11250 |
XKU414,424 24V 25W,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
4 | ||
| 90981-16014 |
XKU414,424 24V 21W,NO.2 |
4 | ||
| 90981-16027 |
XKU414,424 24V 25/10W,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 90981-16015 |
XKU414,424 24V 21/5W,NO.1 |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-37110 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81551-37120 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81551-60451 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81551-60442 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81552-95400 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81552-37120 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81557D - REFLECTOR, REAR COMBINATION LAMP | ||||
| 81557-95403 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 81558E - COVER, REAR COMBINATION LAMP, RH | ||||
| 81558-27070 |
XKU414,424 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-37130 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81560-37240 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81560-37070 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81560-37180 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-37130 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81561-60372 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81561-60381 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81561-37120 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81552-37120 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81552-95400 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81568E - COVER, REAR COMBINATION LAMP, LH | ||||
| 81568-27040 |
XKU414,424 |
1 | ||
| Common parts | ||||
| 81559-95400 | ||||
| 90075-02047 | ||||
| Linked diagrams | ||||
| 7554 | ||||
