XKU414-TKFQW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

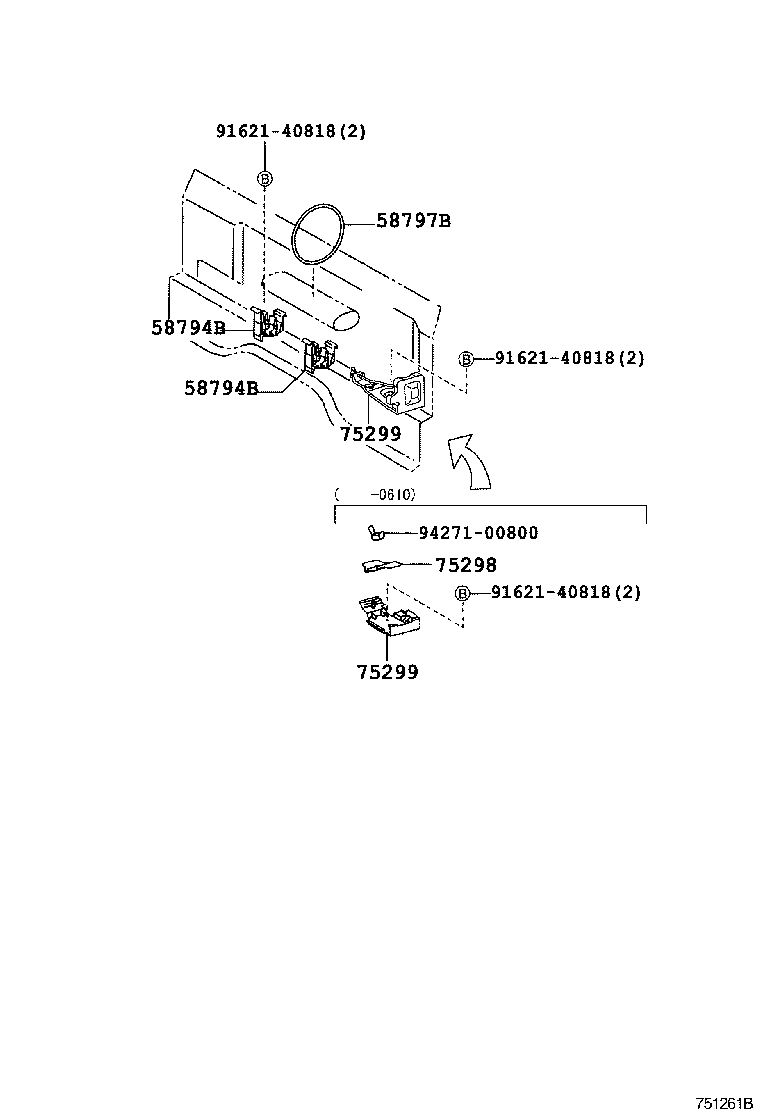

ILLUST NO. 1 OF 3(0310- )

Click highlighted areas on diagram

ｼﾞｬﾂｷ

diagram 58794B 58794B 58797B 75298 75299 75299 9162140818 9162140818 9162140818 9427100800
Part # Description Qty Price
58794B - SUPPORT, JACK HANDLE
58794-37010

XKU414,424

 2
58794B - SUPPORT, JACK HANDLE
58794-37010

XKU414,424

 2
58797B - BAND, JACK CLAMP
58797-37010

XKU414,424

 1
75298 - PLATE, JACK HOLDER
75298-37020

XKU414,424

 1
75298-37050

XKU414,424

 1
75299 - BASE, JACK HOLDER
75299-37040

XKU414,424

 1
75299 - BASE, JACK HOLDER
75299-37040

XKU414,424

 1
Common parts
91621-40818
94271-00800

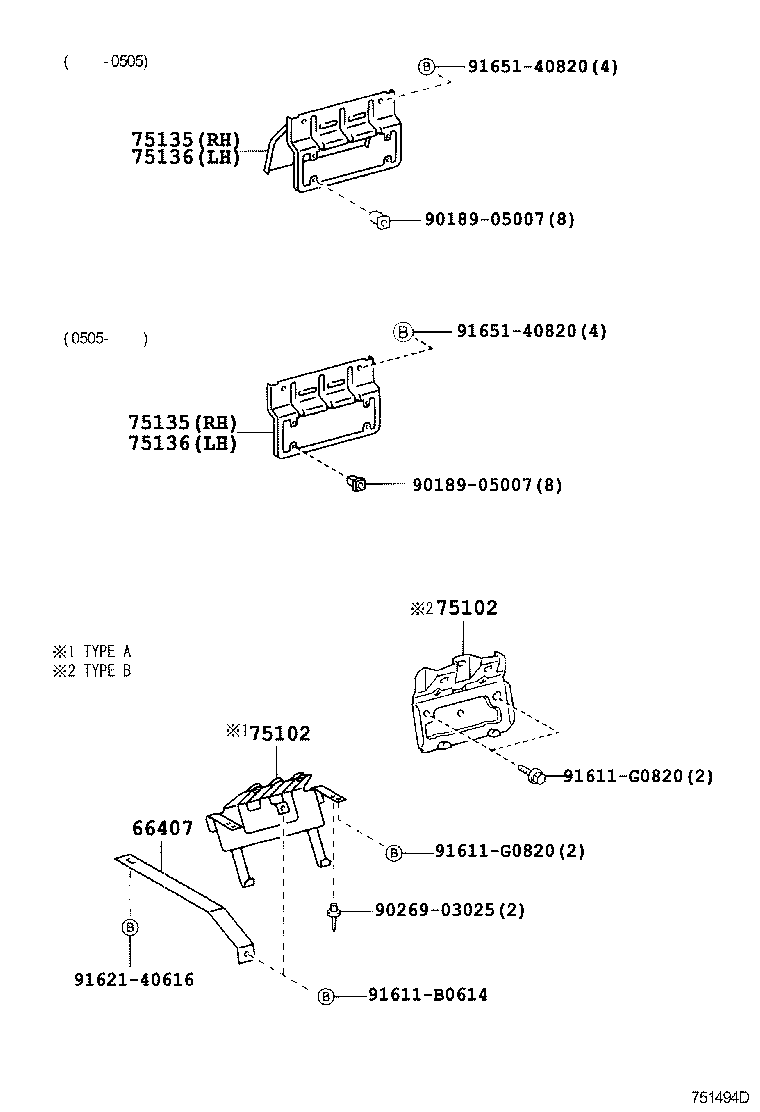

ILLUST NO. 2 OF 3(0310-0610)XKU414

Click highlighted areas on diagram

ﾗｲｾﾝｽﾌﾟﾚｰﾄ,ﾃｰﾙﾗﾝﾌﾟ

diagram 66407 75102 75102 75135 75135 75136 75136 9018905007 9018905007 9026903025 91611B0614 91611G0820 91611G0820 9162140616 9165140820 9165140820
Part # Description Qty Price
66407 - STAY SUB-ASSY, LICENSE PLATE BRACKET
66493-37140

XKU414

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-92800

XKU414,424

TYPE B:ｲﾗｽﾄ参照

 1
66490-37030

XKU414,424

TYPE A:ｲﾗｽﾄ参照

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-92800

XKU414,424

TYPE B:ｲﾗｽﾄ参照

 1
66490-37030

XKU414,424

TYPE A:ｲﾗｽﾄ参照

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-37030

XKU414

 1
75105-37070

XKU414

 1
58378-37020

XKU414

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-37030

XKU414

 1
75105-37070

XKU414

 1
58378-37020

XKU414

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75105-37030

XKU414

 1
58378-37020

XKU414

 1
75105-37070

XKU414

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75105-37030

XKU414

 1
58378-37020

XKU414

 1
75105-37070

XKU414

 1
Common parts
90189-05007
90269-03025
91611-B0614
91611-G0820
91621-40616
91651-40820
