XKU414-TKFQW3 (2003)
Toyota Dyna/Toyoace Hv
Production
Oct 2003
-
Oct 2006
Engine
N04C
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0310-0610)30T,35T

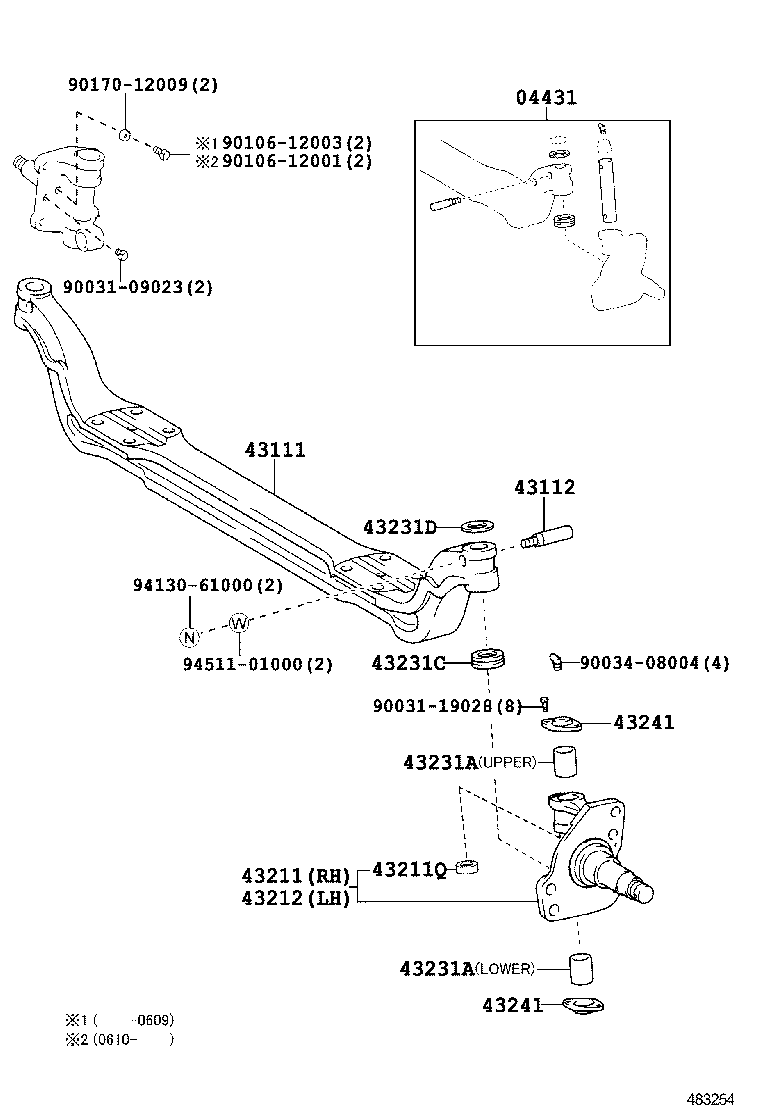

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04431 - PIN KIT, STEERING KNUCKLE KING | ||||
| 04431-37091 |
XKU414,424..30T,35T |
1 | ||
| 43111 - I BEAM, FRONT AXLE | ||||
| 43111-37080 |
XKU414,424..30T,35T |
1 | ||
| 43112 - PIN, KING PIN LOCK | ||||
| 43112-36030 |
XKU414,424..30T,35T |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43201-37100 |
XKU414,424..30T,35T |
1 | ||
| 43211Q - SEAL, OIL (FOR STEERING KNUCKLE) | ||||
| 90311-35012 |
XKU414,424..30T,35T |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43202-37100 |
XKU414,424..30T,35T |
1 | ||
| 43231C - BEARING (FOR STEERING KNUCKLE KING PIN) | ||||
| 90367-35001 |
XKU414,424..30T,35T |
2 | ||
| 43231D - SHIM (FOR KING PIN) | ||||
| 90032-09027 |
XKU414,424..30T,35T 厚さ=2.4 |
1 | ||
| 90032-09022 |
XKU414,424..30T,35T 厚さ=1.9 |
1 | ||
| 90032-09023 |
XKU414,424..30T,35T 厚さ=2.0 |
1 | ||
| 90032-09024 |
XKU414,424..30T,35T 厚さ=2.1 |
1 | ||
| 90032-09026 |
XKU414,424..30T,35T 厚さ=2.3 |
1 | ||
| 90032-09028 |
XKU414,424..30T,35T 厚さ=2.5 |
1 | ||
| 90032-09029 |
XKU414,424..30T,35T 厚さ=2.6 |
1 | ||
| 90032-09025 |
XKU414,424..30T,35T 厚さ=2.2 |
1 | ||
| 43241 - COVER, STEERING KUNCKLE OIL SEAL | ||||
| 43241-36010 |
XKU414,424..30T,35T |
4 | ||
| 43241 - COVER, STEERING KUNCKLE OIL SEAL | ||||
| 43241-36010 |
XKU414,424..30T,35T |
4 | ||
| Common parts | ||||
| 90031-09023 | ||||
| 90031-19028 | ||||
| 90034-08004 | ||||
| 90106-12001 | ||||
| 90106-12003 | ||||
| 90170-12009 | ||||
| 94130-61000 | ||||
| 94511-01000 | ||||
