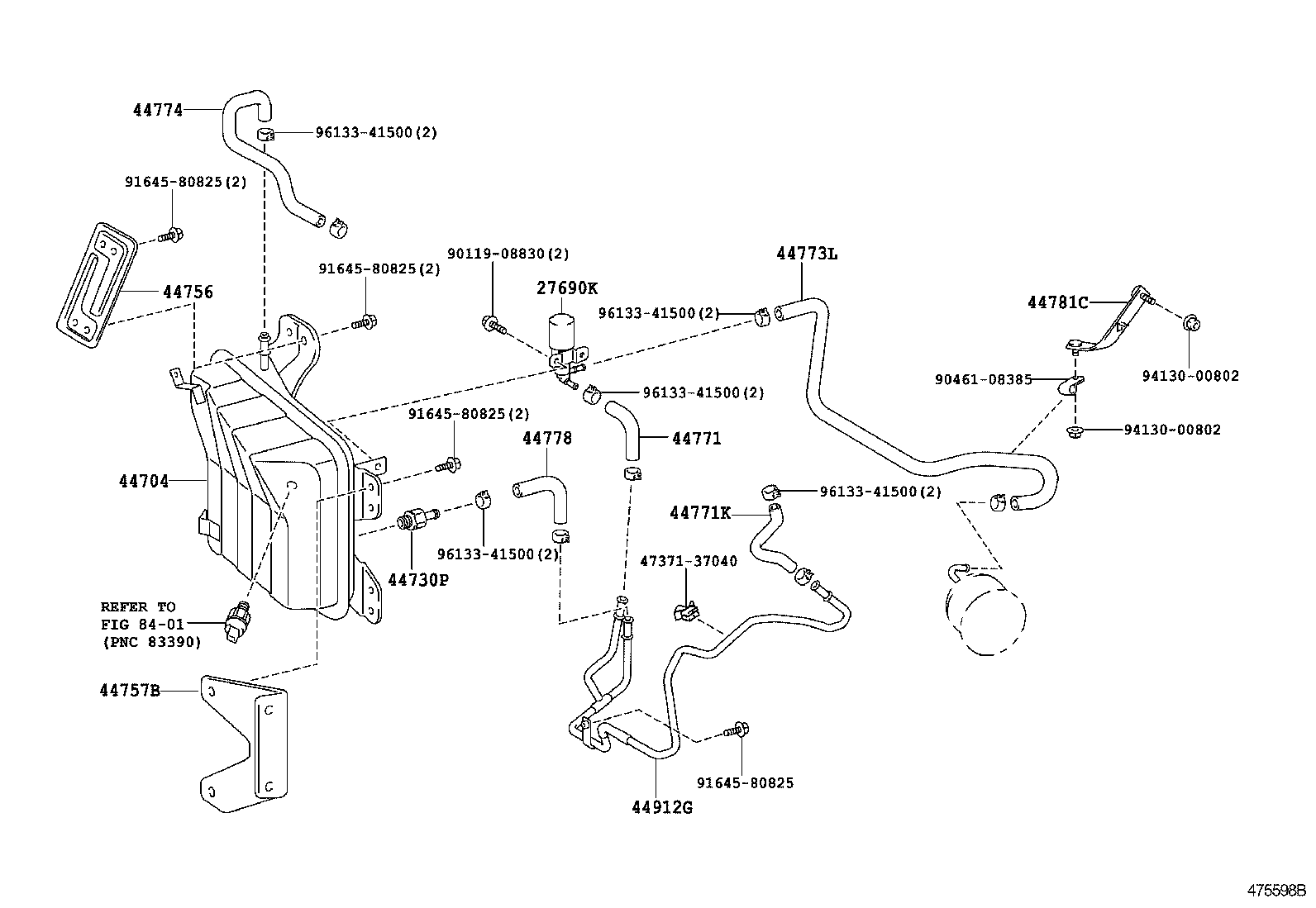

Toyota Dyna/toyoace hv XKU414 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78023	N04C..XKU414,424	10/2003 - 10/2006	1
27690-78140	N04C..XKU414,424	10/2006 - 12/2999	1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37070	XKU414,424	10/2003 - 07/2006	1
44704-37241	XKU414,424	11/2008 - 12/2999	1
44704-37240	XKU414,424	10/2006 - 10/2008	1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050	XKU414,424	10/2006 - 12/2999	1
44730-60050	XKU414,424	10/2003 - 07/2006	1
44756 - BRACKET, VACUUM RESERVOIR
44756-37100	XKU414,424	10/2006 - 12/2999	1
44756-37100	XKU414,424	10/2003 - 10/2006	1
44757B - BRACKET, VACUUM TANK CLAMP, NO.2
44757-37090	XKU414,424	10/2003 - 10/2006	1
44757-37091	XKU414,424	10/2006 - 12/2999	1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-37540	XKU414,424	10/2003 - 10/2006	1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
95446-09120	XKU414,424 NO.1	10/2003 - 10/2006	1
44771-37580	XKU414,424 NO.2	10/2003 - 10/2006	1
44771-37A00	XKU414,424	10/2006 - 12/2999	1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44773-37290	XKU414,424	10/2003 - 10/2006	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-37110	XKU414,424	10/2003 - 10/2006	1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-37060	XKU414,424	10/2006 - 12/2999	1
44778-37060	XKU414,424	10/2003 - 10/2006	1
44781C - BRACKET, HOSE CLAMP, NO.2
44781-37081	XKU414,424	10/2003 - 10/2006	1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37A20	XKU414,424	10/2003 - 10/2006	1
Common parts
47371-37040
90119-08830
90461-08385
91645-80825
94130-00802
96133-41500
Linked diagrams
8401

XKU414-TKFQB3 (2006)
