XKU344-TKMQW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

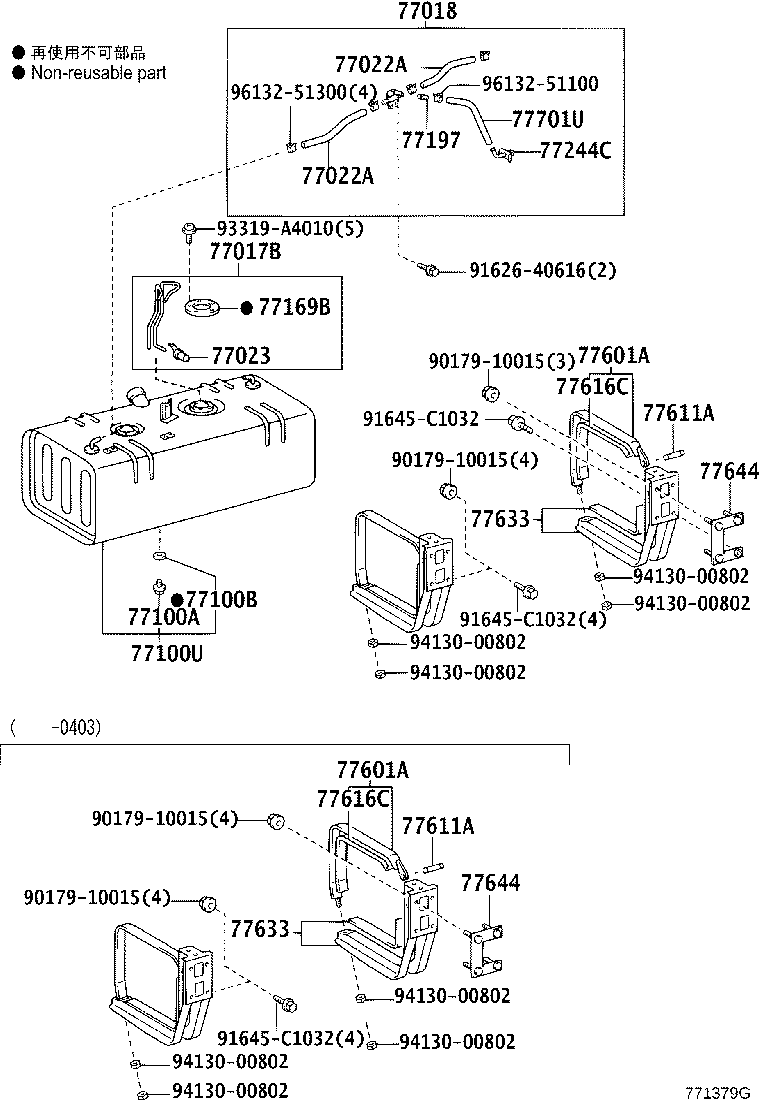

ILLUST NO. 1 OF 2(0310-0610)

Click highlighted areas on diagram

ﾌﾕ-ｴﾙ ﾀﾝｸ

diagram 77017B 77018 77022A 77022A 77023 77100A 77100B 77100U 77169B 77197 77244C 77601A 77601A 77611A 77611A 77616C 77616C 77633 77633 77644 77644 77701U 9017910015 9017910015 9017910015 9017910015 9162640616 91645C1032 91645C1032 91645C1032 93319A4010 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9613251100 9613251300
Part # Description Qty Price
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37010

XKU304,344

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37050

XKU304,344

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

XKU304,344

*H,L=280,内径=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

XKU304,344

*H,L=280,内径=7.6

 2
77100A - PLUG(FOR FUEL TANK)
90105-12116

XKU304,344

 1
90105-12116

XKU304,344

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

XKU304,344

 1
90430-12245

XKU304,344

 1
77100U - TANK SUB-ASSY, FUEL
77001-37232

XKU304,344

690X310X385

 1
77001-37231

XKU304,344

690X310X385

 1
77197 - ORIFICE, FUEL VAPOR
90977-02001

XKU304,344

 1
77244C - JOINT, FUEL TUBE, NO.2
77244-37010

XKU304,344

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36150

XKU304,344

 2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36150

XKU304,344

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

XKU304,344

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

XKU304,344

 2
77616C - SEAT, FUEL TANK BAND
77616-36030

XKU304,344

 2
77616C - SEAT, FUEL TANK BAND
77616-36030

XKU304,344

 2
77633 - STAY, FUEL TANK
77501-37080

XKU304,344

 2
77633 - STAY, FUEL TANK
77501-37080

XKU304,344

 2
77644 - BOLT, FUEL TANK
77644-37100

XKU304,344

 1
77644-37101

XKU304,344

 1
77644 - BOLT, FUEL TANK
77644-37100

XKU304,344

 1
77644-37101

XKU304,344

 1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06040

XKU304,344

*H,L=400

 1
Common parts
90179-10015
91626-40616
91645-C1032
93319-A4010
94130-00802
96132-51100
96132-51300

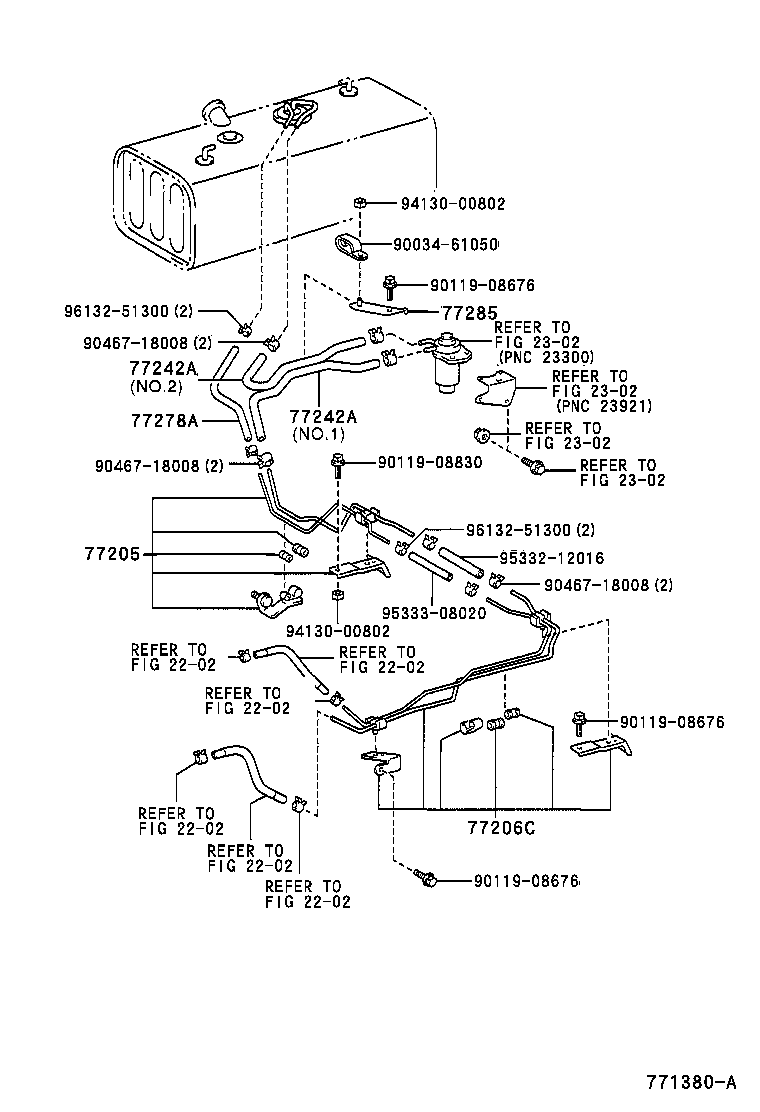

ILLUST NO. 2 OF 2(0310-0610)

Click highlighted areas on diagram

ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ

diagram 2202 2202 2202 2202 2202 2202 2302 2302 2302 2302 77205 77206C 77242A 77242A 77278A 77285 9003461050 9011908676 9011908676 9011908676 9011908830 9046718008 9046718008 9046718008 9413000802 9413000802 9533212016 9533308020 9613251300 9613251300
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37700

XKU304,344

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37890

XKU304,344

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
77279-37010

XKU304,344

NO.2

 1
77259-37090

XKU304,344

NO.1

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
77279-37010

XKU304,344

NO.2

 1
77259-37090

XKU304,344

NO.1

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030

XKU304,344

*H,L=280,内径=7.6

 1
77285 - BRACKET, FUEL TUBE
77281-37190

XKU304,344

 1
Common parts
90034-61050
90119-08676
90119-08830
90467-18008
94130-00802
95332-12016
95333-08020
96132-51300
Linked diagrams
2202
2302
