XKU344-TKMQW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

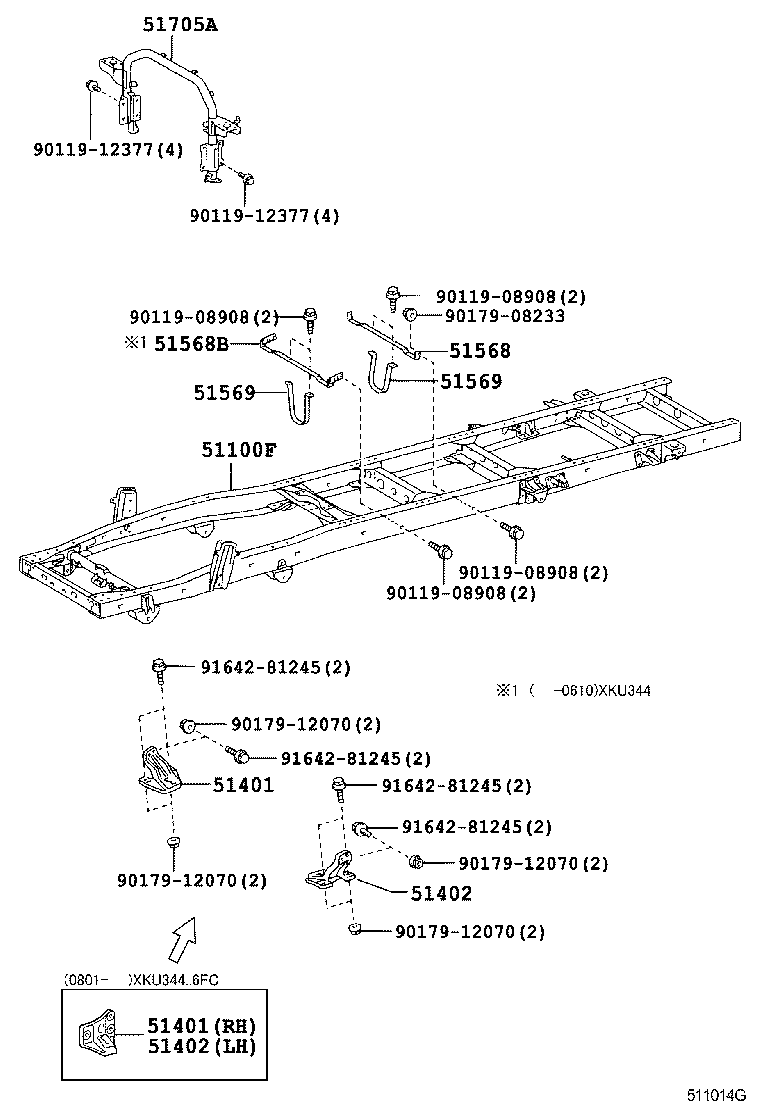

ILLUST NO. 1 OF 3(0310- )XKU34#

Click highlighted areas on diagram

diagram 51100F 51401 51401 51402 51402 51568 51568B 51569 51569 51705A 9011908908 9011908908 9011908908 9011908908 9011912377 9011912377 9017908233 9017912070 9017912070 9017912070 9017912070 9164281245 9164281245 9164281245 9164281245
Part # Description Qty Price
51100F - FRAME SUB-ASSY
51001-37M50

XKU344

 1
51001-37M51

XKU344

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-37050

XKU304,344

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-37050

XKU304,344

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-37110

XKU304,344

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-37110

XKU304,344

 1
51568 - BRACKET, PROPELLER SHAFT GUARD
51568-37560

XKU344

 1
51568B - BRACKET, PROPELLER SHAFT GUARD
51568-37390

XKU344

 1
51569 - GUARD, PROPELLER SHAFT
51569-37290

XKU344

ﾘﾔ

 1
51569-37141

XKU344

ﾌﾛﾝﾄ

 1
51569 - GUARD, PROPELLER SHAFT
51569-37290

XKU344

ﾘﾔ

 1
51569-37141

XKU344

ﾌﾛﾝﾄ

 1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-37400

XKU304,344

 1
Common parts
90119-08908
90119-12377
90179-08233
90179-12070
91642-81245

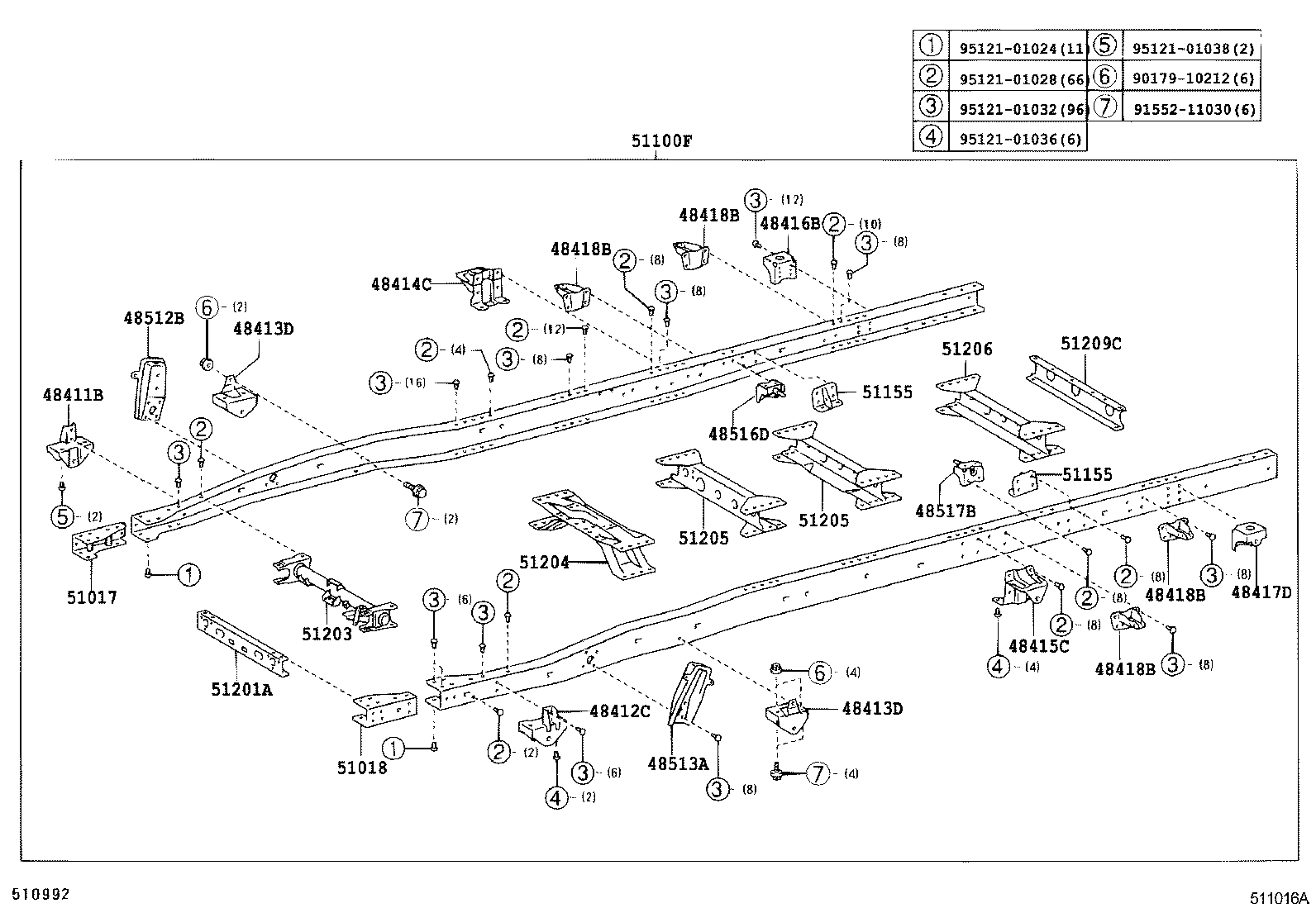

ILLUST NO. 2 OF 3(0310- )XKU344..5F

Click highlighted areas on diagram

diagram 48411B 48412C 48413D 48413D 48414C 48415C 48416B 48417D 48418B 48418B 48418B 48418B 48512B 48513A 48516D 48517B 51017 51018 51100F 51155 51155 51201A 51203 51204 51205 51205 51206 51209C 9017910212 9155211030 9512101024 9512101028 9512101032 9512101036 9512101038
Part # Description Qty Price
48411B - BRACKET, SPRING, NO.1 RH
48411-37070

XKU304,344

 1
48412C - BRACKET, SPRING, NO.1 LH
48412-37060

XKU304,344

 1
48413D - BRACKET, SPRING, NO.2
48413-37060

XKU304,344

 2
48413D - BRACKET, SPRING, NO.2
48413-37060

XKU304,344

 2
48414C - BRACKET, SPRING, NO.3 RH
48414-37100

XKU344

 1
48415C - BRACKET, SPRING, NO.3 LH
48415-37020

XKU344

 1
48416B - BRACKET, SPRING, NO.4 RH
48416-37100

XKU344

 1
48417D - BRACKET, SPRING, NO.4 LH
48416-37100

XKU344

 1
48418B - BRACKET, SPRING, NO.6
48418-36090

XKU344

 4
48418B - BRACKET, SPRING, NO.6
48418-36090

XKU344

 4
48418B - BRACKET, SPRING, NO.6
48418-36090

XKU344

 4
48418B - BRACKET, SPRING, NO.6
48418-36090

XKU344

 4
48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH
48512-37050

XKU304,344

 1
48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH
48512-37130

XKU304,344

 1
48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48505-37010

XKU304,344

 1
48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
48505-37010

XKU304,344

 1
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-37130

XKU304,344

 1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-37020

XKU304,344

 1
51018-37021

XKU304,344

 1
51100F - FRAME SUB-ASSY
51001-37M50

XKU344

 1
51001-37M51

XKU344

 1
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37060

XKU304,344

 2
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37060

XKU304,344

 2
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51211-37090

XKU304,344

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-37150

XKU304,344

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-37160

XKU344

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205-37060

XKU344

 2
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205-37060

XKU344

 2
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51206-37010

XKU304,344

 1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51291-37040

XKU344

 1
Common parts
90179-10212
91552-11030
95121-01024
95121-01028
95121-01032
95121-01036
95121-01038
