XKU344-TKMMW3 (2005)

Toyota Dyna/Toyoace Hv

Production May 2005 - Oct 2006
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310-0610)

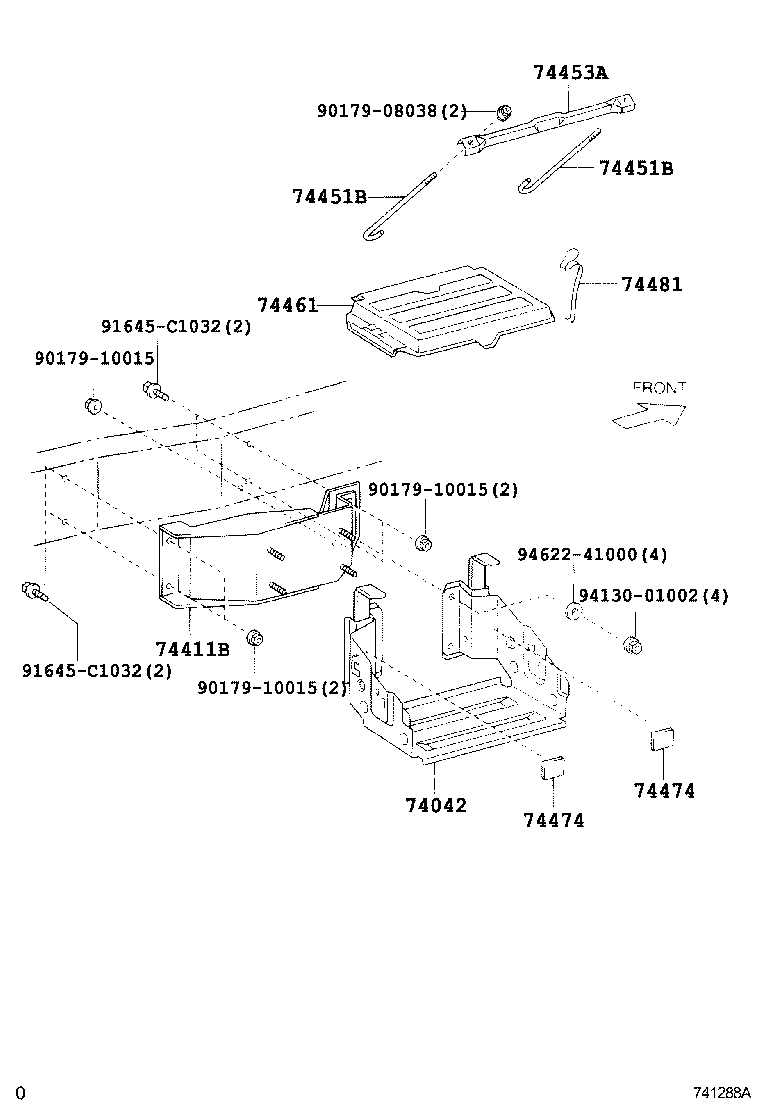

Click highlighted areas on diagram

diagram 74042 74411B 74451B 74451B 74453A 74461 74474 74474 74481 9017908038 9017910015 9017910015 9017910015 91645C1032 91645C1032 9413001002 9462241000
Part # Description Qty Price
74042 - BRACKET SUB-ASSY, BATTERY
74042-37050

XKU304,344

 1
74411B - BRACKET, BATTERY, FRONT
74401-37110

XKU304,344

 1
74451B - BOLT, BATTERY CLAMP
74451-37021

XKU304,344

 2
74451B - BOLT, BATTERY CLAMP
74451-37021

XKU304,344

 2
74453A - BAR, BATTERY SET PLATE
74453-36070

XKU304,344

 1
74461 - COVER, BATTERY
74461-37030

XKU304,344

 1
74474 - PAD, BATTERY
74475-36040

XKU304,344

 2
74474 - PAD, BATTERY
74475-36040

XKU304,344

 2
74481 - CLAMP, BATTERY HOLD DOWN
74481-36030

XKU304,344

 2
Common parts
90179-08038
90179-10015
91645-C1032
94130-01002
94622-41000
