XKU308H-TPMMB3 (2006)
Toyota Dyna/Toyoace Hv
ILLUST NO. 3 OF 3(0610- )XKU308,338,348,508
ｻｽﾍﾟﾝｼｮﾝ ﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51065 - SUPPORT SUB-ASSY, STEERING GEAR BOX | ||||
| 51065-37030 |
XKU308,338,348,508 |
1 | ||
| 51101A - RAIL SUB-ASSY, FRONT FRAME SIDE, RH | ||||
| 51101-37100 |
XKU308,338,348,508 |
1 | ||
| 51102A - RAIL SUB-ASSY, FRONT FRAME SIDE, LH | ||||
| 51102-37100 |
XKU308,338,348,508 |
1 | ||
| 51107A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH | ||||
| 51107-37160 |
XKU308,338,348,508 |
1 | ||
| 51108A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH | ||||
| 51108-37210 |
XKU308,338,348,508 |
1 | ||
| 51210A - MEMBER ASSY, FRONT SUSPENSION | ||||
| 51210-37050 |
XKU308,338,348,508 |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-37040 |
XKU308,338,348,508 |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-37050 |
XKU308,338,348,508 |
1 | ||
| 51508A - BRACKET SUB-ASSY, LOWER ARM, RH | ||||
| 51508-37100 |
XKU308,338,348,508 NO.2 |
1 | ||
| 51508-37080 |
XKU308,338,348,508 NO.1 |
1 | ||
| 51508A - BRACKET SUB-ASSY, LOWER ARM, RH | ||||
| 51508-37100 |
XKU308,338,348,508 NO.2 |
1 | ||
| 51508-37080 |
XKU308,338,348,508 NO.1 |
1 | ||
| 51508D - SUPPORT SUB-ASSY, STABILIZER, RH | ||||
| 51508-37090 |
XKU308,338,348,508 |
1 | ||
| 51509 - SUPPORT SUB-ASSY, STABILIZER | ||||
| 51509-37090 |
XKU308,338,348,508 |
1 | ||
| 51509A - BRACKET SUB-ASSY, LOWER ARM, LH | ||||
| 51509-37080 |
XKU308,338,348,508 NO.1 |
1 | ||
| 51509-37100 |
XKU308,338,348,508 NO.2 |
1 | ||
| 51509A - BRACKET SUB-ASSY, LOWER ARM, LH | ||||
| 51509-37080 |
XKU308,338,348,508 NO.1 |
1 | ||
| 51509-37100 |
XKU308,338,348,508 NO.2 |
1 | ||
| 51677 - BRACKET, STEERING GEAR BOX | ||||
| 51607-37010 |
XKU308,338,348,508 |
1 | ||
| Common parts | ||||
| 51751-37150 | ||||
| 90119-14133 | ||||
| 90179-16029 | ||||
| 91672-L1470 | ||||
| 91672-L1495 | ||||

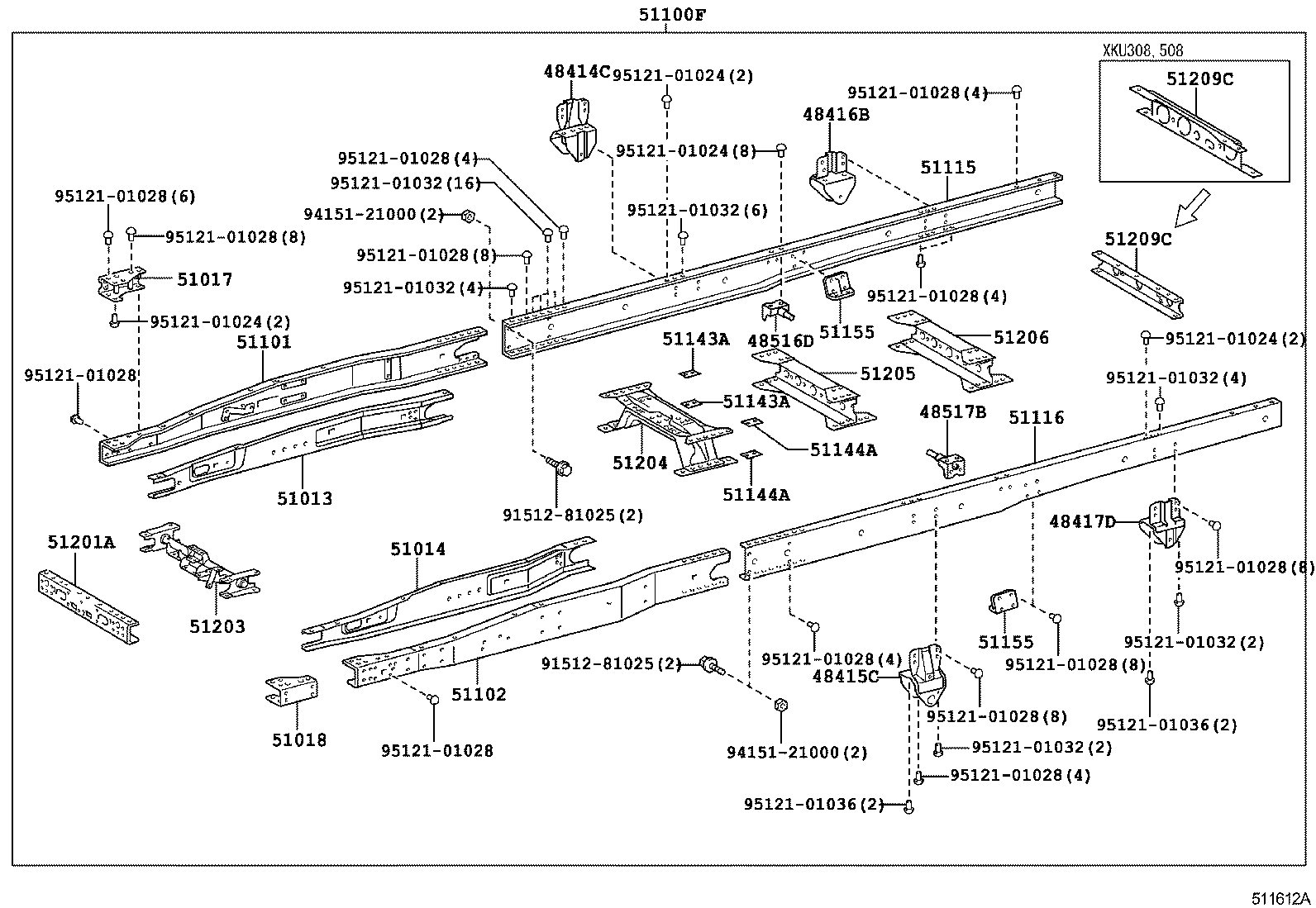

ILLUST NO. 2 OF 3(0610- )XKU308,338,508
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37050 |
XKU30#,338,508 |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48414-37050 |
XKU30#,338,508 |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37050 |
XKU30#,338,508 |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37050 |
XKU30#,338,508 |
1 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37010 |
XKU30#,338,34#,508 |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-37010 |
XKU30#,338,34#,508 |
1 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37430 |
XKU308,338,348,508 |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37410 |
XKU308,338,348,508 |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37170 |
XKU308,338,348,508 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37140 |
XKU344..6FC;XKU308,338,348,508 |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-37Z20 |
XKU308,508 |
1 | ||
| 51101 - RAIL, FRONT FRAME SIDE, RH | ||||
| 51101-37060 |
XKU308,338,348,508 |
1 | ||
| 51102 - RAIL, FRONT FRAME SIDE, LH | ||||
| 51102-37060 |
XKU308,338,348,508 |
1 | ||
| 51115 - RAIL, FRAME SIDE, REAR RH | ||||
| 51115-37240 |
XKU308,508 |
1 | ||
| 51116 - RAIL, FRAME SIDE, REAR LH | ||||
| 51108-37090 |
XKU308,508 |
1 | ||
| 51143A - REINFORCEMENT, SIDE RAIL, FRONT RH | ||||
| 51141-37340 |
XKU344..6FC;XKU308,338,348,508 |
2 | ||
| 51143A - REINFORCEMENT, SIDE RAIL, FRONT RH | ||||
| 51141-37340 |
XKU344..6FC;XKU308,338,348,508 |
2 | ||
| 51144A - REINFORCEMENT, SIDE RAIL, FRONT LH | ||||
| 51141-37340 |
XKU344..6FC;XKU308,338,348,508 |
2 | ||
| 51144A - REINFORCEMENT, SIDE RAIL, FRONT LH | ||||
| 51141-37340 |
XKU344..6FC;XKU308,338,348,508 |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XKU344..5F;XKU30#,338,508 |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XKU344..5F;XKU30#,338,508 |
2 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-37090 |
XKU30#,338,34#,508 |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-37210 |
XKU30#,338,34#,508 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37330 |
XKU344..6FC;XKU308,338,348,508 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37160 |
XKU308,338,508 |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51206-37060 |
XKU308,338,508 |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-37140 |
XKU308,508 |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-37140 |
XKU308,508 |
1 | ||
| Common parts | ||||
| 91512-81025 | ||||
| 94151-21000 | ||||
| 95121-01024 | ||||
| 95121-01028 | ||||
| 95121-01032 | ||||
| 95121-01036 | ||||
