XKU308-TQMMB3 (2006)

Toyota Dyna/Toyoace Hv

Production Oct 2006 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

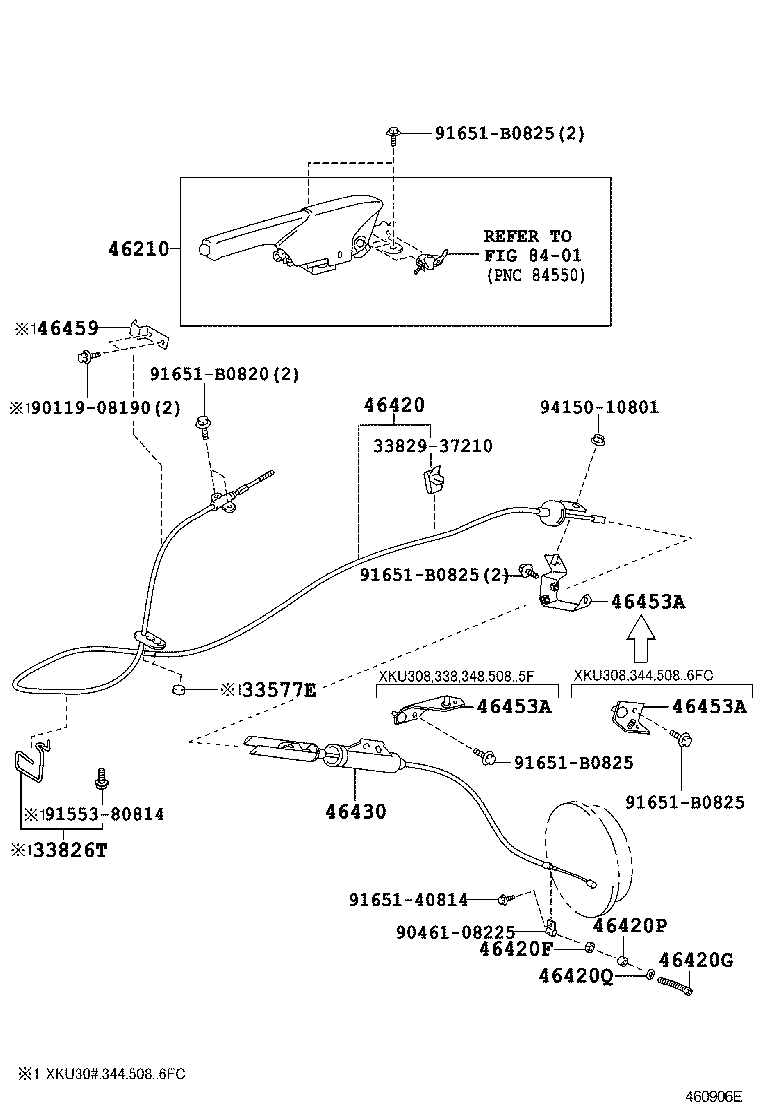

ILLUST NO. 1 OF 2(0610- )XKU308,338,34#,508 ; (0908- )XKU304..6FC

Click highlighted areas on diagram

diagram 33577E 33826T 3382937210 46210 46420 46420F 46420G 46420P 46420Q 46430 46453A 46453A 46453A 46459 8401 9011908190 9046108225 9155380814 9165140814 91651B0820 91651B0825 91651B0825 91651B0825 91651B0825 9415010801
Part # Description Qty Price
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-37700

XKU308,338,348,508..5F

 1
46420F - SEAL, DUST(FOR PARKING BRAKE CABLE)
90303-10001

XKU304..6FC;XKU308,338,34#,508

 1
46420G - SPRING(FOR PARKING CABLE INNER WIRE SET)
90501-14003

XKU304..6FC;XKU308,338,34#,508

 1
46420P - SPACER, PARKING BRAKE
90560-08002

XKU304..6FC;XKU308,338,34#,508

 1
46420Q - RING, E(FOR PARKING BRAKE CABLE)
96160-00700

XKU304..6FC;XKU308,338,34#,508

 1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37300

XKU308,338,348,508..5F

 1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37300

XKU308,338,348,508..5F

 1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37300

XKU308,338,348,508..5F

 1
Common parts
33829-37210
90119-08190
90461-08225
91553-80814
91651-40814
91651-B0820
91651-B0825
94150-10801
