XKU304H-TPMMW3 (2003)
Toyota Dyna/Toyoace Hv

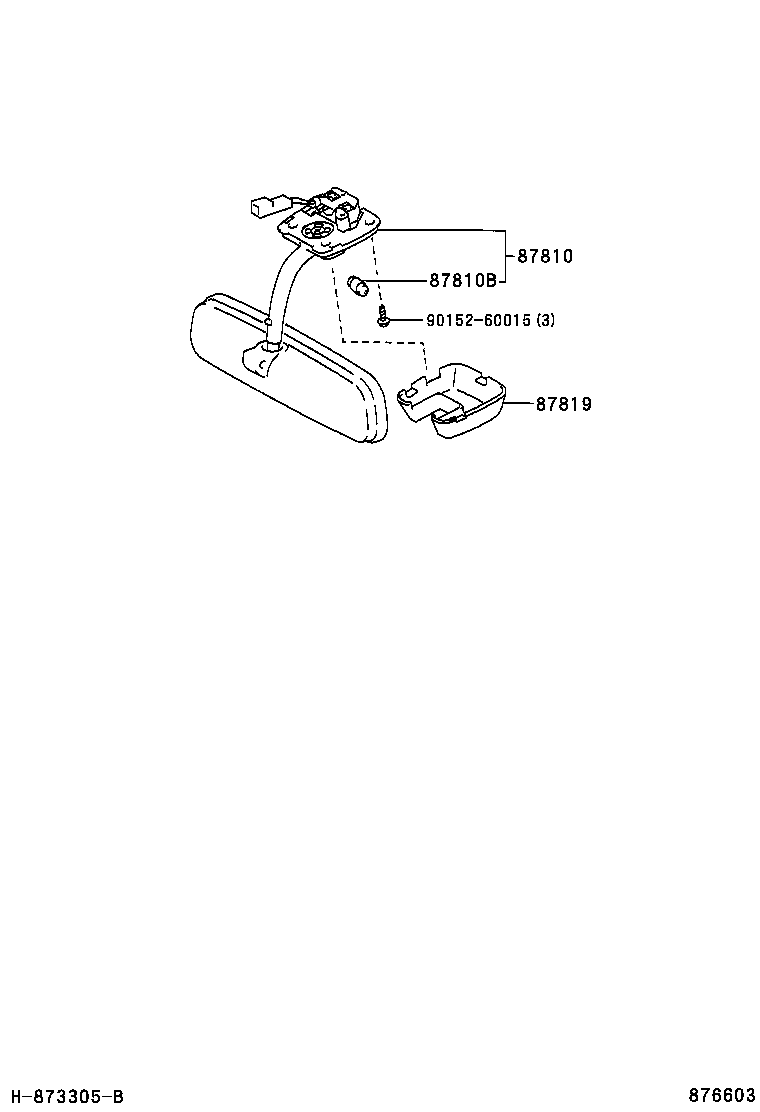

ILLUST NO. 1 OF 3(0310- )
ｲﾝﾅﾐﾗ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-37061B0 |
XKU304,344 MD.CHARCOAL,TRIM1# |
1 | ||
| 87810-37060B0 |
XKU304,344 MD.CHARCOAL,TRIM1# |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 90981-16019 |
XKU304,344 24V 10W |
1 | ||
| 90981-16019 |
XKU304,344 24V 10W |
1 | ||
| 87819 - LENS, INNER RR VIEW MIRROR ROOM LAMP | ||||
| 87819-25010 |
XKU304,344 |
1 | ||
| Common parts | ||||
| 90152-60015 | ||||
ILLUST NO. 3 OF 3(0310- )
ｱｳﾀﾐﾗｰ ｶﾊﾞｰ
| Part # | Description | Qty | Price |
|---|

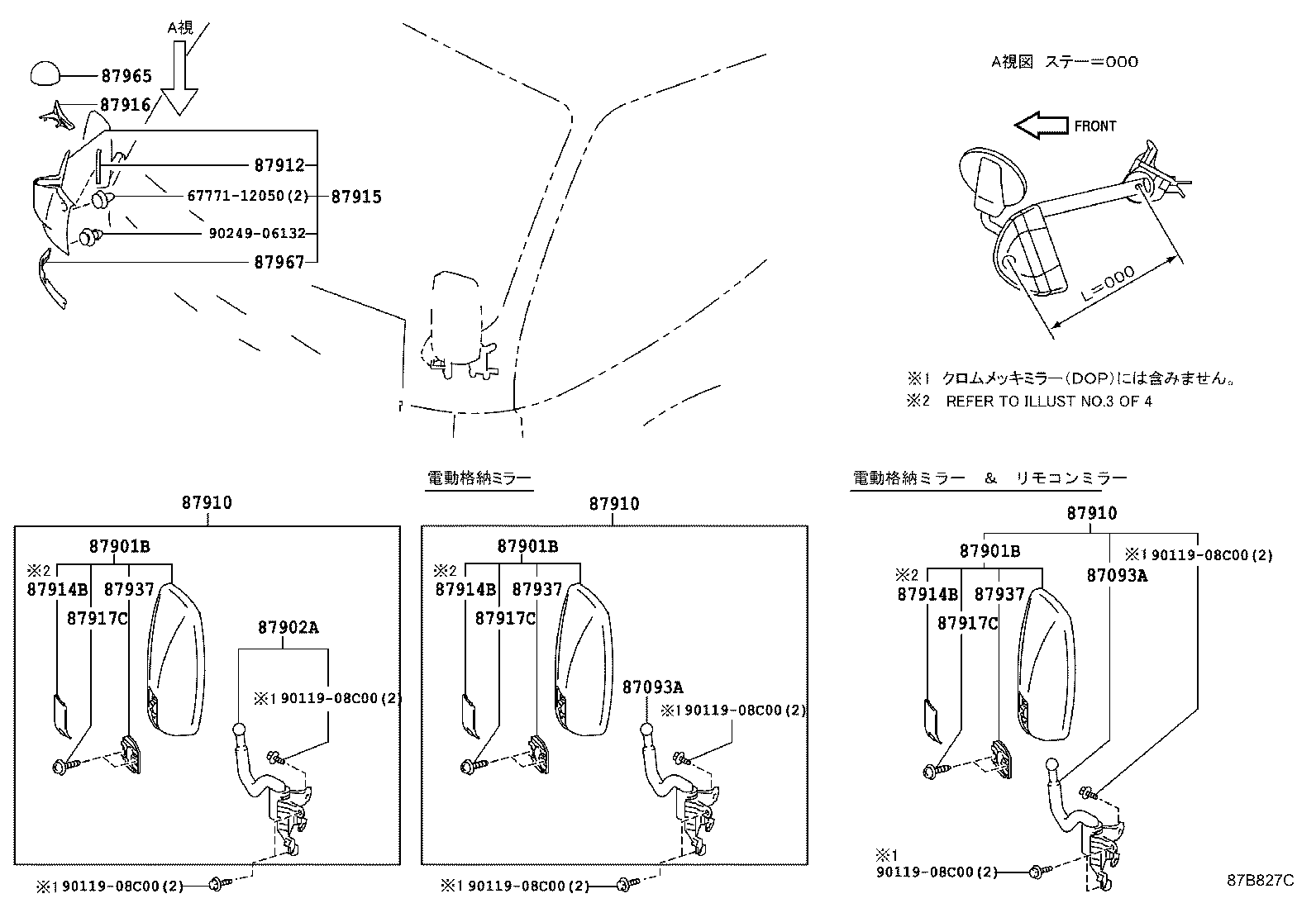

ILLUST NO. 2 OF 3(0310- )
ｱｳﾀﾐﾗ-(ﾐｷﾞｶﾞﾜ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-37130 |
XKU304,344 塗装不要 |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-37130 |
XKU304,344 塗装不要 |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-37130 |
XKU304,344 塗装不要 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-37400 |
XKU304,344 塗装不要,ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾐﾗ-) & ﾌﾞﾗｯｸ ﾄｿｳ |
1 | ||
| 87910-37590 |
XKU304,344 塗装不要,ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾐﾗ-) & ﾌﾞﾗｯｸ ﾄｿｳ |
1 | ||
| 87910-37600 |
XKU304,344 ﾒｯｷ,ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾐﾗ-) & ｸﾛﾑ ﾒｯｷ |
1 | ||
| 87910-37440 |
XKU304,344 ﾒｯｷ,ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾐﾗ-) & ｸﾛﾑ ﾒｯｷ |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-37400 |
XKU304,344 塗装不要,ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾐﾗ-) & ﾌﾞﾗｯｸ ﾄｿｳ |
1 | ||
| 87910-37590 |
XKU304,344 塗装不要,ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾐﾗ-) & ﾌﾞﾗｯｸ ﾄｿｳ |
1 | ||
| 87910-37600 |
XKU304,344 ﾒｯｷ,ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾐﾗ-) & ｸﾛﾑ ﾒｯｷ |
1 | ||
| 87910-37440 |
XKU304,344 ﾒｯｷ,ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾐﾗ-) & ｸﾛﾑ ﾒｯｷ |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-37400 |
XKU304,344 塗装不要,ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾐﾗ-) & ﾌﾞﾗｯｸ ﾄｿｳ |
1 | ||
| 87910-37590 |
XKU304,344 塗装不要,ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾐﾗ-) & ﾌﾞﾗｯｸ ﾄｿｳ |
1 | ||
| 87910-37600 |
XKU304,344 ﾒｯｷ,ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾐﾗ-) & ｸﾛﾑ ﾒｯｷ |
1 | ||
| 87910-37440 |
XKU304,344 ﾒｯｷ,ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾐﾗ-) & ｸﾛﾑ ﾒｯｷ |
1 | ||
| 87912 - PROTECTOR, OUTER MIRROR | ||||
| 87912-37080 |
XKU304,344 |
2 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-37010A0 |
XKU304,344 WHITE,058 |
1 | ||
| 87915-37010B1 |
XKU304 JORSEY CREAM,9A7 |
1 | ||
| 87915-37010J1 |
XKU304,344 BLUE,8P0 |
1 | ||
| 87915-37010B0 |
XKU304,344 SILVER ME.,199 |
1 | ||
| 87915-37050 |
XKU304,344 ﾒｯｷ,ｸﾛﾑ ﾒｯｷ |
1 | ||
| 87915-37010H0 |
XKU304,344 TURQUOISE,766 |
1 | ||
| 87916 - BEZEL, OUTER MIRROR | ||||
| 87916-37010 |
XKU304,344 右側 |
1 | ||
| 87916-37030 |
XKU304,344 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-),左側 |
1 | ||
| 87916-37040 |
XKU304,344 左側 |
1 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87929-37010 |
XKU304,344 |
4 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87929-37010 |
XKU304,344 |
4 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87929-37010 |
XKU304,344 |
4 | ||
| 87937 - HOLDER, MIRROR, RH | ||||
| 87937-37010 |
XKU304,344 |
1 | ||
| 87937 - HOLDER, MIRROR, RH | ||||
| 87937-37010 |
XKU304,344 |
1 | ||
| 87937 - HOLDER, MIRROR, RH | ||||
| 87937-37010 |
XKU304,344 |
1 | ||
| 87965 - GROMMET, OUTER MIRROR | ||||
| 87965-37010 |
XKU304,344 左側 & 右側 |
2 | ||
| 87965-37020 |
XKU304,344 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-),左側 |
1 | ||
| 87965-37010 |
XKU304,344 右側 |
1 | ||
| 87967 - HOLDER, MIRROR, OUTER RH | ||||
| 87967-37020 |
XKU304,344 |
1 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 90119-08C00 | ||||
| 90249-06132 | ||||

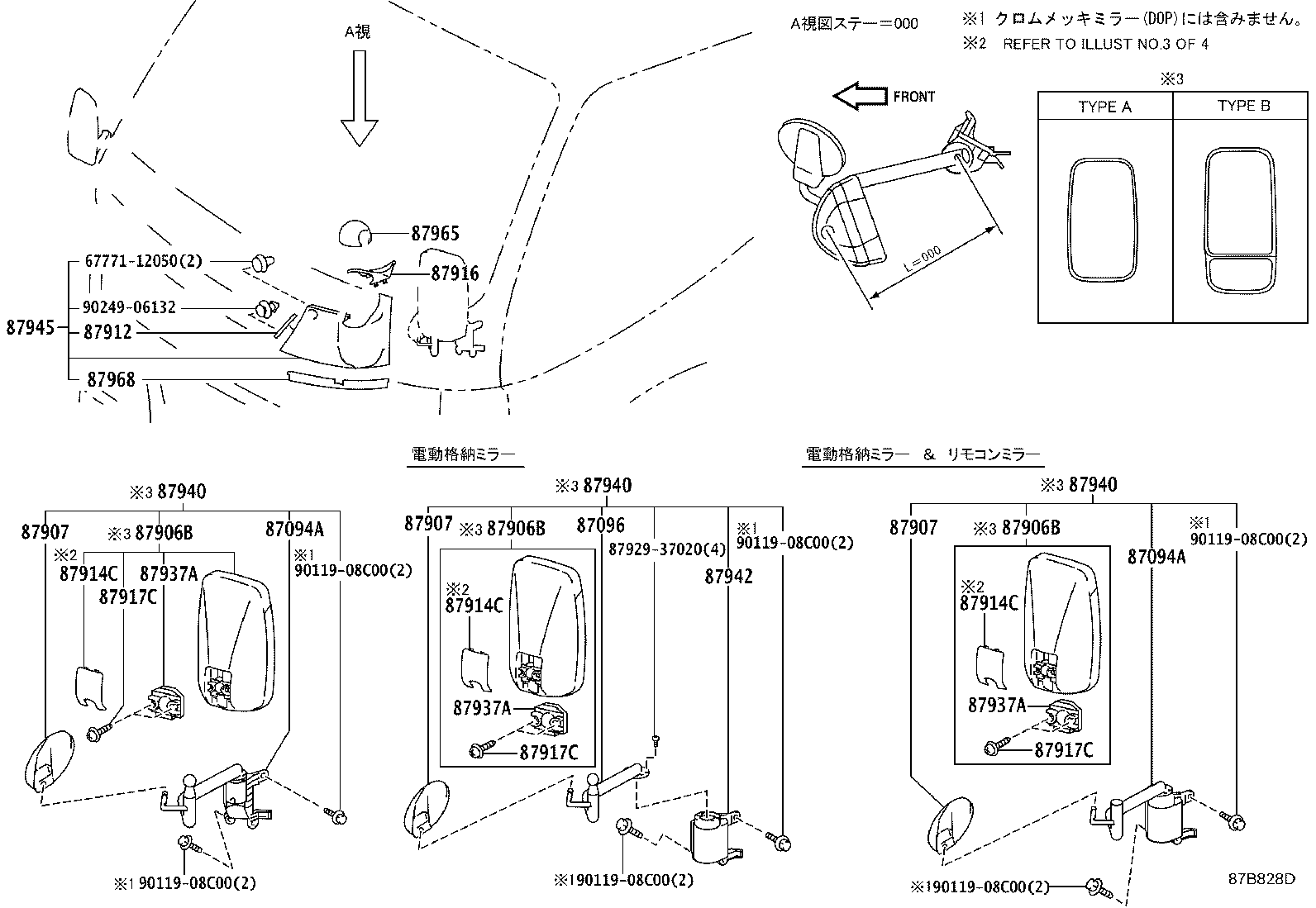

ILLUST NO. 2 OF 3(0310- )
ｱｳﾀﾐﾗｰ(ﾋﾀﾞﾘｶﾞﾜ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-37200 |
XKU304,344 塗装不要,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 87901-37130 |
XKU304,344 塗装不要,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-37200 |
XKU304,344 塗装不要,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 87901-37130 |
XKU304,344 塗装不要,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-37200 |
XKU304,344 塗装不要,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 87901-37130 |
XKU304,344 塗装不要,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-37070 |
XKU304,344 |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-37070 |
XKU304,344 |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-37070 |
XKU304,344 |
1 | ||
| 87912 - PROTECTOR, OUTER MIRROR | ||||
| 87912-37080 |
XKU304,344 |
2 | ||
| 87916 - BEZEL, OUTER MIRROR | ||||
| 87916-37010 |
XKU304,344 右側 |
1 | ||
| 87916-37030 |
XKU304,344 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-),左側 |
1 | ||
| 87916-37040 |
XKU304,344 左側 |
1 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87929-37010 |
XKU304,344 |
4 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87929-37010 |
XKU304,344 |
4 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87929-37010 |
XKU304,344 |
4 | ||
| 87937A - HOLDER, MIRROR, LH | ||||
| 87937-37010 |
XKU304,344 |
1 | ||
| 87937A - HOLDER, MIRROR, LH | ||||
| 87937-37010 |
XKU304,344 |
1 | ||
| 87937A - HOLDER, MIRROR, LH | ||||
| 87937-37010 |
XKU304,344 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-37602 |
XKU304 塗装不要,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-=ﾌﾞﾗﾂｸ, ｼﾖｰﾄｽﾃｰ(L=275)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37650 |
XKU304,344 ﾒｯｷ,ｸﾛﾑ ﾒﾂｷ, ﾛﾝｸﾞ ｽﾃｰ(L=385),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37612 |
XKU304,344 塗装不要,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-=ﾌﾞﾗﾂｸ, ﾛﾝｸﾞｽﾃｰ(L=370)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37A50 |
XKU304 塗装不要,ﾌﾞﾗﾂｸ, ｼﾖｰﾄｽﾃｰ(L=290),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37640 |
XKU304 ﾒｯｷ,ｸﾛﾑ ﾒﾂｷ, ｼﾖｰﾄ ｽﾃｰ(L=290),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37680 |
XKU304 ﾒｯｷ,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-=ｸﾛﾑ ﾒﾂｷ, ｼﾖｰﾄｽﾃｰ(L=275)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37A70 |
XKU304 塗装不要,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-=ﾌﾞﾗﾂｸ, ｼﾖｰﾄｽﾃｰ(L=275)),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37700 |
XKU304 塗装不要,ﾌﾞﾗﾂｸ, ｼﾖｰﾄｽﾃｰ(L=290),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37A90 |
XKU304,344 塗装不要,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-=ﾌﾞﾗﾂｸ, ﾛﾝｸﾞｽﾃｰ(L=370)),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37690 |
XKU304,344 ﾒｯｷ,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-=ｸﾛﾑ ﾒﾂｷ, ﾛﾝｸﾞｽﾃｰ(L=370)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37A60 |
XKU304,344 塗装不要,ﾌﾞﾗﾂｸ, ﾛﾝｸﾞｽﾃｰ(L=385),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37710 |
XKU304,344 塗装不要,ﾌﾞﾗﾂｸ, ﾛﾝｸﾞｽﾃｰ(L=385),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-37602 |
XKU304 塗装不要,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-=ﾌﾞﾗﾂｸ, ｼﾖｰﾄｽﾃｰ(L=275)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37650 |
XKU304,344 ﾒｯｷ,ｸﾛﾑ ﾒﾂｷ, ﾛﾝｸﾞ ｽﾃｰ(L=385),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37612 |
XKU304,344 塗装不要,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-=ﾌﾞﾗﾂｸ, ﾛﾝｸﾞｽﾃｰ(L=370)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37A50 |
XKU304 塗装不要,ﾌﾞﾗﾂｸ, ｼﾖｰﾄｽﾃｰ(L=290),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37640 |
XKU304 ﾒｯｷ,ｸﾛﾑ ﾒﾂｷ, ｼﾖｰﾄ ｽﾃｰ(L=290),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37680 |
XKU304 ﾒｯｷ,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-=ｸﾛﾑ ﾒﾂｷ, ｼﾖｰﾄｽﾃｰ(L=275)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37A70 |
XKU304 塗装不要,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-=ﾌﾞﾗﾂｸ, ｼﾖｰﾄｽﾃｰ(L=275)),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37700 |
XKU304 塗装不要,ﾌﾞﾗﾂｸ, ｼﾖｰﾄｽﾃｰ(L=290),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37A90 |
XKU304,344 塗装不要,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-=ﾌﾞﾗﾂｸ, ﾛﾝｸﾞｽﾃｰ(L=370)),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37690 |
XKU304,344 ﾒｯｷ,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-=ｸﾛﾑ ﾒﾂｷ, ﾛﾝｸﾞｽﾃｰ(L=370)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37A60 |
XKU304,344 塗装不要,ﾌﾞﾗﾂｸ, ﾛﾝｸﾞｽﾃｰ(L=385),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37710 |
XKU304,344 塗装不要,ﾌﾞﾗﾂｸ, ﾛﾝｸﾞｽﾃｰ(L=385),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-37602 |
XKU304 塗装不要,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-=ﾌﾞﾗﾂｸ, ｼﾖｰﾄｽﾃｰ(L=275)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37650 |
XKU304,344 ﾒｯｷ,ｸﾛﾑ ﾒﾂｷ, ﾛﾝｸﾞ ｽﾃｰ(L=385),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37612 |
XKU304,344 塗装不要,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-=ﾌﾞﾗﾂｸ, ﾛﾝｸﾞｽﾃｰ(L=370)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37A50 |
XKU304 塗装不要,ﾌﾞﾗﾂｸ, ｼﾖｰﾄｽﾃｰ(L=290),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37640 |
XKU304 ﾒｯｷ,ｸﾛﾑ ﾒﾂｷ, ｼﾖｰﾄ ｽﾃｰ(L=290),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37680 |
XKU304 ﾒｯｷ,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-=ｸﾛﾑ ﾒﾂｷ, ｼﾖｰﾄｽﾃｰ(L=275)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37A70 |
XKU304 塗装不要,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-=ﾌﾞﾗﾂｸ, ｼﾖｰﾄｽﾃｰ(L=275)),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37700 |
XKU304 塗装不要,ﾌﾞﾗﾂｸ, ｼﾖｰﾄｽﾃｰ(L=290),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37A90 |
XKU304,344 塗装不要,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-=ﾌﾞﾗﾂｸ, ﾛﾝｸﾞｽﾃｰ(L=370)),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37690 |
XKU304,344 ﾒｯｷ,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-=ｸﾛﾑ ﾒﾂｷ, ﾛﾝｸﾞｽﾃｰ(L=370)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37A60 |
XKU304,344 塗装不要,ﾌﾞﾗﾂｸ, ﾛﾝｸﾞｽﾃｰ(L=385),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 87940-37710 |
XKU304,344 塗装不要,ﾌﾞﾗﾂｸ, ﾛﾝｸﾞｽﾃｰ(L=385),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87942 - MOTOR, MIRROR, LH | ||||
| 87942-37010 |
XKU304,344 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-37010B0 |
XKU304,344 ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,SILVER ME.,199 |
1 | ||
| 87945-37010A0 |
XKU304,344 ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,WHITE,058 |
1 | ||
| 87945-37020B1 |
XKU304 JORSEY CREAM,9A7 |
1 | ||
| 87945-37020B0 |
XKU304,344 SILVER ME.,199 |
1 | ||
| 87945-37010H0 |
XKU304,344 ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,TURQUOISE,766 |
1 | ||
| 87945-37020J1 |
XKU304,344 BLUE,8P0 |
1 | ||
| 87945-37020H0 |
XKU304,344 TURQUOISE,766 |
1 | ||
| 87945-37050 |
XKU304,344 ﾒｯｷ,ｸﾛﾑ ﾒｯｷ |
1 | ||
| 87945-37020A0 |
XKU304,344 WHITE,058 |
1 | ||
| 87945-37010B1 |
XKU304 ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,JORSEY CREAM,9A7 |
1 | ||
| 87945-37010J1 |
XKU304,344 ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,BLUE,8P0 |
1 | ||
| 87945-37040 |
XKU304,344 ﾒｯｷ,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-),ｸﾛﾑ ﾒｯｷ |
1 | ||
| 87965 - GROMMET, OUTER MIRROR | ||||
| 87965-37010 |
XKU304,344 左側 & 右側 |
2 | ||
| 87965-37020 |
XKU304,344 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-),左側 |
1 | ||
| 87965-37010 |
XKU304,344 右側 |
1 | ||
| 87968 - HOLDER, MIRROR, OUTER LH | ||||
| 87968-37020 |
XKU304,344 |
1 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 87929-37020 | ||||
| 90119-08C00 | ||||
| 90249-06132 | ||||
