XKU304H-TPMMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )

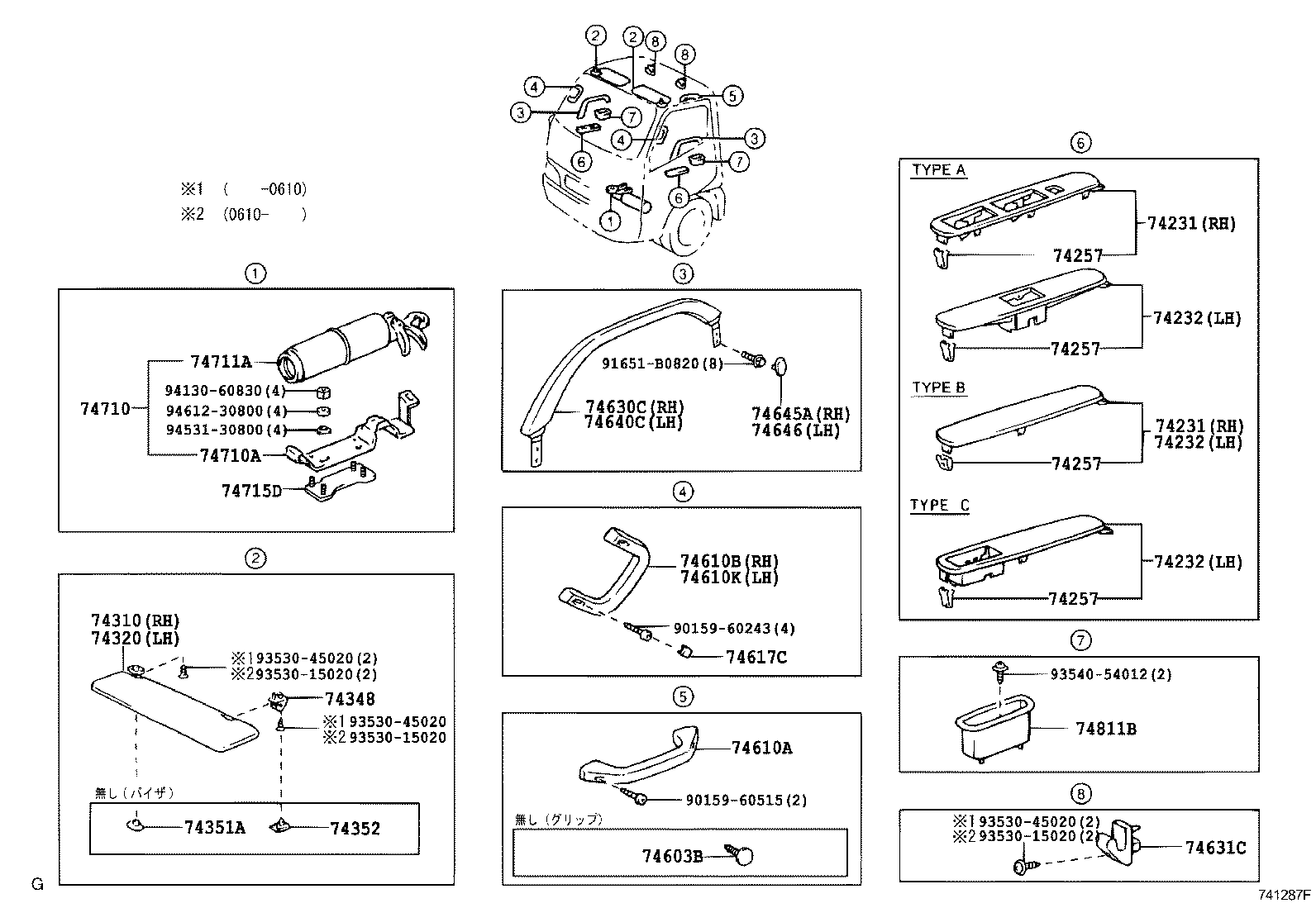

Click highlighted areas on diagram

diagram 74231 74231 74232 74232 74232 74257 74257 74257 74257 74310 74320 74348 74351A 74352 74603B 74610A 74610B 74610K 74617C 74630C 74631C 74640C 74645A 74646 74710 74710A 74711A 74715D 74811B 9015960243 9015960515 91651B0820 9353015020 9353015020 9353015020 9353045020 9353045020 9353045020 9354054012 9413060830 9453130800 9461230800
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-37020B0

XKU304,344

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
74231-37012B0

XKU304,344

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-37020B0

XKU304,344

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
74231-37012B0

XKU304,344

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74231-37020B0

XKU304,344

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
74232-37010B0

XKU304,344

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74231-37020B0

XKU304,344

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
74232-37010B0

XKU304,344

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74231-37020B0

XKU304,344

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
74232-37010B0

XKU304,344

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
74257 - SPRING, ARMREST, NO.1
74257-37010

XKU304,344

 2
74257 - SPRING, ARMREST, NO.1
74257-37010

XKU304,344

 2
74257 - SPRING, ARMREST, NO.1
74257-37010

XKU304,344

 2
74257 - SPRING, ARMREST, NO.1
74257-37010

XKU304,344

 2
74310 - VISOR ASSY, RH
74310-37320B0

XKU304,344

MD.CHARCOAL,TRIM1#

 1
74310-37400B0

XKU304,344

MD.CHARCOAL,TRIM1#

 1
74310-37330B0

XKU304,344

ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
74310-37530B0

XKU304,344

MD.CHARCOAL,TRIM1#

 1
74310-37410B0

XKU304,344

ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
74310-37540B0

XKU304,344

ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-37220B0

XKU304,344

ﾅｼ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ/SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
74320-37100B0

XKU304,344

ｱﾘ(SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
74320-37140B0

XKU304,344

MD.CHARCOAL,TRIM1#

 1
74320-37020B0

XKU304,344

MD.CHARCOAL,TRIM1#

 1
74320-37150B0

XKU304,344

ｱﾘ(SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
74320-37230B0

XKU304,344

ｱﾘ(SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
74348 - HOLDER, VISOR
74348-22020B9

XKU304,344

MD.CHARCOAL,TRIM1#

 2
74348-22020B9

XKU304,344

ｱﾘ(ﾊﾞｲｻﾞ = ｳﾝﾃﾝｾｷ ﾉﾐ),MD.CHARCOAL,TRIM1#

 1
74351A - COVER, VISOR, NO.1
74351-35010B2

XKU304,344

MD.CHARCOAL,TRIM1#

 1
74352 - COVER, VISOR, NO.2
74352-35010B2

XKU304,344

MD.CHARCOAL,TRIM1#

 1
74603B - CLIP (FOR ASSIST GRIP)
90467-05101B2

XKU304,344

MD.CHARCOAL,TRIM1#

 2
74610A - GRIP SUB-ASSY, ASSIST
74611-89101B2

XKU304,344

MD.CHARCOAL,TRIM1#

 1
74610B - GRIP ASSY, ASSIST, NO.2 RH
74610-95404B1

XKU304,344

MD.CHARCOAL,TRIM1#

 1
74610K - GRIP ASSY, ASSIST, NO.2 LH
74610-95404B1

XKU304,344

MD.CHARCOAL,TRIM1#

 1
74617C - PLUG, ASSIST GRIP
74617-95J00B1

XKU304,344

MD.CHARCOAL,TRIM1#

 4
74630C - GRIP ASSY, DOOR ASSIST, RH
74630-37020B0

XKU304,344

MD.CHARCOAL,TRIM1#

 1
74631C - HOOK, COAT
74348-22020B9

XKU304,344

MD.CHARCOAL,TRIM1#

 2
74640C - GRIP ASSY, DOOR ASSIST, LH
74640-37010B0

XKU304,344

MD.CHARCOAL,TRIM1#

 1
74645A - COVER, DOOR ASSIST GRIP, RH
74645-37010B0

XKU304,344

MD.CHARCOAL,TRIM1#

 1
74646 - COVER, DOOR ASSIST GRIP, LH
74646-37010B0

XKU304,344

MD.CHARCOAL,TRIM1#

 1
74710 - EXTINGUISHER ASSY
74701-37010

XKU304,344

***

 1
74710A - BRACKET, EXTINGUISHER
74712-37010

XKU304,344

 1
74711A - EXTINGUISHER
74711-37010

XKU304,344

 1
74715D - RETAINER, EXTINGUISHER, NO.1
74715-37020

XKU304,344

 1
74811B - HANDLE, DOOR PULL
74811-95J04B2

XKU304,344

MD.CHARCOAL,TRIM1#

 2
Common parts
90159-60243
90159-60515
91651-B0820
93530-15020
93530-45020
93540-54012
94130-60830
94531-30800
94612-30800
