XKU304H-TPMMW3 (2003)
Toyota Dyna/Toyoace Hv
Production
Oct 2003
-
Oct 2006
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

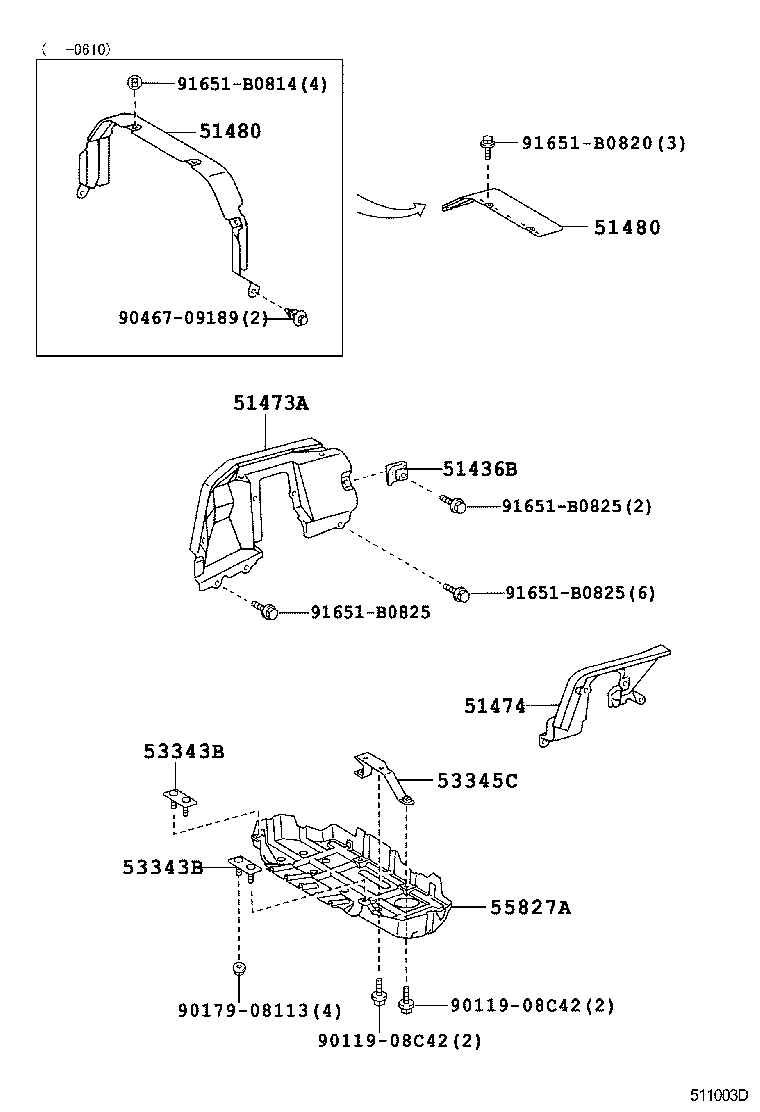

ILLUST NO. 1 OF 2(0310- )XKU304,344
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH | ||||
| 51436-37080 |
XKU304,344 |
2 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-37180 |
XKU304,344 |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51474-37120 |
XKU304,344 |
1 | ||
| 51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH | ||||
| 51480-37010 |
XKU304 |
1 | ||
| 51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH | ||||
| 51480-37010 |
XKU304 |
1 | ||
| 53343B - BRACKET, AIR DEFLECTOR, NO.1 | ||||
| 53343-37020 |
XKU304,344 |
2 | ||
| 53343B - BRACKET, AIR DEFLECTOR, NO.1 | ||||
| 53343-37020 |
XKU304,344 |
2 | ||
| 53345C - BRACKET, AIR DEFLECTOR, NO.2 | ||||
| 53345-37030 |
XKU304,344 |
1 | ||
| 55827A - DUCT, VENTILATOR AIR GUIDE | ||||
| 55827-37051 |
XKU304,344 |
1 | ||
| 55827-37050 |
XKU304,344 |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90179-08113 | ||||
| 90467-09189 | ||||
| 91651-B0814 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||

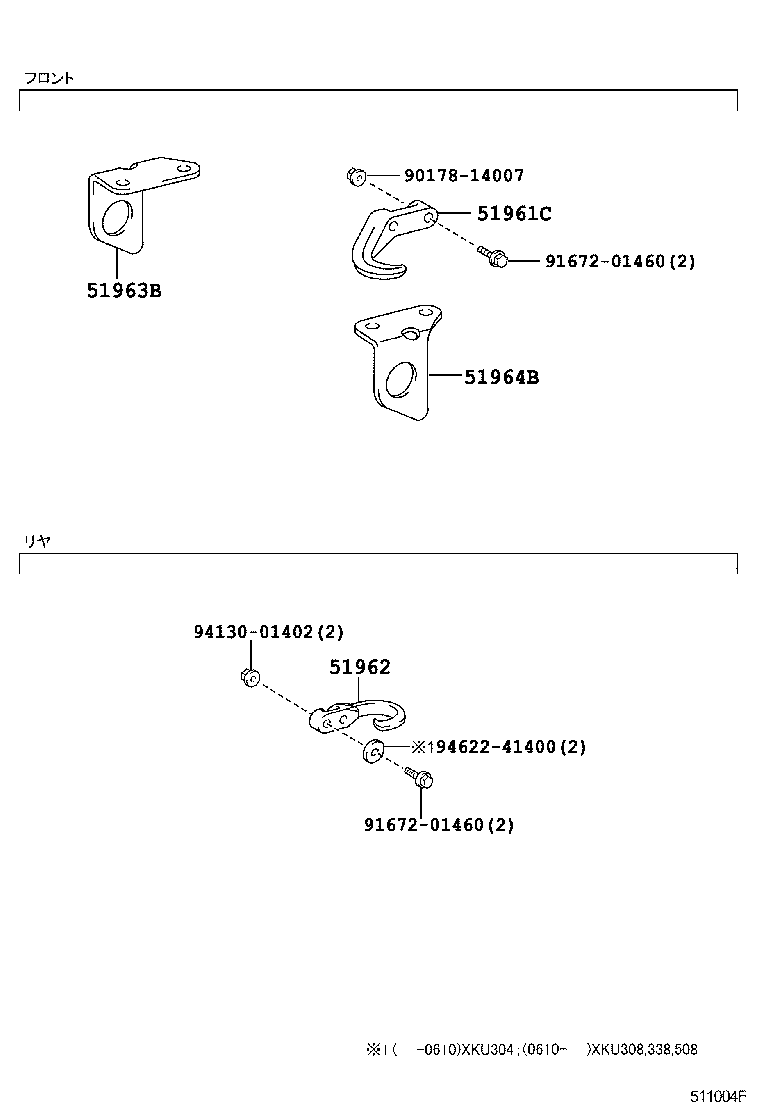

ILLUST NO. 2 OF 2(0310- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51961C - HOOK, FRONT | ||||
| 51961-37070 |
XKU304,344..20T |
1 | ||
| 51962 - HOOK, NO.2 | ||||
| 51961-36040 |
XKU304,344 |
1 | ||
| 51963B - HOOK, TRANSPORT, FRONT RH | ||||
| 51963-37030 |
XKU304,344 |
1 | ||
| 51964B - HOOK, TRANSPORT, FRONT LH | ||||
| 51964-37040 |
XKU304,344 |
1 | ||
| Common parts | ||||
| 90178-14007 | ||||
| 91672-01460 | ||||
| 94130-01402 | ||||
| 94622-41400 | ||||
