XKU304H-TPMMW3 (2003)
Toyota Dyna/Toyoace Hv
(0310-0610)

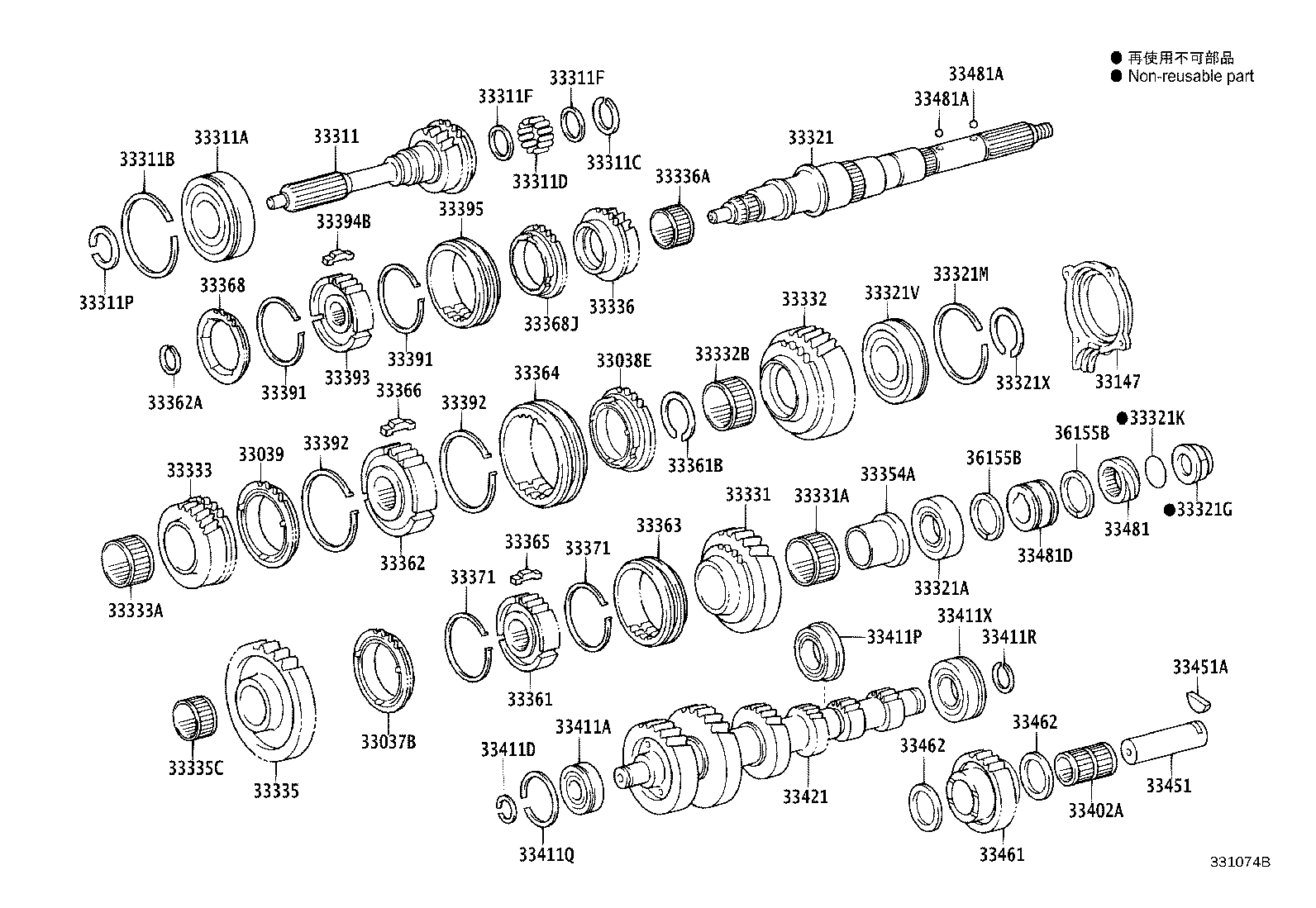

H351
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33037B - RING SET, SYNCHRONIZER, NO.1 | ||||
| 33037-37030 |
XKU304,344 |
1 | ||
| 33038E - RING SET, SYNCHRONIZER, NO.2 | ||||
| 33037-37022 |
XKU304,344 |
1 | ||
| 33039 - RING SET, SYNCHRONIZER, NO.3 | ||||
| 33038-37012 |
XKU304,344 |
1 | ||
| 33147 - RETAINER, BEARING, CENTER | ||||
| 33147-37011 |
XKU304,344 |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33301-37220 |
XKU304,344 |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-50007 |
XKU304,344 |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-99010 |
XKU304,344 厚さ=2.36−2.46 |
1 | ||
| 33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER) | ||||
| 96151-04500 |
XKU304,344 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-09002 |
XKU304,344 |
12 | ||
| 33311F - SPACER (FOR INPUT SHAFT) | ||||
| 90560-38004 |
XKU304,344 |
2 | ||
| 33311F - SPACER (FOR INPUT SHAFT) | ||||
| 90560-38004 |
XKU304,344 |
2 | ||
| 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-45004 |
XKU304,344 厚さ=2.55−2.60,ﾏｰｸ B |
1 | ||
| 90520-45005 |
XKU304,344 厚さ=2.60−2.65,ﾏｰｸ C |
1 | ||
| 90520-45003 |
XKU304,344 厚さ=2.50−2.55,ﾏｰｸ A |
1 | ||
| 90520-45006 |
XKU304,344 厚さ=2.65−2.70,ﾏｰｸ D |
1 | ||
| 90520-45007 |
XKU304,344 厚さ=2.70−2.75,ﾏｰｸ E |
1 | ||
| 90520-45008 |
XKU304,344 厚さ=2.75−2.80,ﾏｰｸ F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-37060 |
XKU304,344 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-38007 |
XKU304,344 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-24008 |
XKU304,344 |
1 | ||
| 33321K - RING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NU | ||||
| 90301-31003 |
XKU304,344 |
1 | ||
| 33321M - RING, SHAFT SNAP (FOR BEARING) | ||||
| 90520-99009 |
XKU304,344 内径=106.1,外径=115.64 |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-45019 |
XKU304,344 |
1 | ||
| 33321X - RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90520-41009 |
XKU304,344 厚さ=2.55−2.60,ﾏｰｸ D |
1 | ||
| 90520-41012 |
XKU304,344 厚さ=2.70,ﾏｰｸ G |
1 | ||
| 90520-41008 |
XKU304,344 厚さ=2.50−2.55,ﾏｰｸ C |
1 | ||
| 90520-41007 |
XKU304,344 厚さ=2.45−2.50,ﾏｰｸ B |
1 | ||
| 90520-41013 |
XKU304,344 厚さ=2.75,ﾏｰｸ H |
1 | ||
| 90520-41011 |
XKU304,344 厚さ=2.65,ﾏｰｸ F |
1 | ||
| 90520-41006 |
XKU304,344 厚さ=2.40−2.45,ﾏｰｸ A |
1 | ||
| 90520-41010 |
XKU304,344 厚さ=2.60,ﾏｰｸ E |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-37050 |
XKU304,344 |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-47008 |
XKU304,344 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-37030 |
XKU304,344 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-50003 |
XKU304,344 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-37050 |
XKU304,344 |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-58007 |
XKU304,344 |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-37080 |
XKU304,344 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-44004 |
XKU304,344 |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-37050 |
XKU304,344 |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-38020 |
XKU304,344 |
1 | ||
| 33354A - RACE, REVERSE GEAR BEARING, INNER | ||||
| 33354-37010 |
XKU304,344 |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-37030 |
XKU304,344 |
1 | ||
| 33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1) | ||||
| 90520-46007 |
XKU304,344 厚さ=3.05−3.10,ﾏｰｸ D |
1 | ||
| 90520-46004 |
XKU304,344 厚さ=2.90−2.95,ﾏｰｸ A |
1 | ||
| 90520-46009 |
XKU304,344 厚さ=3.15−3.20,ﾏｰｸ F |
1 | ||
| 90520-46008 |
XKU304,344 厚さ=3.10−3.15,ﾏｰｸ E |
1 | ||
| 90520-46006 |
XKU304,344 厚さ=3.00−3.05,ﾏｰｸ C |
1 | ||
| 90520-46005 |
XKU304,344 厚さ=2.95−3.00,ﾏｰｸ B |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33361-37040 |
XKU304,344 |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-28056 |
XKU304,344 厚さ=2.00−2.05,ﾏｰｸ 6 |
1 | ||
| 90520-28054 |
XKU304,344 厚さ=1.90−1.95,ﾏｰｸ 4 |
1 | ||
| 90520-28055 |
XKU304,344 厚さ=1.95−2.00,ﾏｰｸ 5 |
1 | ||
| 90520-28057 |
XKU304,344 厚さ=2.05−2.10,ﾏｰｸ 7 |
1 | ||
| 90520-28058 |
XKU304,344 厚さ=2.10−2.15,ﾏｰｸ 8 |
1 | ||
| 90520-28059 |
XKU304,344 厚さ=2.15−2.20,ﾏｰｸ 9 |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-37040 |
XKU304,344 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-37031 |
XKU304,344 |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-37030 |
XKU304,344 |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33365-60010 |
XKU304,344 |
3 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-60022 |
XKU304,344 |
1 | ||
| 33368J - RING, SYNCHRONIZER (FOR 5TH GEAR) | ||||
| 33368-60043 |
XKU304,344 |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-37030 |
XKU304,344 |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-37030 |
XKU304,344 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-60010 |
XKU304,344 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-60010 |
XKU304,344 |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33371-37030 |
XKU304,344 |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33371-37030 |
XKU304,344 |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-37020 |
XKU304,344 |
1 | ||
| 33394B - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-37010 |
XKU304,344 |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-37020 |
XKU304,344 |
1 | ||
| 33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR) | ||||
| 90364-28010 |
XKU304,344 |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-30030 |
XKU304,344 |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-27055 |
XKU304,344 厚さ=2.55−2.60,ﾏｰｸ C |
1 | ||
| 90520-27054 |
XKU304,344 厚さ=2.50−2.55,ﾏｰｸ B |
1 | ||
| 90520-27053 |
XKU304,344 厚さ=2.45−2.50,ﾏｰｸ A |
1 | ||
| 90520-27057 |
XKU304,344 厚さ=2.65−2.70,ﾏｰｸ E |
1 | ||
| 90520-27058 |
XKU304,344 厚さ=2.70−2.75,ﾏｰｸ F |
1 | ||
| 90520-27056 |
XKU304,344 厚さ=2.60−2.65,ﾏｰｸ D |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-36004 |
XKU304,344 |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-63001 |
XKU304,344 厚さ=1.60−1.70 |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-29033 |
XKU304,344 厚さ=2.45−2.50,ﾏｰｸ B |
1 | ||
| 90520-29037 |
XKU304,344 厚さ=2.65−2.70,ﾏｰｸ F |
1 | ||
| 90520-29036 |
XKU304,344 厚さ=2.60−2.65,ﾏｰｸ E |
1 | ||
| 90520-29034 |
XKU304,344 厚さ=2.50−2.55,ﾏｰｸ C |
1 | ||
| 90520-29035 |
XKU304,344 厚さ=2.55−2.60,ﾏｰｸ D |
1 | ||
| 90520-29032 |
XKU304,344 厚さ=2.40−2.45,ﾏｰｸ A |
1 | ||
| 90520-29038 |
XKU304,344 厚さ=2.70−2.75,ﾏｰｸ G |
1 | ||
| 33411X - BEARING, RADIAL BALL | ||||
| 90363-32038 |
XKU304,344 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-37120 |
XKU304,344 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-37020 |
XKU304,344 |
1 | ||
| 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90280-03002 |
XKU304,344 |
1 | ||
| 33461 - GEAR, REVERSE IDLER | ||||
| 33461-37030 |
XKU304,344 |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-60020 |
XKU304,344 |
2 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-60020 |
XKU304,344 |
2 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-36150 |
XKU304 歯数=6,ﾏｰｸ 6X20−22 |
1 | ||
| 33481-37020 |
XKU304,344 歯数=7,ﾏｰｸ 7X20−22 |
1 | ||
| 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) | ||||
| 90360-06004 |
XKU304,344 |
2 | ||
| 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) | ||||
| 90360-06004 |
XKU304,344 |
2 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 33487-37020 |
XKU304,344 |
1 | ||
| 36155B - RING, TRANSFER OIL SEAL | ||||
| 36155-36020 |
XKU304,344 |
2 | ||
| 36155B - RING, TRANSFER OIL SEAL | ||||
| 36155-36020 |
XKU304,344 |
2 | ||
