XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv
Production
Oct 2006
-
Aug 2009
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0610- )

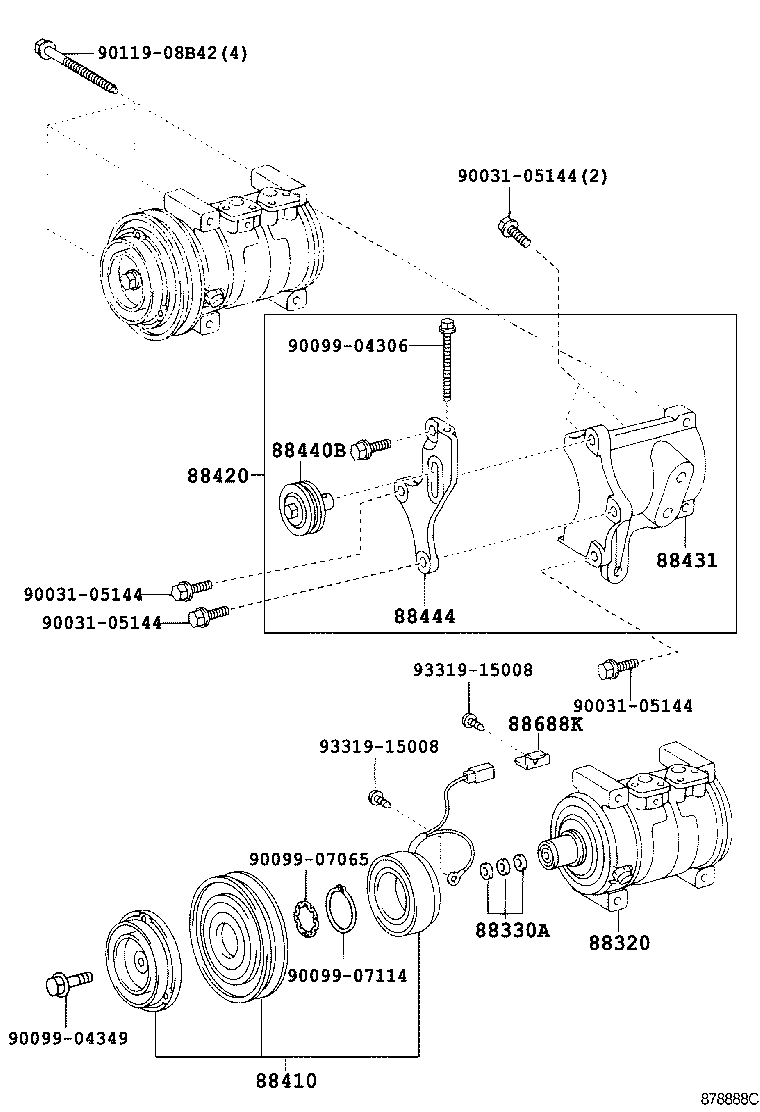

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-37110 |
XKU304,344 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
XKU304,344 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-17100 |
XKU304,344 |
1 | ||
| 88420 - PULLEY ASSY, IDLE, W/BRACKET | ||||
| 88420-37230 |
XKU304,344 |
1 | ||
| 88420-37230 |
XKU30#,338,34#,508 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-37130 |
XKU304,344 |
1 | ||
| 88431-37130 |
XKU30#,338,34#,508 |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-37120 |
XKU304,344 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-37160 |
XKU304,344 |
1 | ||
| 88444-37160 |
XKU30#,338,34#,508 |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-3V580 |
XKU304,344 |
1 | ||
| Common parts | ||||
| 90031-05144 | ||||
| 90099-04306 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-08B42 | ||||
| 93319-15008 | ||||
