XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv
Production
Oct 2006
-
Aug 2009
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0610- )

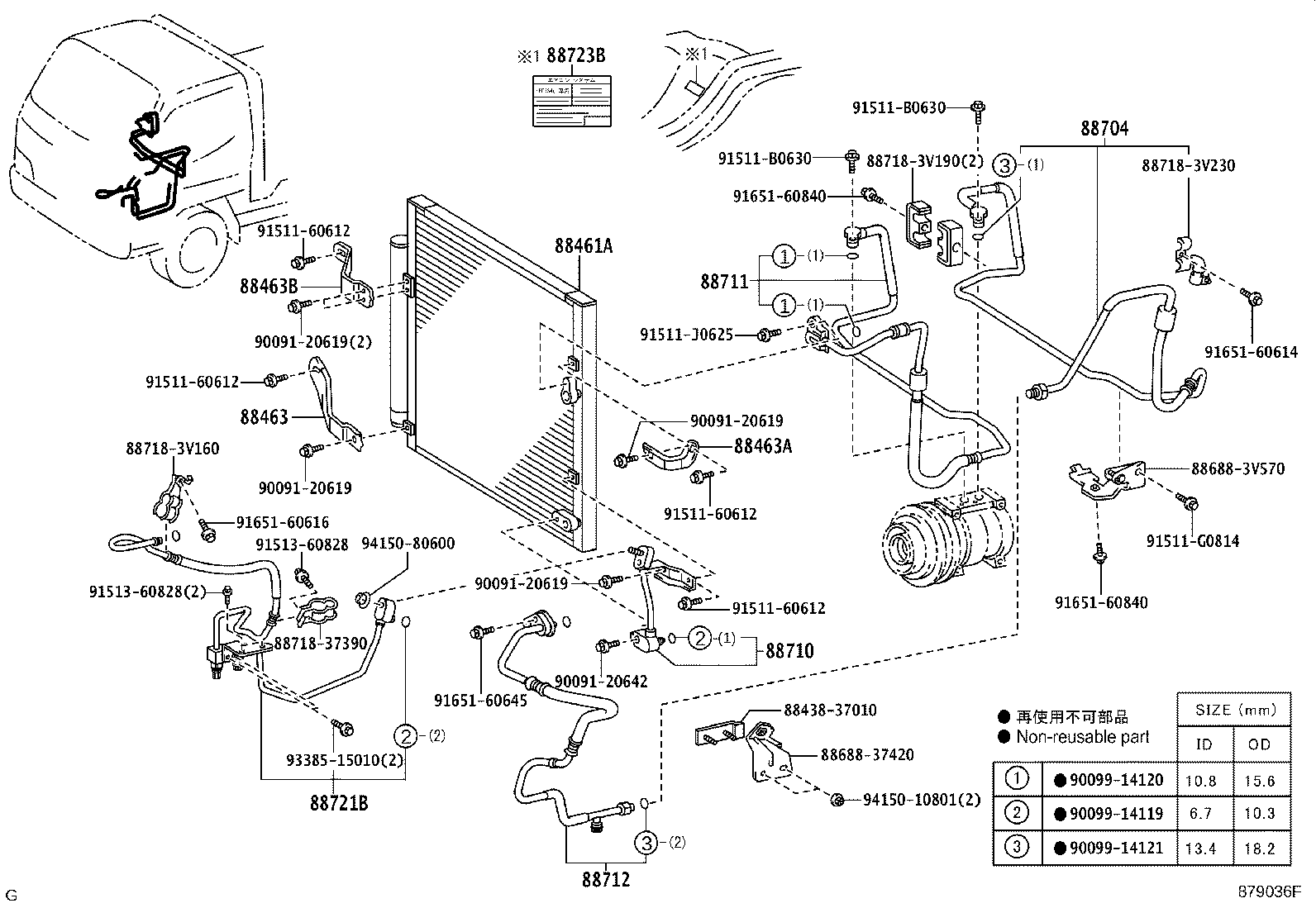

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-37140 |
XKU304,344 NO.2 |
1 | ||
| 88463-25110 |
XKU304,344 NO.1 |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-37150 |
XKU304,344 |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-37160 |
XKU304,344 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-37030 |
XKU30#,338,34#,508 |
1 | ||
| 88704-37030 |
XKU304,344 |
1 | ||
| 88704-37100 |
XKU30#,338,34#,508 |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-37490 |
XKU30#,338,34#,508 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-37860 |
XKU304,344 |
1 | ||
| 88711-3V110 |
XKU30#,338,34#,508 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-3V430 |
XKU304,344 |
1 | ||
| 88712-3V430 |
XKU30#,338,34#,508 |
1 | ||
| 88721B - HOSE, LIQUID, B | ||||
| 88721-3V070 |
XKU30#,338,34#,508 |
1 | ||
| 88721-37870 |
XKU304,344 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88733-27010 |
XKU304,344 |
1 | ||
| Common parts | ||||
| 88438-37010 | ||||
| 88688-37420 | ||||
| 88688-3V570 | ||||
| 88718-37390 | ||||
| 88718-3V160 | ||||
| 88718-3V190 | ||||
| 88718-3V230 | ||||
| 90091-20619 | ||||
| 90091-20642 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 91511-60612 | ||||
| 91511-B0630 | ||||
| 91511-G0814 | ||||
| 91511-J0625 | ||||
| 91513-60828 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| 91651-60645 | ||||
| 91651-60840 | ||||
| 93385-15010 | ||||
| 94150-10801 | ||||
| 94150-80600 | ||||
