XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv
Production
Oct 2006
-
Aug 2009
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0610- )

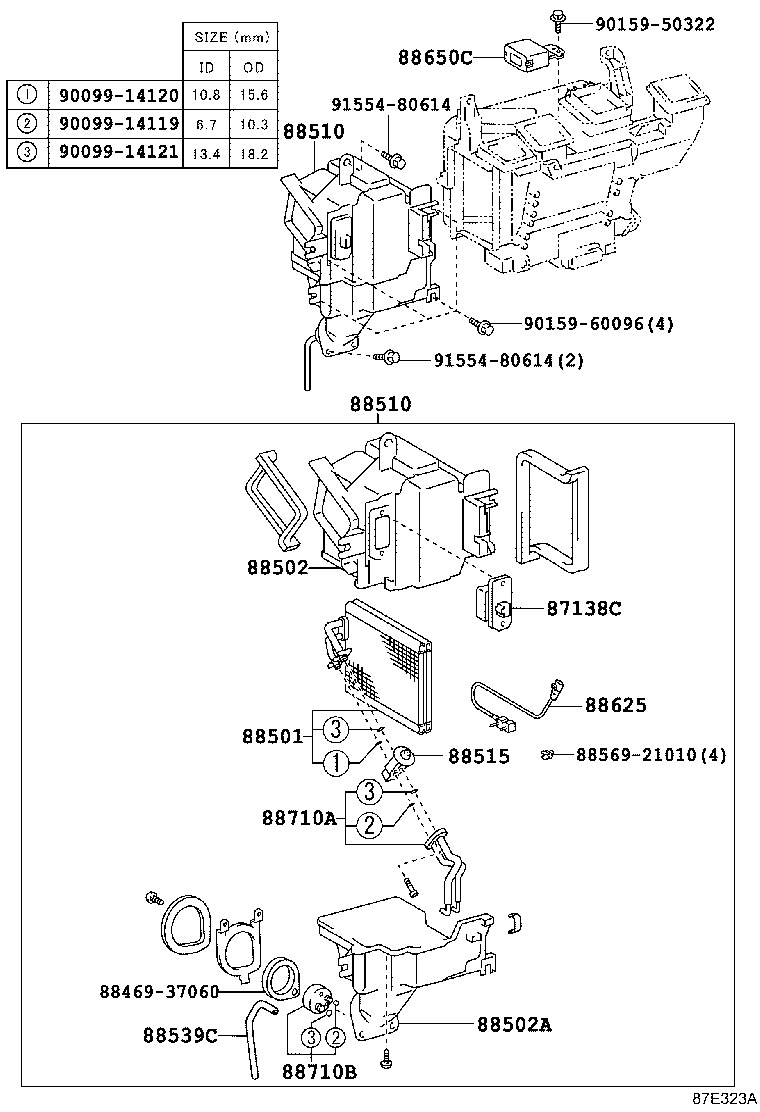

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138C - RESISTOR, BLOWER | ||||
| 87138-37090 |
XKU304,344 |
1 | ||
| 87138-37220 |
XKU30#,338,34#,508 |
1 | ||
| 87138-37090 |
XKU30#,338,34#,508 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-37060 |
XKU304,344 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-37050 |
XKU304,344 |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-37040 |
XKU304,344 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-37120 |
XKU304,344 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-37120 |
XKU304,344 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-48040 |
XKU304,344 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-37060 |
XKU304,344 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-20460 |
XKU304,344 |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-37120 |
XKU304,344 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-37340 |
XKU304,344 |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-37350 |
XKU304,344 |
1 | ||
| Common parts | ||||
| 88469-37060 | ||||
| 88569-21010 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-50322 | ||||
| 90159-60096 | ||||
| 91554-80614 | ||||
