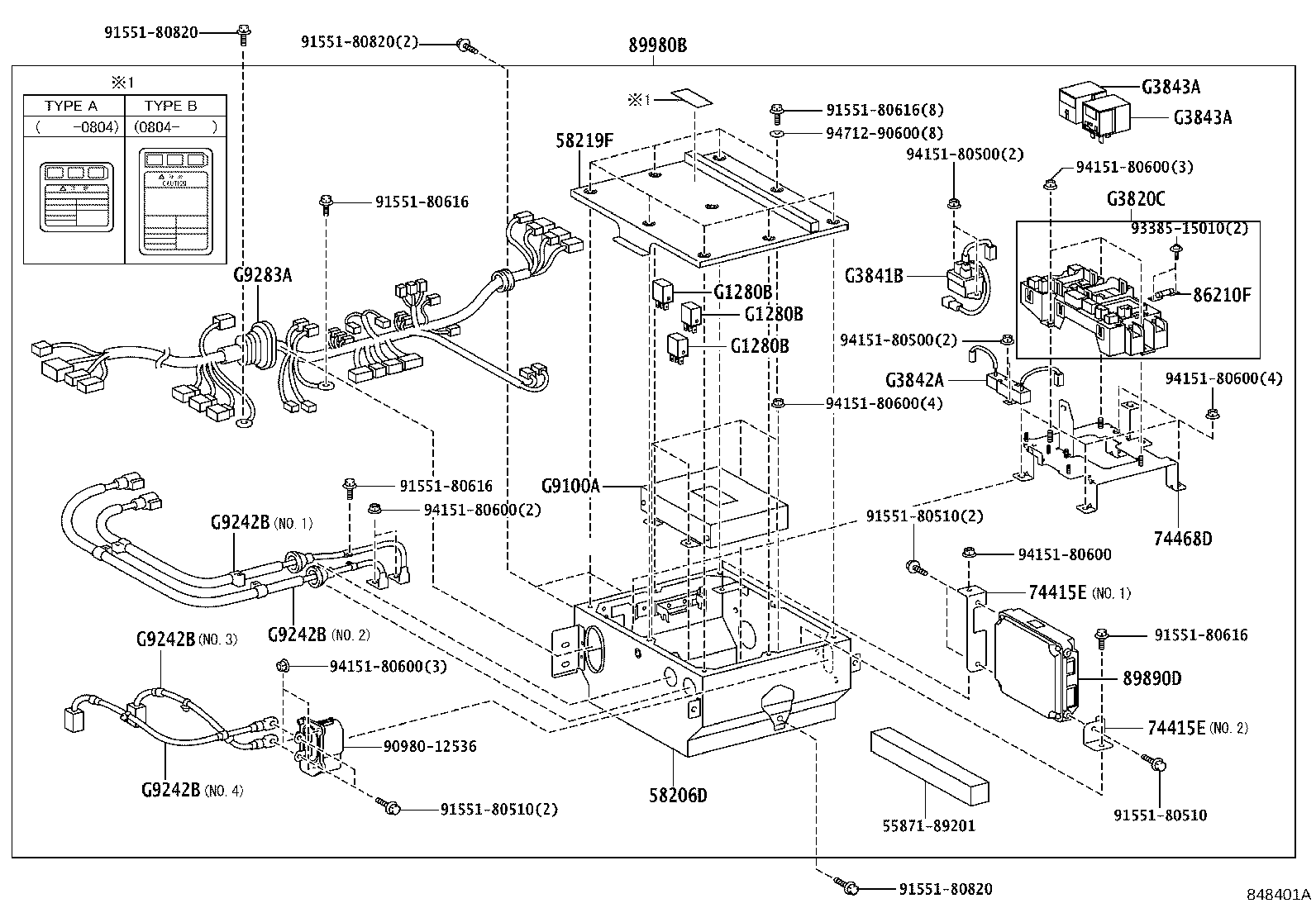

Toyota Dyna/toyoace hv XKU304 HV CONTROL COMPUTER

Part #	Description	Period	Qty
58206D - BOX SUB-ASSY, BATTERY
58206-89201	XKU30#,338,34#,508	10/2006 - 12/2999	1
58219F - COVER, BATTERY BOX
58219-89201	XKU30#,338,34#,508	10/2006 - 12/2999	1
74415E - BRACKET, BATTERY ECU
74415-89202	XKU30#,338,34#,508 NO.2	10/2006 - 12/2999	1
74415-89201	XKU30#,338,34#,508 NO.1	10/2006 - 12/2999	1
74415E - BRACKET, BATTERY ECU
74415-89202	XKU30#,338,34#,508 NO.2	10/2006 - 12/2999	1
74415-89201	XKU30#,338,34#,508 NO.1	10/2006 - 12/2999	1
74468D - BRACKET, RELAY BLOCK
74468-89201	XKU30#,338,34#,508	10/2006 - 12/2999	1
86210F - FUSE, HIGH VOLTAGE
90982-11051	XKU30#,338,34#,508	10/2006 - 12/2999	1
89890D - COMPUTER ASSY, BATTERY
89890-89201	XKU30#,338,34#,508	10/2006 - 12/2999	1
89980B - COMPUTER ASSY, HYBRID VEHICLE
89980-89212	XKU30#,338,34#,508..5F ﾗﾍﾞﾙ=TYPE B	04/2008 - 11/2008	1
89980-89203	XKU30#,338,34#,508 ﾗﾍﾞﾙ=TYPE A	10/2006 - 04/2007	1
89980-89210	XKU30#,338,34#,508..5F ﾗﾍﾞﾙ=TYPE A	05/2007 - 04/2008	1
G1280B - RELAY, ELECTRIC VEHICLE CONTROL COMPUTER
90987-02017	XKU30#,338,34#,508	10/2006 - 12/2999	3
G1280B - RELAY, ELECTRIC VEHICLE CONTROL COMPUTER
90987-02017	XKU30#,338,34#,508	10/2006 - 12/2999	3
G1280B - RELAY, ELECTRIC VEHICLE CONTROL COMPUTER
90987-02017	XKU30#,338,34#,508	10/2006 - 12/2999	3
G3820C - BOX ASSY, ELECTRIC VEHICLE JUNCTION
G3820-89201	XKU30#,338,34#,508	10/2006 - 12/2999	1
G3841B - RELAY, SYSTEM MAIN, NO.1
G3841-89201	XKU30#,338,34#,508	10/2006 - 12/2999	1
G3842A - RESISTOR, SYSTEM MAIN
G3842-89201	XKU30#,338,34#,508	10/2006 - 12/2999	1
G3843A - RELAY, SYSTEM MAIN, NO.2
G3843-33010	XKU30#,338,34#,508..5F	10/2006 - 11/2008	2
G3841-89301	XKU30#,338,34#,508..5F..DCRTJ	11/2008 - 12/2999	2
G3843A - RELAY, SYSTEM MAIN, NO.2
G3843-33010	XKU30#,338,34#,508..5F	10/2006 - 11/2008	2
G3841-89301	XKU30#,338,34#,508..5F..DCRTJ	11/2008 - 12/2999	2
G9100A - CONTROLLER ASSY, EV UNIT
G9100-89203	XKU30#,338,34#,508	10/2006 - 04/2007	1
G9100-89210	XKU30#,338,34#,508..5F	05/2007 - 11/2008	1
G9100-89240	XKU30#,338,34#,508..5F	11/2008 - 12/2999	1
G9242B - CABLE, MAIN BATTERY
G9242-89201	XKU30#,338,34#,508 NO.1	10/2006 - 12/2999	1
G9242-89204	XKU30#,338,34#,508 NO.4	10/2006 - 12/2999	1
G9242-89203	XKU30#,338,34#,508 NO.3	10/2006 - 12/2999	1
G9242-89202	XKU30#,338,34#,508 NO.2	10/2006 - 12/2999	1
G9242B - CABLE, MAIN BATTERY
G9242-89201	XKU30#,338,34#,508 NO.1	10/2006 - 12/2999	1
G9242-89204	XKU30#,338,34#,508 NO.4	10/2006 - 12/2999	1
G9242-89203	XKU30#,338,34#,508 NO.3	10/2006 - 12/2999	1
G9242-89202	XKU30#,338,34#,508 NO.2	10/2006 - 12/2999	1
G9242B - CABLE, MAIN BATTERY
G9242-89201	XKU30#,338,34#,508 NO.1	10/2006 - 12/2999	1
G9242-89204	XKU30#,338,34#,508 NO.4	10/2006 - 12/2999	1
G9242-89203	XKU30#,338,34#,508 NO.3	10/2006 - 12/2999	1
G9242-89202	XKU30#,338,34#,508 NO.2	10/2006 - 12/2999	1
G9242B - CABLE, MAIN BATTERY
G9242-89201	XKU30#,338,34#,508 NO.1	10/2006 - 12/2999	1
G9242-89204	XKU30#,338,34#,508 NO.4	10/2006 - 12/2999	1
G9242-89203	XKU30#,338,34#,508 NO.3	10/2006 - 12/2999	1
G9242-89202	XKU30#,338,34#,508 NO.2	10/2006 - 12/2999	1
G9283A - WIRE, HYBRID BATTERY
G9283-89201	XKU30#,338,34#,508	10/2006 - 04/2008	1
G9283-89210	XKU30#,338,34#,508	04/2008 - 12/2999	1
Common parts
55871-89201
90980-12536
91551-80510
91551-80616
91551-80820
93385-15010
94151-80500
94151-80600
94712-90600

XKU304A-TYMMB3 (2006)

(0610- )
