XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv
Production
Oct 2006
-
Aug 2009
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0610- )

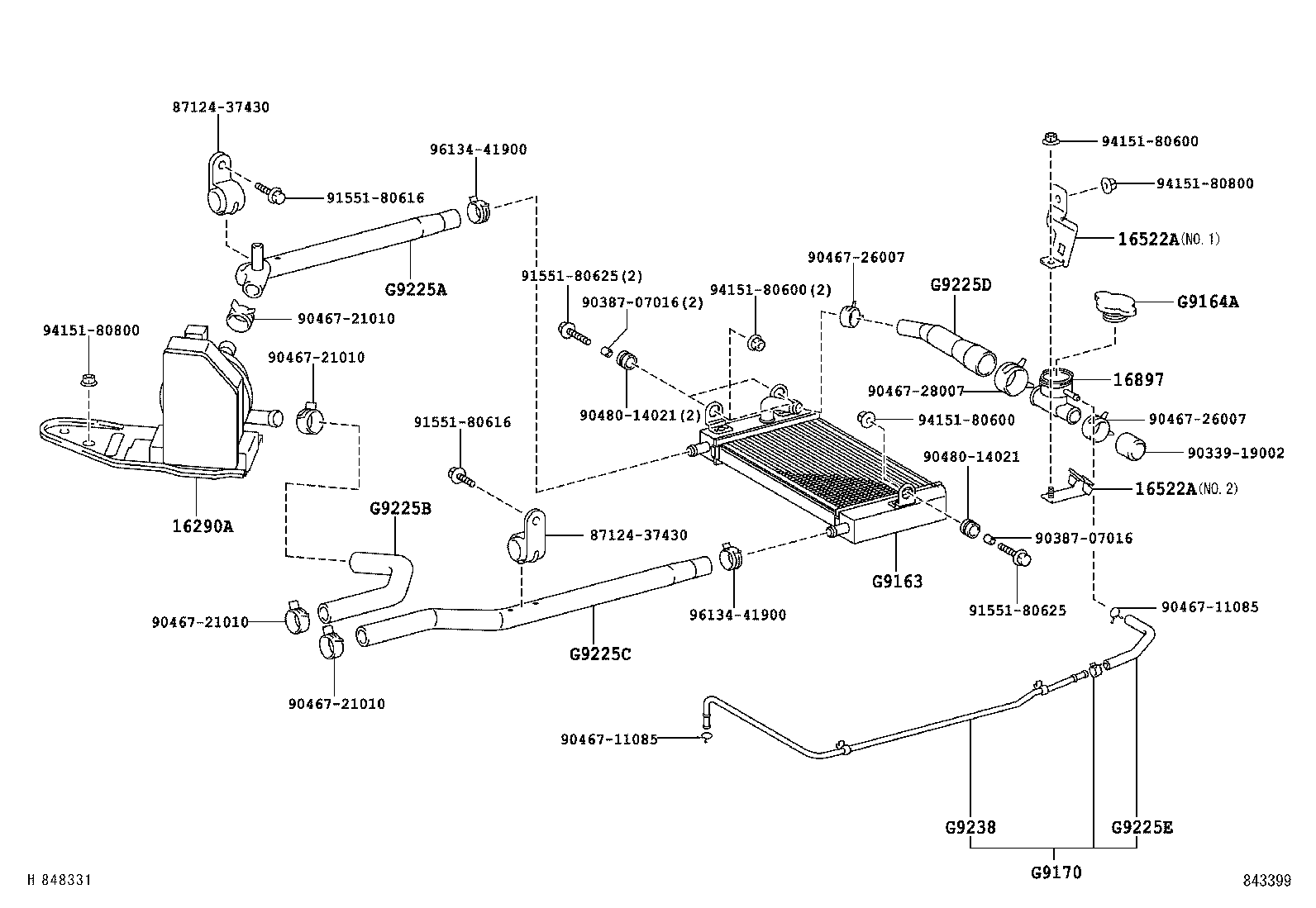

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16290A - PUMP ASSY, WATER W/MOTOR & BRACKET | ||||
| G9020-47022 |
N04C..XKU30#,338,34#,508 |
1 | ||
| G9020-47021 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 16522A - BRACKET, WATER FILLER | ||||
| 16522-89201 |
N04C..XKU30#,338,34#,508 NO.1 |
1 | ||
| 16522-89202 |
N04C..XKU30#,338,34#,508 NO.2 |
1 | ||
| 16522A - BRACKET, WATER FILLER | ||||
| 16522-89201 |
N04C..XKU30#,338,34#,508 NO.1 |
1 | ||
| 16522-89202 |
N04C..XKU30#,338,34#,508 NO.2 |
1 | ||
| 16897 - NECK, FILLER | ||||
| 16897-89201 |
N04C..XKU30#,338,34#,508 |
1 | ||
| G9163 - RADIATOR, INVERTER | ||||
| G9163-89201 |
XKU30#,338,34#,508 |
1 | ||
| G9164A - CAP, INVERTER RADIATOR | ||||
| G9164-89101 |
XKU30#,338,34#,508 |
1 | ||
| G9170 - PIPE ASSY, INVERTER COOLING NO.1 | ||||
| G9170-89201 |
XKU30#,338,34#,508 |
1 | ||
| G9225A - HOSE, INVERTER COOLING, NO.7 | ||||
| G9225-89201 |
XKU30#,338,34#,508 |
1 | ||
| G9225B - HOSE, INVERTER COOLING, NO.8 | ||||
| G9226-89201 |
XKU30#,338,34#,508 |
1 | ||
| G9225C - HOSE, INVERTER COOLING, NO.9 | ||||
| G9227-89201 |
XKU30#,338,34#,508 |
1 | ||
| G9225D - HOSE, INVERTER COOLING, NO.10 | ||||
| G9228-89201 |
XKU30#,338,34#,508 |
1 | ||
| G9225E - HOSE, INVERTER COOLING, NO.11 | ||||
| G9229-89201 |
XKU30#,338,34#,508 |
1 | ||
| G9238 - PIPE, INVERTER COOLING | ||||
| G9238-89201 |
XKU30#,338,34#,508 |
1 | ||
| Common parts | ||||
| 87124-37430 | ||||
| 90339-19002 | ||||
| 90387-07016 | ||||
| 90467-11085 | ||||
| 90467-21010 | ||||
| 90467-26007 | ||||
| 90467-28007 | ||||
| 90480-14021 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 96134-41900 | ||||
