XKU304A-TYMMB3 (2006)

Toyota Dyna/Toyoace Hv

Production Oct 2006 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

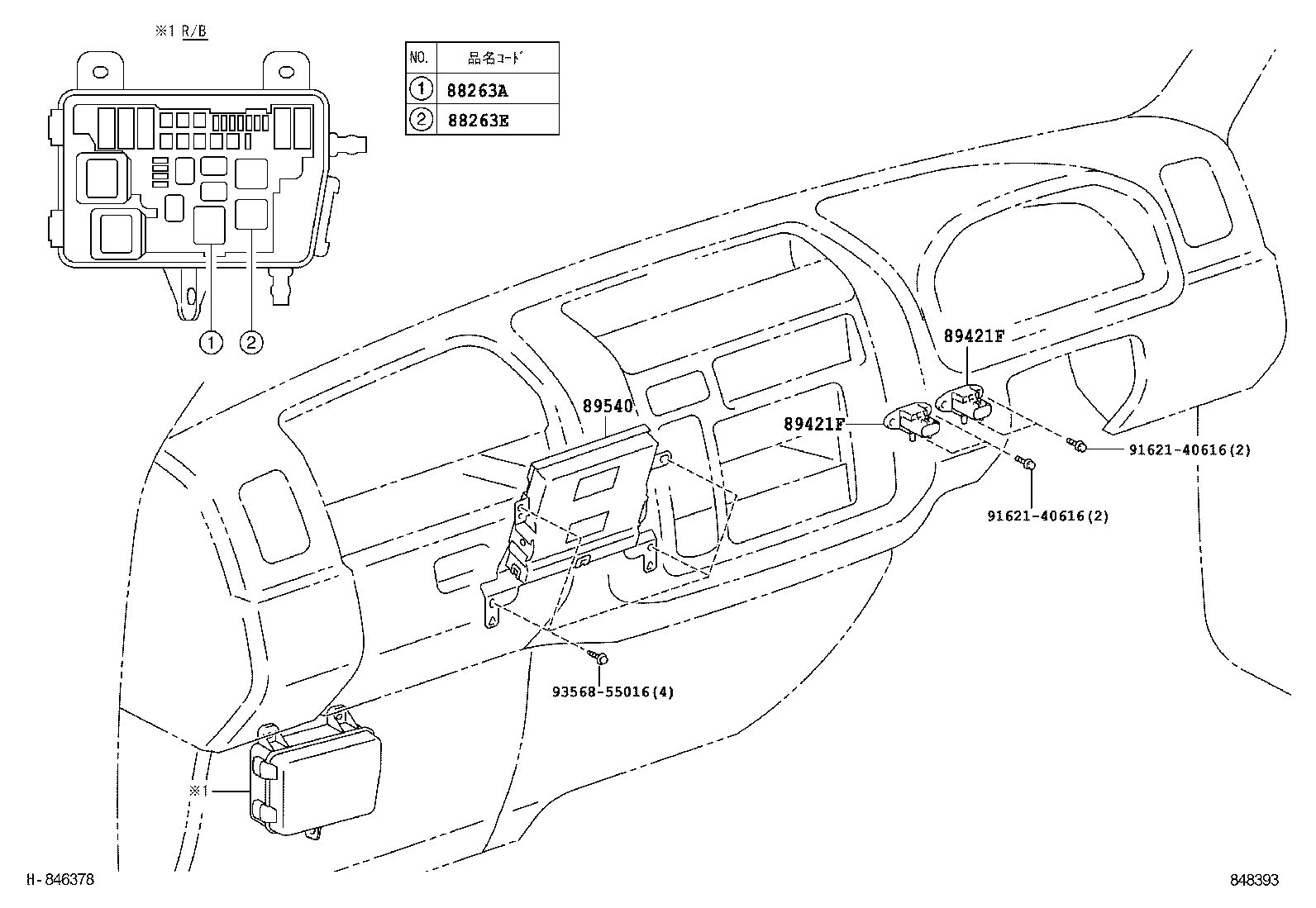

ILLUST NO. 1 OF 3(0610- )

Click highlighted areas on diagram

ｶｳﾙ

diagram 88263A 88263E 89421F 89421F 89540 9162140616 9162140616 9356855016
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-36040

XKU30#,338,34#,508

 1
88263-36040

XKU304,344

 1
88263E - RELAY, SKID CONTROL NO.2
88263-36050

XKU304,344

 1
88263-36050

XKU30#,338,34#,508

 1
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37010

XKU304,344

 2
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37010

XKU304,344

 2
89540 - COMPUTER ASSY, SKID CONTROL
89540-37310

XKU30#,338,508..5F

 1
89540-37220

XKU304

 1
Common parts
91621-40616
93568-55016

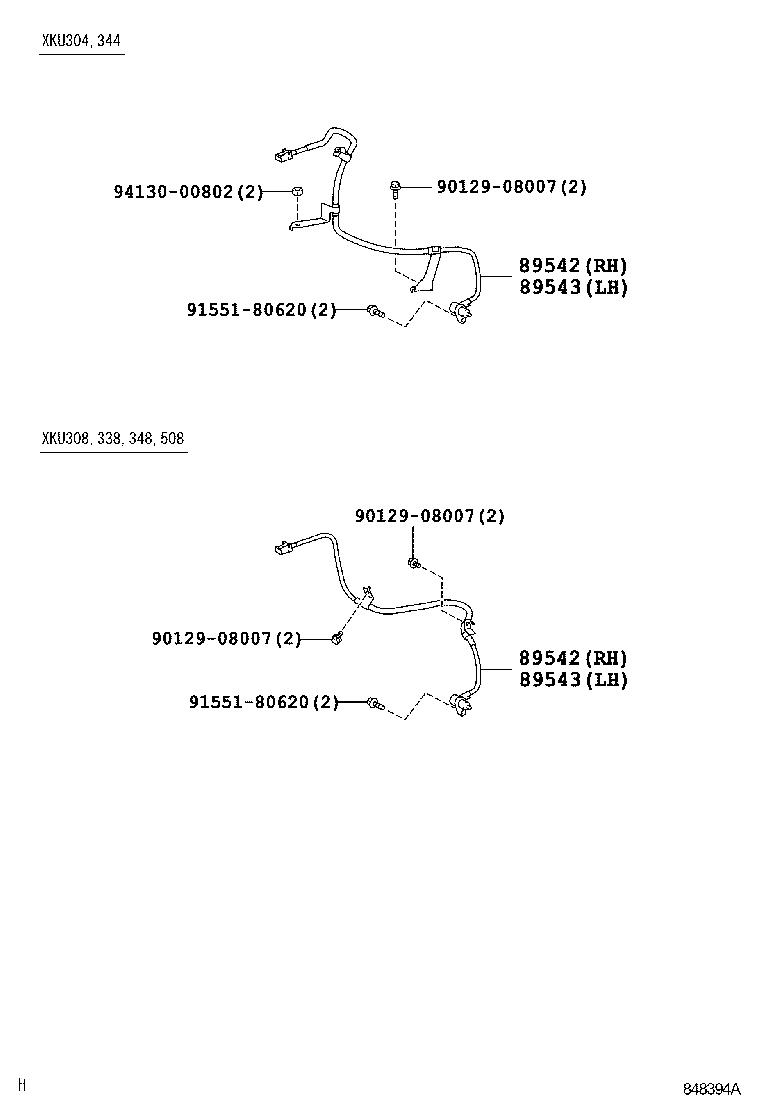

ILLUST NO. 2 OF 3(0610- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｽﾋﾟ-ﾄﾞｾﾝｻ

diagram 89542 89542 89543 89543 9012908007 9012908007 9012908007 9155180620 9155180620 9413000802
Part # Description Qty Price
89542 - SENSOR, SPEED, FRONT RH
89542-37070

XKU304,344

 1
89542 - SENSOR, SPEED, FRONT RH
89542-37070

XKU304,344

 1
89543 - SENSOR, SPEED, FRONT LH
89543-37100

XKU304,344

 1
89543 - SENSOR, SPEED, FRONT LH
89543-37100

XKU304,344

 1
Common parts
90129-08007
91551-80620
94130-00802

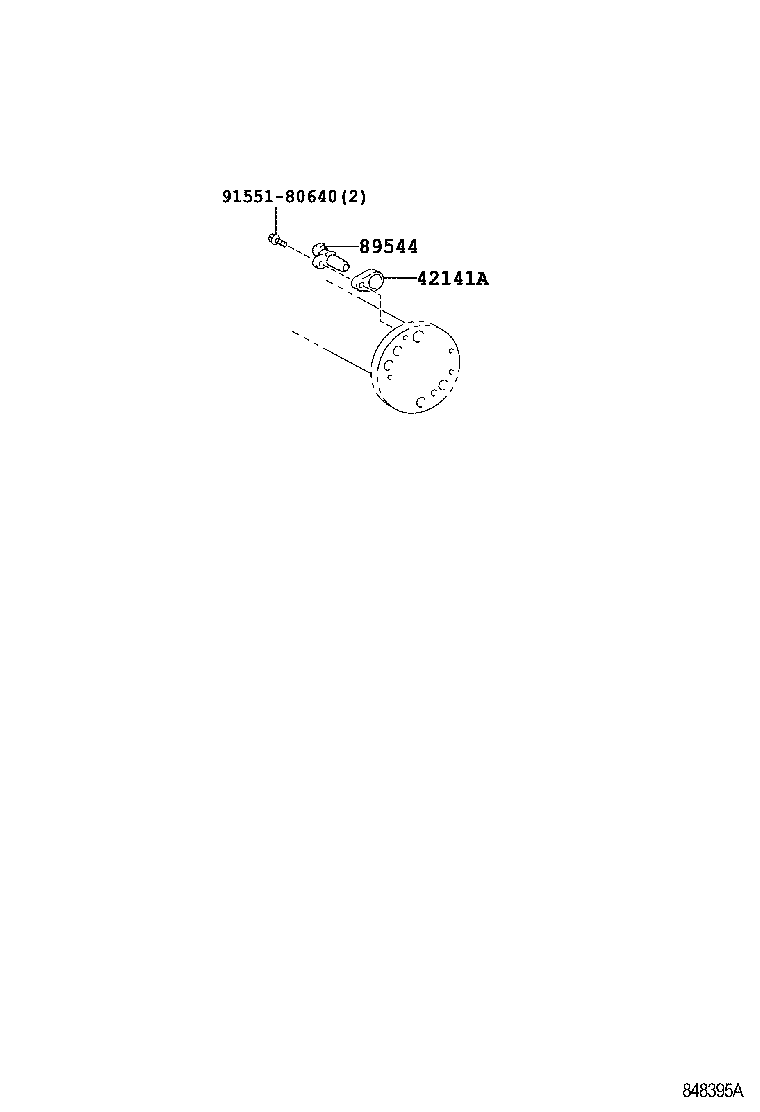

ILLUST NO. 3 OF 3(0610- )

Click highlighted areas on diagram

ﾘﾔ ｽﾋﾟ-ﾄﾞｾﾝｻ

diagram 42141A 89544 9155180640
Part # Description Qty Price
89544 - SENSOR, SKID CONTROL
89544-36030

XKU304,344

 2
Common parts
91551-80640
