XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv
Production
Oct 2006
-
Aug 2009
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0610- )

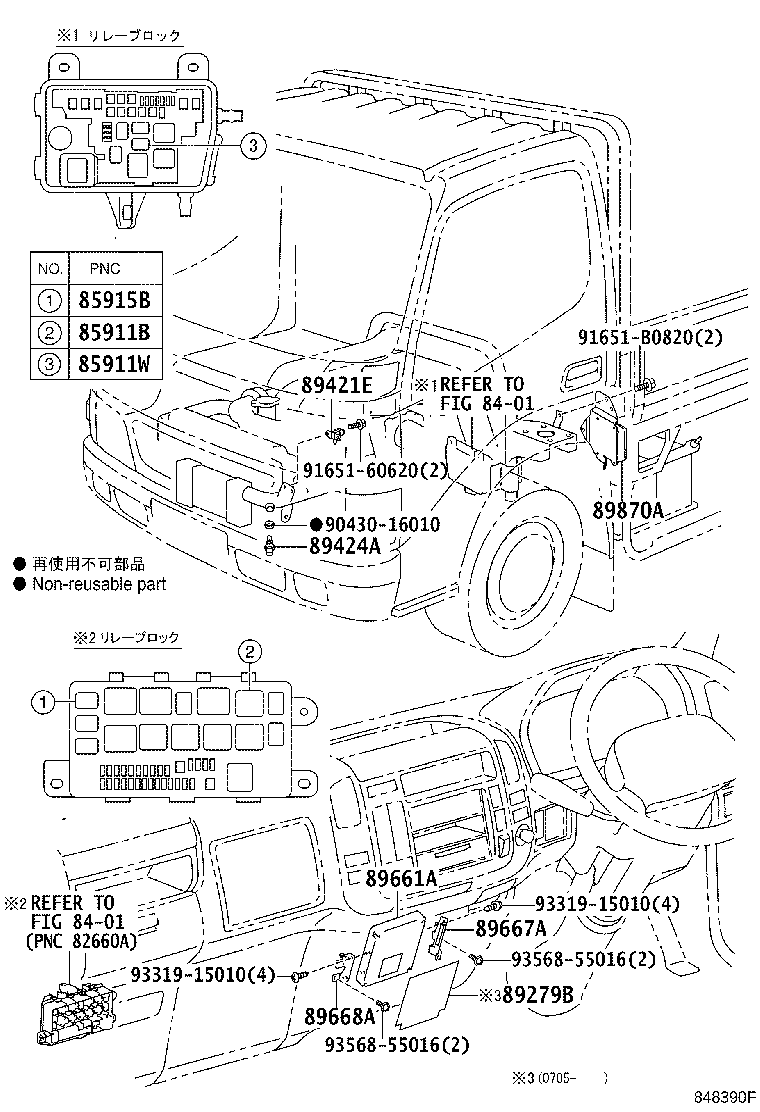

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85911B - RELAY, COMPUTER (FOR DIESEL TURBO) | ||||
| 28490-78010 |
XKU30#,338,34#,508 |
1 | ||
| 85915B - RELAY, MAIN (FOR DIESEL TURBO) | ||||
| 90987-02017 |
XKU304,344 |
1 | ||
| 90987-02027 |
XKU30#,338,34#,508 |
1 | ||
| 89279B - COVER, DIESEL ENGINE CONTROL COMPUTOR | ||||
| 89279-12150 |
XKU30#,338,34#,508 |
1 | ||
| 89421E - SENSOR, VACUUM | ||||
| 89420-37030 |
XKU304,344 |
1 | ||
| 89420-37030 |
XKU30#,338,34#,508 |
1 | ||
| 89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO) | ||||
| 89424-60010 |
XKU304,344 |
1 | ||
| 89424-60010 |
XKU30#,338,34#,508 |
1 | ||
| 89661A - COMPUTER, ENGINE CONTROL | ||||
| 89661-37380 |
XKU304,344 DENSO,MARK = R2 |
1 | ||
| 89661-37751 |
XKU30#,338,34#,508..5F DENSO |
1 | ||
| 89661-37750 |
XKU30#,338,34#,508 DENSO |
1 | ||
| 89661-37752 |
XKU30#,338,34#,508..5F DENSO |
1 | ||
| 89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-37070 |
XKU30#,338,34#,508 |
1 | ||
| 89667-37070 |
XKU304,344 |
1 | ||
| 89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-37070 |
XKU304,344 |
1 | ||
| 89668-37070 |
XKU30#,338,34#,508 |
1 | ||
| 89870A - DRIVER ASSY, INJECTOR | ||||
| 89870-37080 |
XKU30#,338,34#,508 |
1 | ||
| 89870-37030 |
XKU304,344 |
1 | ||
| Common parts | ||||
| 90430-16010 | ||||
| 91651-60620 | ||||
| 91651-B0820 | ||||
| 93319-15010 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
