XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv

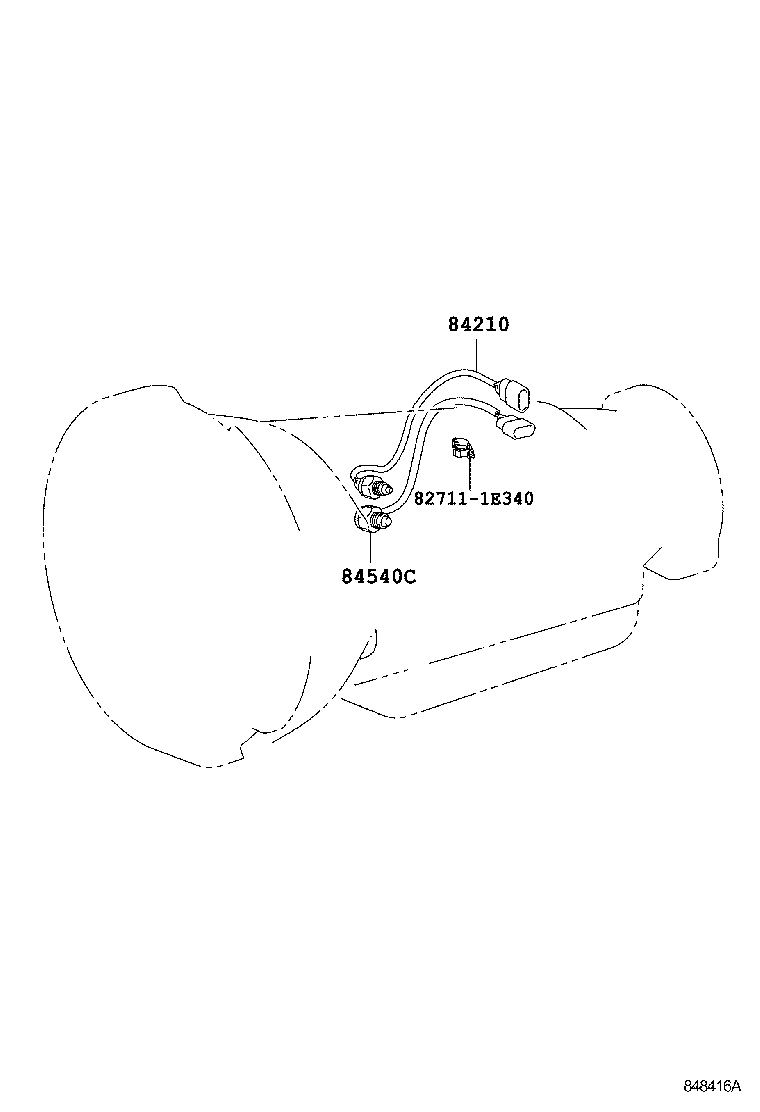

ILLUST NO. 2 OF 8(0610- )5F
ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
XKU304,344 |
1 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-37020 |
XKU304,344 |
1 | ||
| Common parts | ||||
| 82711-1E340 | ||||

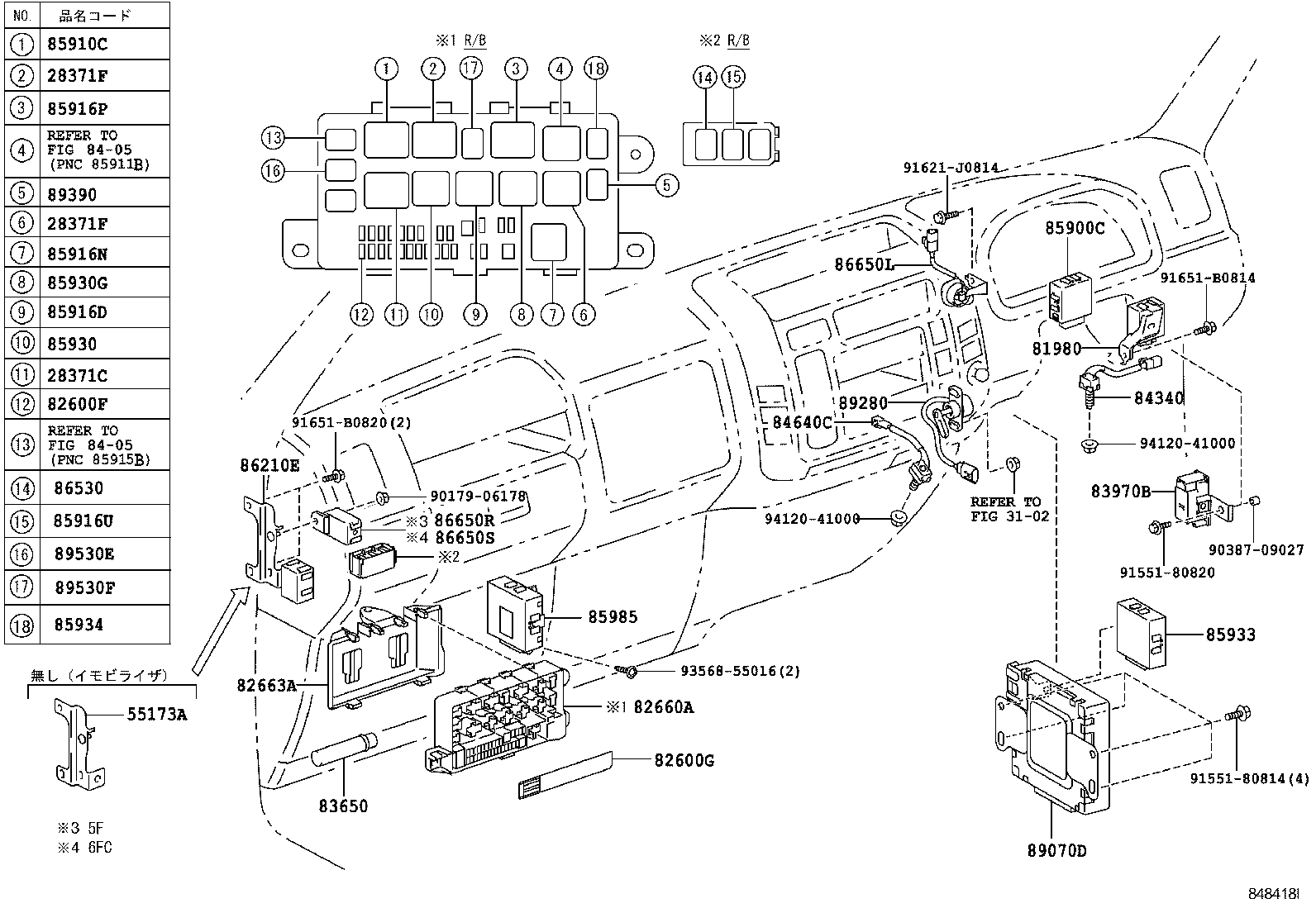

ILLUST NO. 3 OF 8(0610- )
RELAY BLOCK NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371D - RELAY, IGNITION, NO.3 | ||||
| 90987-02018 |
N04C..XKU304,344 |
1 | ||
| 90987-02018 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 85900-37130 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 28610-58230 |
N04C..XKU304,344 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
XKU304,344 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
XKU304,344 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
XKU304,344 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
XKU304,344 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09011 |
XKU304,344 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37310 |
XKU30#,338,34#,508 |
1 | ||
| 82662-37250 |
XKU304,344 |
1 | ||
| 82662-37311 |
XKU304..DCRUE;XKU304..5F..DCRTJ;XKU308,338,34#,508 |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37010 |
XKU304,344 |
1 | ||
| 82760-37010 |
XKU30#,338,34#,508 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02017 |
XKU304,344 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 91651-B0825 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8405 | ||||
| 8414 | ||||

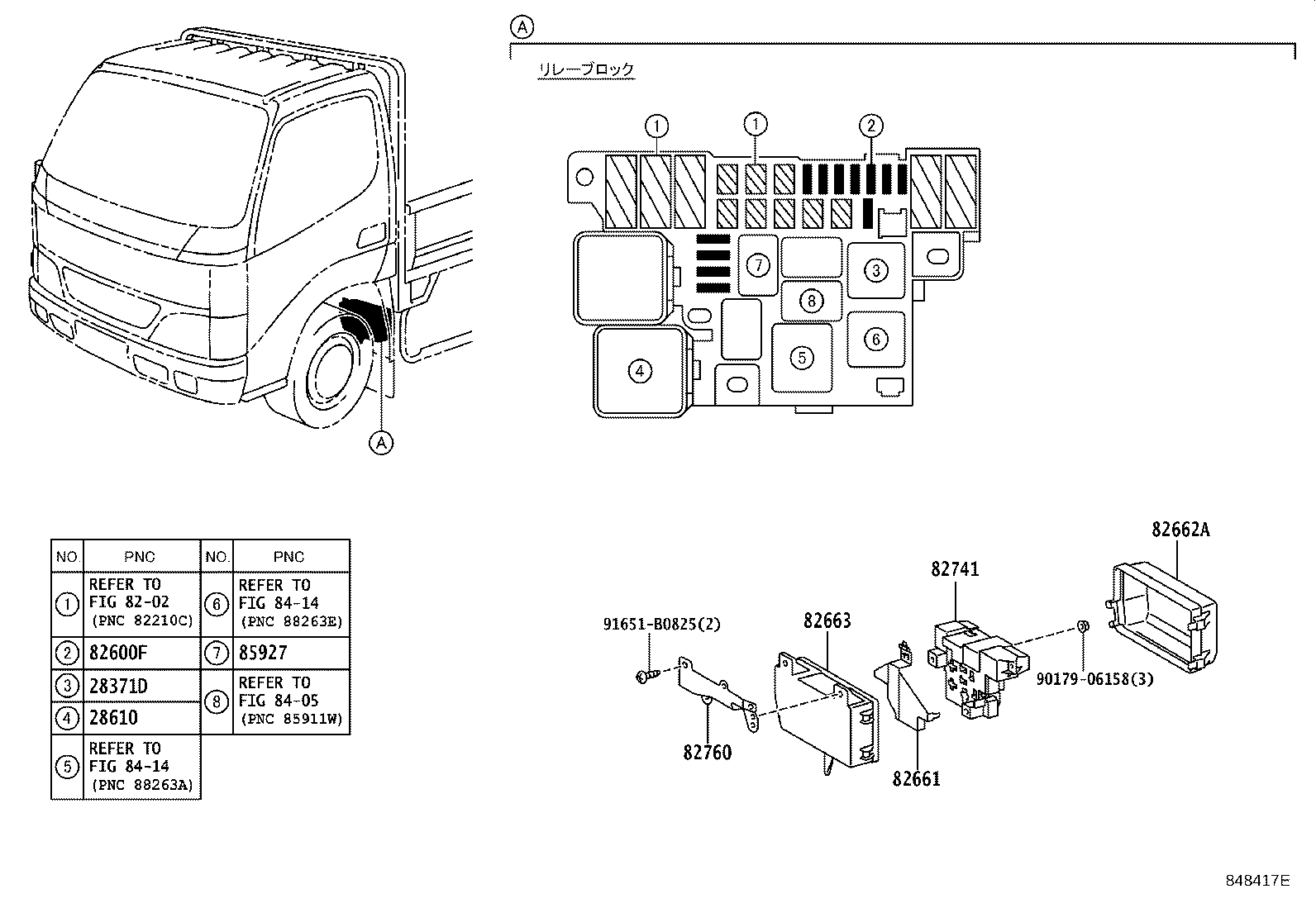

ILLUST NO. 4 OF 8(0610- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02019 |
N04C..XKU304,344 |
1 | ||
| 90987-02019 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 28371F - RELAY, IGNITION, NO.5 | ||||
| 90987-02019 |
N04C..XKU30#,338,34#,508 品番ﾗﾍﾞﾙ=90987−02019 |
1 | ||
| 90987-02019 |
N04C..XKU304,344 品番ﾗﾍﾞﾙ=90987−02019 |
1 | ||
| 90987-02018 |
N04C..XKU30#,338,34#,508 品番ﾗﾍﾞﾙ=90987−02018 |
1 | ||
| 28371F - RELAY, IGNITION, NO.5 | ||||
| 90987-02019 |
N04C..XKU30#,338,34#,508 品番ﾗﾍﾞﾙ=90987−02019 |
1 | ||
| 90987-02019 |
N04C..XKU304,344 品番ﾗﾍﾞﾙ=90987−02019 |
1 | ||
| 90987-02018 |
N04C..XKU30#,338,34#,508 品番ﾗﾍﾞﾙ=90987−02018 |
1 | ||
| 55173A - BRACKET | ||||
| 55173-37060 |
XKU30#,338,34#,508 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-37140 |
XKU30#,338,34#,508 |
1 | ||
| 81980-37140 |
XKU304,344 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
XKU304,344 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
XKU304,344 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
XKU304,344 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
XKU304,344 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09011 |
XKU304,344 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37340 |
XKU304,344 |
1 | ||
| 82683-37370 |
XKU30#,338,34#,508 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-37030 |
XKU30#,338,34#,508 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-37030 |
XKU30#,338,34#,508 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
XKU304,344 |
1 | ||
| 90986-01005 |
XKU30#,338,34#,508 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-25030 |
XKU304,344 |
1 | ||
| 84340-25030 |
XKU30#,338,34#,508 |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-37050 |
XKU304,344 |
1 | ||
| 84640-37050 |
XKU30#,338,34#,508..5F |
1 | ||
| 85900C - RELAY ASSY, CONTROL UNIT (FOR BRAKE LOCK) | ||||
| 85900-37020 |
XKU304 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04007 |
XKU30#,338,34#,508 |
1 | ||
| 90987-04007 |
XKU304,344 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02018 |
XKU30#,338,34#,508 |
1 | ||
| 90987-02018 |
XKU304,344 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02018 |
XKU304,344 |
1 | ||
| 90987-02018 |
XKU30#,338,34#,508 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02019 |
XKU304,344 |
1 | ||
| 90987-02019 |
XKU30#,338,34#,508 |
1 | ||
| 85916U - RELAY, HEADLAMP, NO.2 | ||||
| 90987-02017 |
XKU30#,338,34#,508 |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02018 |
XKU304,344 |
1 | ||
| 90987-02018 |
XKU30#,338,34#,508 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02018 |
XKU30#,338,34#,508 |
1 | ||
| 90987-02018 |
XKU304,344 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02017 |
XKU304,344 |
1 | ||
| 85985 - RELAY, KEY REMINDER | ||||
| 80590-37090 |
XKU304,344 |
1 | ||
| 80590-37140 |
XKU30#,338,34#,508 |
1 | ||
| 86210E - CONVERTER ASSY, VOLTAGE | ||||
| 86210-37020 |
XKU304,344 |
1 | ||
| 86210-37020 |
XKU30#,338,34#,508 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02017 |
XKU30#,338,34#,508 |
1 | ||
| 90987-02017 |
XKU304,344 |
1 | ||
| 86650L - BUZZER ASSY, VACUUM WARNING | ||||
| 86650-37061 |
XKU30#,338,34#,508 |
1 | ||
| 86650-37060 |
XKU30#,338,34#,508 |
1 | ||
| 86650-37060 |
XKU304,344 |
1 | ||
| 86650R - BUZZER ASSY, ES START | ||||
| 86650-37130 |
XKU304,344 |
1 | ||
| 86650-37130 |
XKU30#,338,34#,508..5F |
1 | ||
| 89280 - SENSOR ASSY, CLUTCH PEDAL STROKE | ||||
| 89280-37010 |
XKU304,344 |
1 | ||
| 89390 - RELAY, BRAKE WARNING | ||||
| 90987-04008 |
XKU30#,338,34#,508 |
1 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 90387-09027 | ||||
| 91551-80814 | ||||
| 91551-80820 | ||||
| 91621-J0814 | ||||
| 91651-B0814 | ||||
| 91651-B0820 | ||||
| 93568-55016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 3102 | ||||
| 8405 | ||||
ILLUST NO. 5 OF 8(0610- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-37020 |
XKU30#,338,34#,508 |
1 | ||
| 84172 - SWITCH, ROOM LAMP | ||||
| 84270-37010 |
XKU30#,338,34#,508 |
1 | ||
| 84270-37010 |
XKU304,344 |
1 | ||
| 84270B - SWITCH ASSY, BRAKE LOCK | ||||
| 84270-37040 |
XKU304 |
1 | ||
| 84270D - SWITCH ASSY, ES START TIMING | ||||
| 84270-37110 |
XKU304,344 |
1 | ||
| 84270-37110 |
XKU30#,338,34#,508..5F |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-37120 |
XKU304,344 |
1 | ||
| 84270-37160 |
XKU30#,338,34#,508 |
1 | ||
| 84270L - SWITCH ASSY, IDLE STOP | ||||
| 84270-37130 |
XKU304,344 |
1 | ||
| 84270-37171 |
XKU30#,338,34#,508 |
1 | ||
| 84270N - BULB, DPR SWICH ASSY | ||||
| 90010-01104 |
XKU304,344 |
1 | ||
| 90010-01104 |
XKU30#,338,34#,508 |
1 | ||
| 84270T - BULB, IDLE STOP SWITCH ASSY | ||||
| 84999-10570 |
XKU30#,338,34#,508 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37090 |
XKU304,344 |
1 | ||
| 84332-37090 |
XKU30#,338,34#,508 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10570 |
XKU30#,338,34#,508 28V 0.67W |
1 | ||
| 84999-10570 |
XKU304,344 28V 0.67W |
1 | ||
| 84455 - SWITCH, WARM UP | ||||
| 84455-37060 |
XKU304,344 |
1 | ||
| 84455-37060 |
XKU30#,338,34#,508 |
1 | ||
| 84580E - SWITCH ASSY, THROTTLE POSITION | ||||
| 84581-37010 |
XKU30#,338,34#,508 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-37010 |
XKU30#,338,34#,508 |
1 | ||
| 84660-37010 |
XKU304,344 |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-37010 |
XKU304,344 28V 0.87W |
1 | ||
| 88607-37010 |
XKU30#,338,34#,508 28V 0.87W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-37050 |
XKU304,344 |
1 | ||
| 84732-37050 |
XKU30#,338,34#,508 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-16020 |
XKU304,344 24V 1.8W |
1 | ||
| 90981-16020 |
XKU30#,338,34#,508 24V 1.8W |
1 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 90010-01153 |
XKU304,344 24V 1.8W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-01153 |
XKU30#,338,34#,508 24V 1.8W,ｷｬｯﾌﾟ付き |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-37020 |
XKU304,344 |
1 | ||
| 84873-37020 |
XKU30#,338,34#,508 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-36020 |
XKU30#,338,34#,508 |
1 | ||
| 85500-36020 |
XKU304,344 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
XKU304,344 |
1 | ||
| 85513-12020 |
XKU30#,338,34#,508 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
XKU30#,338,34#,508 |
1 | ||
| 85520-95400 |
XKU304,344 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
XKU30#,338,34#,508 |
1 | ||
| 85533-26010 |
XKU304,344 |
1 | ||
| Linked diagrams | ||||
| 5551 | ||||
| 7851 | ||||
| 8302 | ||||
| 8413 | ||||
| 8420 | ||||
ILLUST NO. 8 OF 8(0610- )
ﾘﾔﾎﾞﾃﾞ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80374 |
XKU30#,338,34#,508 |
1 | ||
| 83320-80374 |
XKU304,344 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
XKU304,344 |
1 | ||
| 86650B - BUZZER ASSY, REVERSE WARNING | ||||
| 86650-37050 |
XKU304,344 |
1 | ||
| 86650-37050 |
XKU30#,338,34#,508 |
1 | ||
| 86650E - BUZZER ASSY | ||||
| 86650-37070 |
XKU304 |
1 | ||
| Common parts | ||||
| 82711-3H630 | ||||
| 91611-B0816 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
