XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv
Production
Oct 2006
-
Aug 2009
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

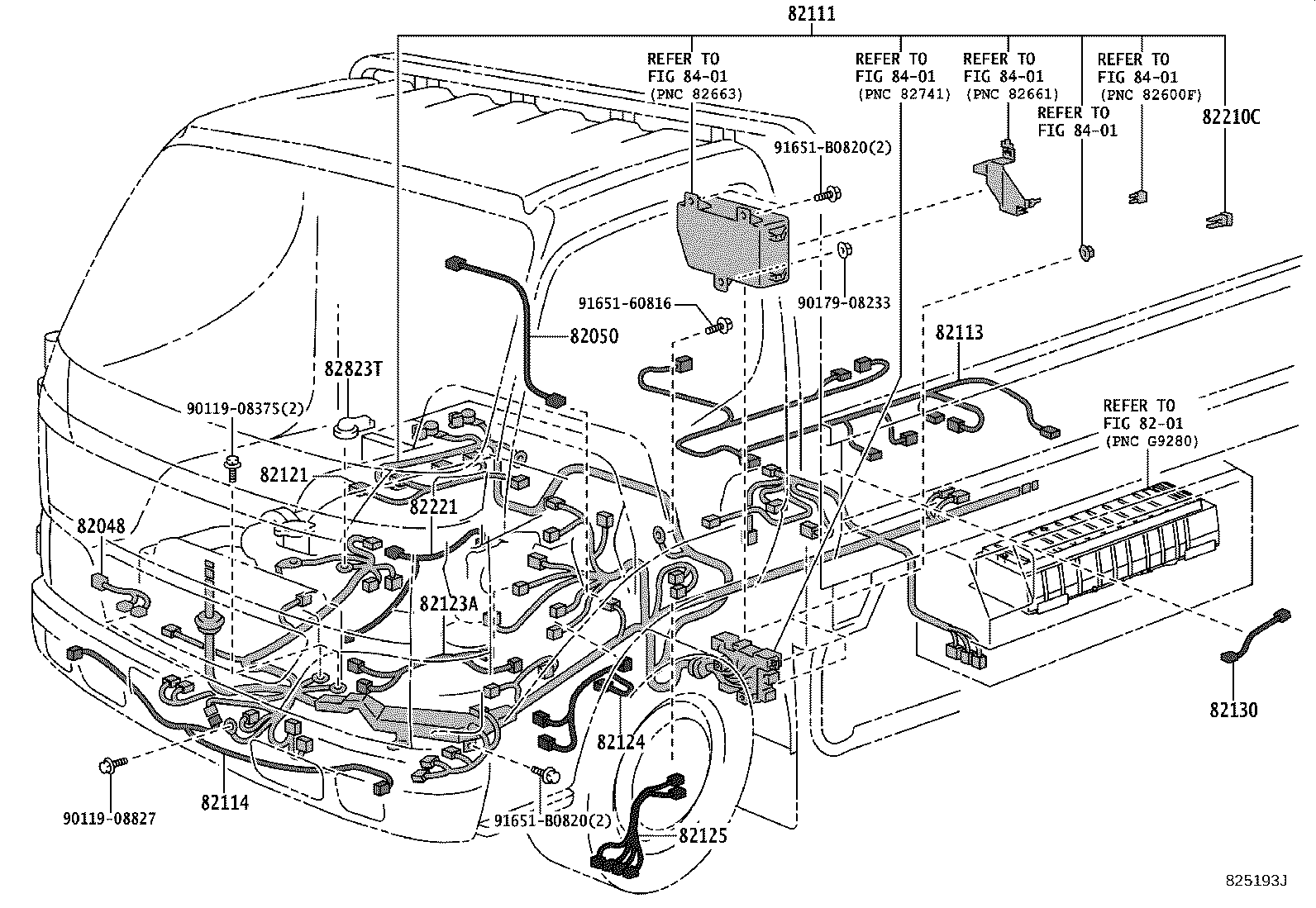

ILLUST NO. 1 OF 6(0610- )
Click highlighted areas on diagram
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82048 - WIRING SUB-ASSY, FRONT DRIVE INDICATOR LAMP SWITCH | ||||
| 82048-37040 |
XKU304,344 |
1 | ||
| 82048-37040 |
XKU30#,338,34#,508 |
1 | ||
| 82050 - WIRE ASSY, ENGINE | ||||
| 82050-37010 |
XKU304,344 |
1 | ||
| 82050-37010 |
XKU30#,338,34#,508 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-37T00 |
XKU304,344 |
1 | ||
| 82111-3VR20 |
XKU304 |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-37300 |
XKU304..5F |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-37010 |
XKU304,344 |
1 | ||
| 82114-37070 |
XKU30#,338,34#,508 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-37B30 |
XKU304,344 |
1 | ||
| 82123A - WIRE, ENGINE, NO.3 | ||||
| 82121-37D04 |
XKU30#,338,34#,508 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-37270 |
XKU304,344 NO.2 |
1 | ||
| 82121-37B71 |
XKU304,344 NO.1 |
1 | ||
| 82121-37D13 |
XKU30#,338,34#,508 |
1 | ||
| 82121-37D12 |
XKU30#,338,34#,508 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08281 |
XKU304,344 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08203 |
XKU304,344 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08282 |
XKU304,344 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08280 |
XKU304,344 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08246 |
XKU304,344 100A,ｵｽ端子,青 |
1 | ||
| 90982-08202 |
XKU304,344 60A,ｵｽ端子,黄 |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-37070 |
XKU30#,338,34#,508 |
1 | ||
| 82221-37030 |
XKU304,344 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
XKU304,344 |
1 | ||
| Common parts | ||||
| 90119-08375 | ||||
| 90119-08827 | ||||
| 90179-08233 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
