XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv

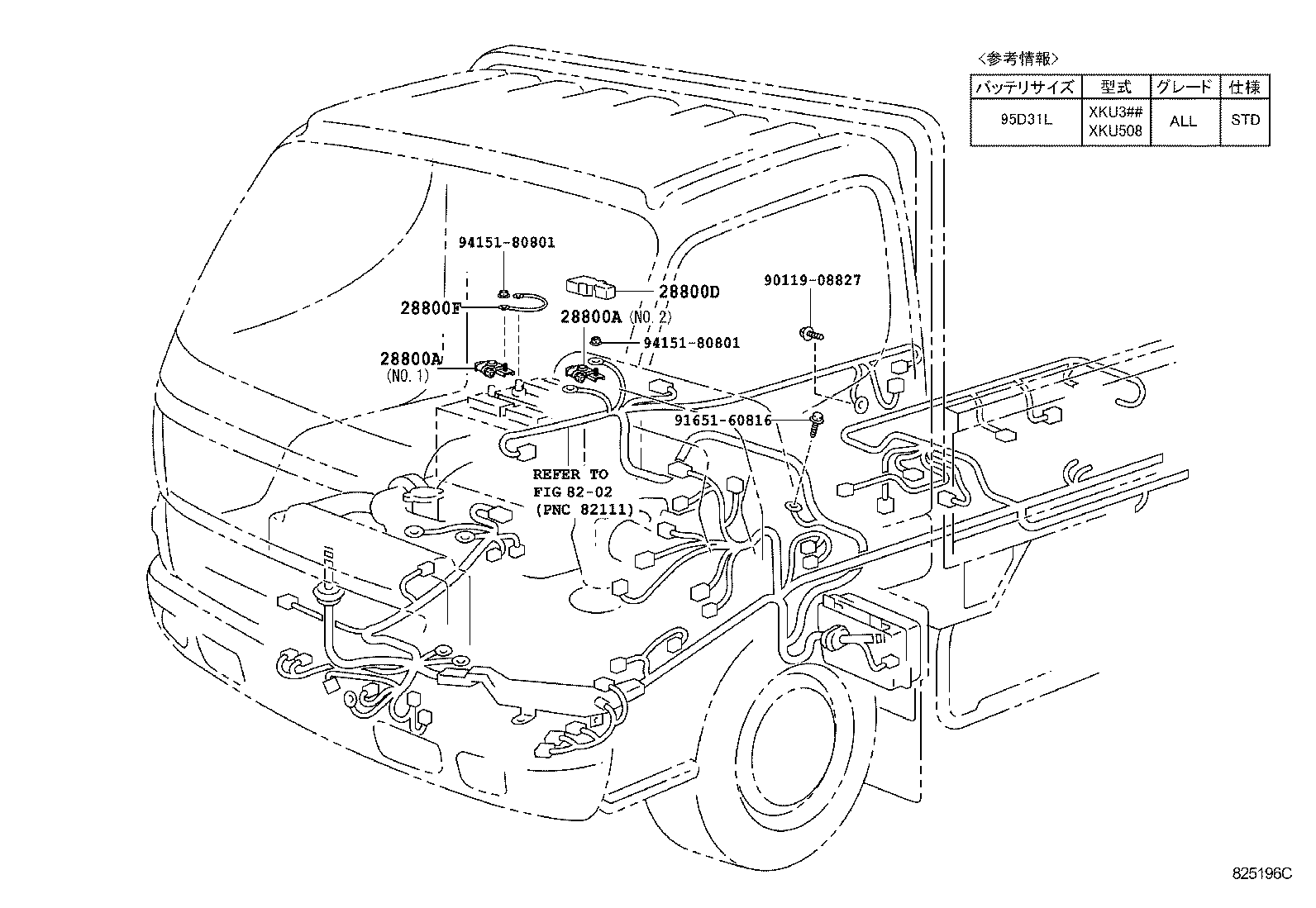

ILLUST NO. 1 OF 2(0610- )
12V ﾊﾞｯﾃﾘ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05056 |
N04C..XKU30#,338,34#,508 NO.2 |
1 | ||
| 90982-05042 |
N04C..XKU304,344 |
1 | ||
| 90982-05040 |
N04C..XKU30#,338,34#,508 NO.1 |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05056 |
N04C..XKU30#,338,34#,508 NO.2 |
1 | ||
| 90982-05042 |
N04C..XKU304,344 |
1 | ||
| 90982-05040 |
N04C..XKU30#,338,34#,508 NO.1 |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-37071 |
N04C..XKU30#,338,34#,508 |
1 | ||
| 82821-37071 |
N04C..XKU304,344 |
1 | ||
| 28800F - CABLE, BATTERY TO BATTERY | ||||
| 82123-37040 |
N04C..XKU304,344 |
1 | ||
| 82123-37170 |
N04C..XKU30#,338,34#,508 |
1 | ||
| Common parts | ||||
| 90119-08827 | ||||
| 91651-60816 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8202 | ||||

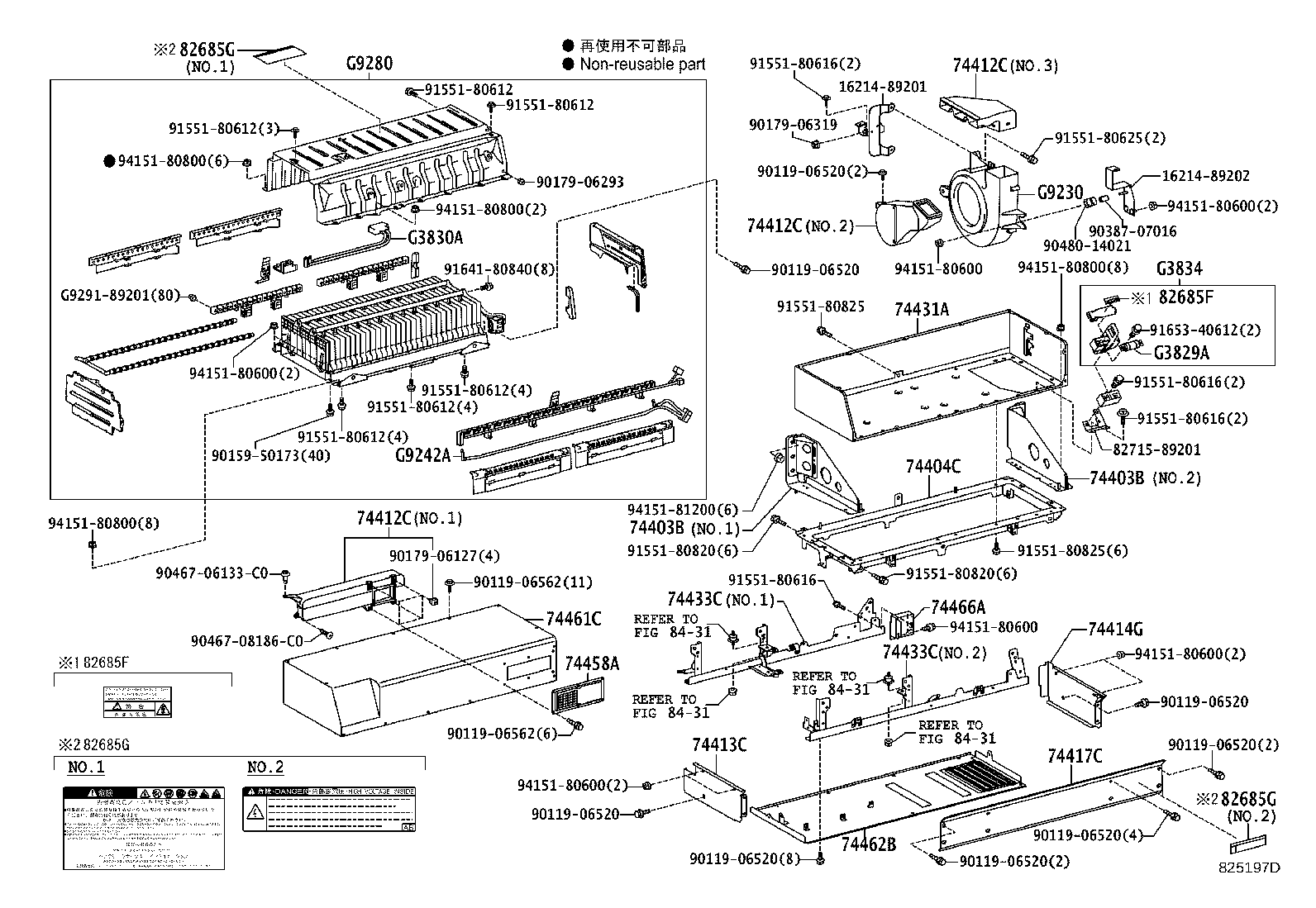

ILLUST NO. 2 OF 2(0610- )
HV ﾊﾞｯﾃﾘ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74403B - CARRIER SUB-ASSY, BATTERY | ||||
| 74403-89202 |
XKU30#,338,34#,508 NO.2 |
1 | ||
| 74403-89201 |
XKU30#,338,34#,508 NO.1 |
1 | ||
| 74403B - CARRIER SUB-ASSY, BATTERY | ||||
| 74403-89202 |
XKU30#,338,34#,508 NO.2 |
1 | ||
| 74403-89201 |
XKU30#,338,34#,508 NO.1 |
1 | ||
| 74404C - CARRIER SUB-ASSY, BATTERY, UPR | ||||
| 74404-89202 |
XKU30#,338,34#,508 |
1 | ||
| 74412C - DUCT, BATTERY CARRIER | ||||
| 74412-37161 |
XKU304,344 NO.2 |
1 | ||
| 74412-37210 |
XKU304,344 NO.5 |
1 | ||
| 74412-37171 |
XKU304,344 NO.3 |
1 | ||
| 74412-89205 |
XKU30#,338,34#,508 NO.2 |
1 | ||
| 74412-37200 |
XKU304,344 NO.4 |
1 | ||
| 74412-89204 |
XKU30#,338,34#,508 NO.1 |
1 | ||
| 74412-89206 |
XKU30#,338,34#,508 NO.3 |
1 | ||
| 74412-37150 |
XKU304,344 NO.1 |
1 | ||
| 74412C - DUCT, BATTERY CARRIER | ||||
| 74412-37161 |
XKU304,344 NO.2 |
1 | ||
| 74412-37210 |
XKU304,344 NO.5 |
1 | ||
| 74412-37171 |
XKU304,344 NO.3 |
1 | ||
| 74412-89205 |
XKU30#,338,34#,508 NO.2 |
1 | ||
| 74412-37200 |
XKU304,344 NO.4 |
1 | ||
| 74412-89204 |
XKU30#,338,34#,508 NO.1 |
1 | ||
| 74412-89206 |
XKU30#,338,34#,508 NO.3 |
1 | ||
| 74412-37150 |
XKU304,344 NO.1 |
1 | ||
| 74412C - DUCT, BATTERY CARRIER | ||||
| 74412-37161 |
XKU304,344 NO.2 |
1 | ||
| 74412-37210 |
XKU304,344 NO.5 |
1 | ||
| 74412-37171 |
XKU304,344 NO.3 |
1 | ||
| 74412-89205 |
XKU30#,338,34#,508 NO.2 |
1 | ||
| 74412-37200 |
XKU304,344 NO.4 |
1 | ||
| 74412-89204 |
XKU30#,338,34#,508 NO.1 |
1 | ||
| 74412-89206 |
XKU30#,338,34#,508 NO.3 |
1 | ||
| 74412-37150 |
XKU304,344 NO.1 |
1 | ||
| 74413C - PANEL, BATTERY CARRIER, FRONT | ||||
| 74413-37070 |
XKU304,344 |
1 | ||
| 74413-89201 |
XKU30#,338,34#,508 |
1 | ||
| 74414G - PANEL, BATTERY CARRIER, RR | ||||
| 74414-37150 |
XKU304,344 |
1 | ||
| 74414-89201 |
XKU30#,338,34#,508 |
1 | ||
| 74417C - PANEL, BATTERY CARRIER LH | ||||
| 74417-89201 |
XKU30#,338,34#,508 |
1 | ||
| 74431A - TRAY, BATTERY | ||||
| 74431-37021 |
XKU304,344 |
1 | ||
| 74431-89201 |
XKU30#,338,34#,508 |
1 | ||
| 74433C - SUPPORT, BATTERY TRAY | ||||
| 74433-89201 |
XKU30#,338,34#,508 NO.1 |
1 | ||
| 74433-37061 |
XKU304,344 |
2 | ||
| 74434-89210 |
XKU30#,338,34#,508 NO.2 |
1 | ||
| 74434-89201 |
XKU30#,338,34#,508 NO.2 |
1 | ||
| 74433C - SUPPORT, BATTERY TRAY | ||||
| 74433-89201 |
XKU30#,338,34#,508 NO.1 |
1 | ||
| 74433-37061 |
XKU304,344 |
2 | ||
| 74434-89210 |
XKU30#,338,34#,508 NO.2 |
1 | ||
| 74434-89201 |
XKU30#,338,34#,508 NO.2 |
1 | ||
| 74458A - LID, BATTERY COVER, NO.1 | ||||
| 74458-37011 |
XKU304,344 |
1 | ||
| 74458-89202 |
XKU30#,338,34#,508 |
1 | ||
| 74461C - COVER, BATTERY | ||||
| 74461-37081 |
XKU304,344 |
1 | ||
| 74461-89202 |
XKU30#,338,34#,508 |
1 | ||
| 74462B - PANEL, BATTERY CARRIER, NO.2 | ||||
| 74462-37021 |
XKU304,344 |
1 | ||
| 74464-89201 |
XKU30#,338,34#,508 |
1 | ||
| 74466A - PANEL, BATTERY CARRIER, NO.6 | ||||
| 74466-89201 |
XKU30#,338,34#,508 |
1 | ||
| 82685F - MAIN BATTERY CAUTION PLATE, NO.1 | ||||
| 82685-47010 |
XKU304,344 |
2 | ||
| 82685G - MAIN BATTERY CAUTION PLATE, NO.2 | ||||
| 86995-37040 |
XKU30#,338,34#,508 NO.1 |
1 | ||
| G9289-89203 |
XKU30#,338,34#,508 NO.2 |
1 | ||
| G9289-89205 |
XKU30#,338,34#,508 NO.1 |
1 | ||
| 82685G - MAIN BATTERY CAUTION PLATE, NO.2 | ||||
| 86995-37040 |
XKU30#,338,34#,508 NO.1 |
1 | ||
| G9289-89203 |
XKU30#,338,34#,508 NO.2 |
1 | ||
| G9289-89205 |
XKU30#,338,34#,508 NO.1 |
1 | ||
| G3829A - FUSE, ELECTRIC VEHICLE | ||||
| 90982-11049 |
XKU30#,338,34#,508 125A､ﾏｰｸ=90982−11049 |
1 | ||
| 90982-11045 |
XKU304,344 125A､ﾏｰｸ=90982ｰ11045 |
2 | ||
| G3830A - PLUG ASSY, ELECTRIC VEHICLE BATTERY | ||||
| G3830-89201 |
XKU30#,338,34#,508 |
1 | ||
| G3830-47030 |
XKU304,344 |
1 | ||
| G3834 - GRIP, SERVICE PLUG | ||||
| G3834-47020 |
XKU304,344 |
1 | ||
| G9230 - BLOWER ASSY, BATTERY COOLING | ||||
| G9230-89201 |
XKU30#,338,34#,508 |
1 | ||
| G9242A - CABLE, MAIN BATTERY, NO.2 | ||||
| G9242-89205 |
XKU30#,338,34#,508 |
1 | ||
| G9280 - BATTERY ASSY, EV, NO.1 | ||||
| G9280-89201 |
XKU30#,338,34#,508 |
1 | ||
| Common parts | ||||
| 16214-89201 | ||||
| 16214-89202 | ||||
| 82715-89201 | ||||
| 90119-06520 | ||||
| 90119-06562 | ||||
| 90159-50173 | ||||
| 90179-06127 | ||||
| 90179-06293 | ||||
| 90179-06319 | ||||
| 90387-07016 | ||||
| 90467-06133C0 | ||||
| 90467-08186C0 | ||||
| 90480-14021 | ||||
| 91551-80612 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91641-80840 | ||||
| 91653-40612 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94151-81200 | ||||
| G9291-89201 | ||||
| Linked diagrams | ||||
| 8431 | ||||
