XKU304A-TYMMB3 (2006)

Toyota Dyna/Toyoace Hv

Production Oct 2006 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )

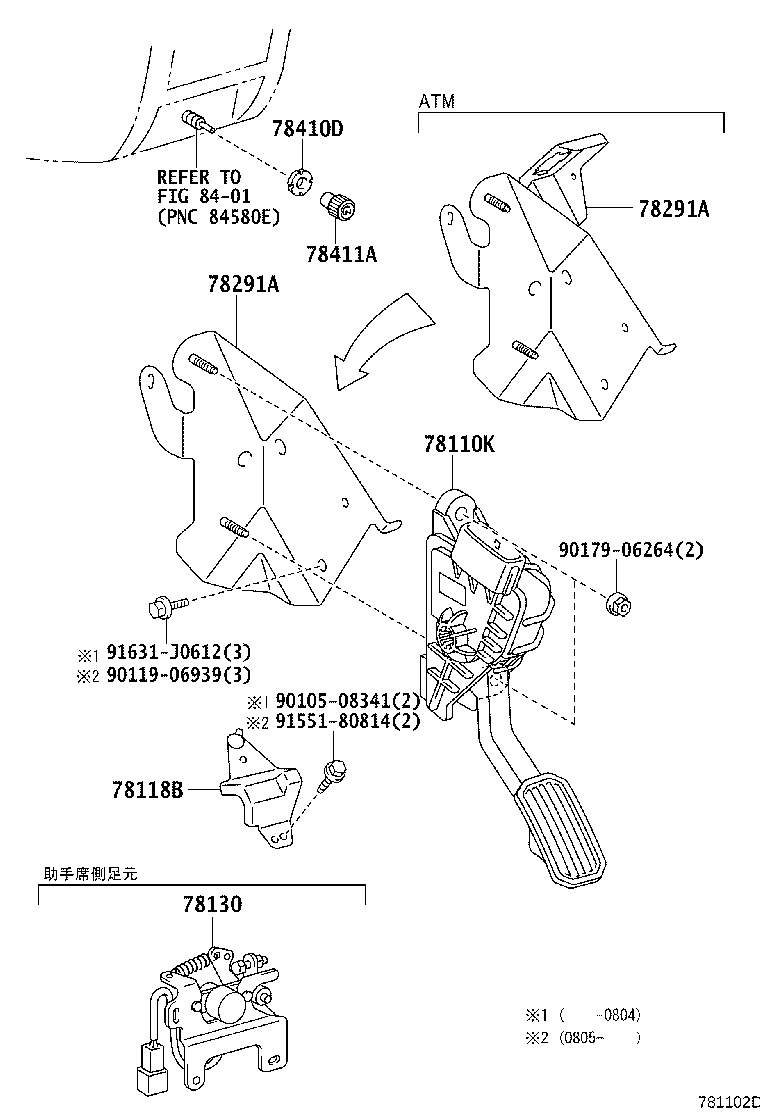

Click highlighted areas on diagram

diagram 78110K 78118B 78130 78291A 78291A 78410D 78411A 8401 9010508341 9011906939 9017906264 9155180814 91631J0612
Part # Description Qty Price
78118B - STOPPER, ACCELERATOR PEDAL
78118-37020

XKU30#,338,34#,508

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78130-37131

XKU30#,338,34#,508

 1
78130-37130

XKU304,344

 1
78291A - BRACKET, ACCELERATOR LINK
78291-37030

XKU304,344

 1
78291-37070

XKU30#,338,34#,508..5F

 1
78291A - BRACKET, ACCELERATOR LINK
78291-37030

XKU304,344

 1
78291-37070

XKU30#,338,34#,508..5F

 1
78410D - NUT, THROTTLE
78413-95J00

XKU30#,338,34#,508

 1
Common parts
90105-08341
90119-06939
90179-06264
91551-80814
91631-J0612
Linked diagrams
8401
