XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv

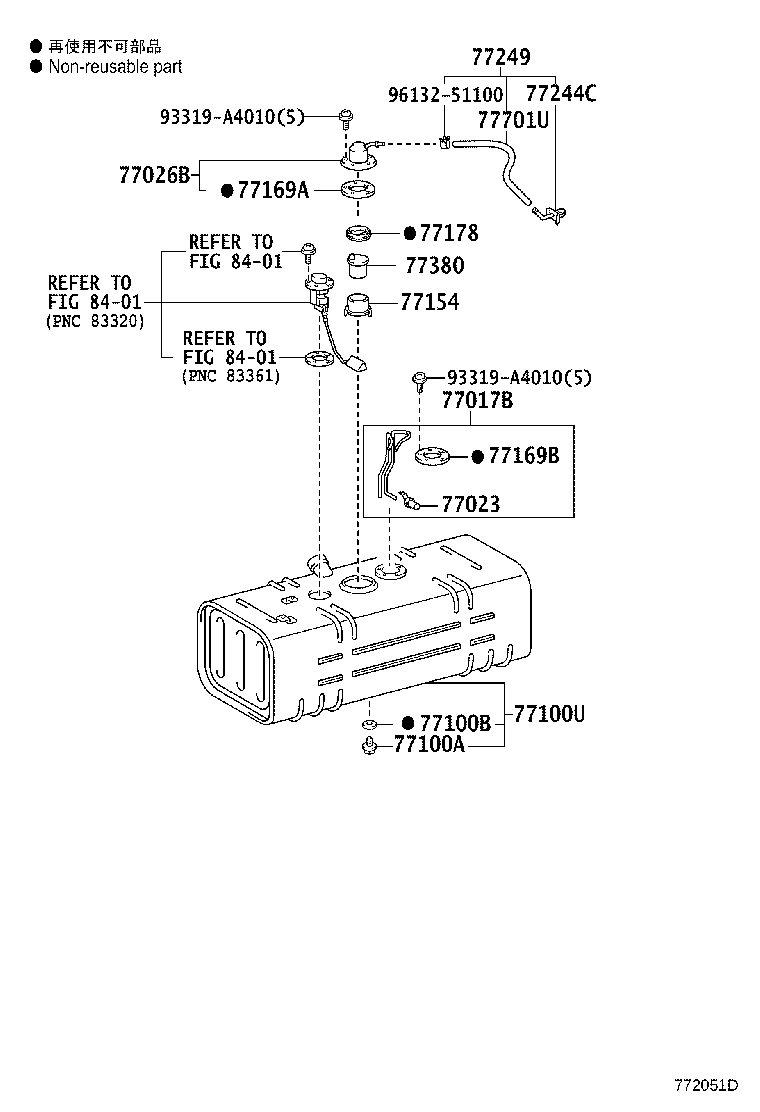

ILLUST NO. 1 OF 3(0610- )XKU30#,338,508
ﾌｭｰｴﾙ ﾀﾝｸ(690X385X310)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37010 |
XKU30#,338,34#,508 |
1 | ||
| 77017-37010 |
XKU304,344 |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
XKU30#,338,34#,508 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
XKU30#,338,34#,508 |
1 | ||
| 90105-12116 |
XKU304,344 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XKU304,344 |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37231 |
XKU304,344 690X310X385 |
1 | ||
| 77001-37510 |
XKU30#,338,508 690X310X385 |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-25010 |
XKU30#,338,34#,508 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
XKU30#,338,34#,508 |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37010 |
XKU30#,338,34#,508 |
1 | ||
| 77244-37010 |
XKU304,344 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37190 |
XKU30#,338,34#,508 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
XKU30#,338,34#,508 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06040 |
XKU304,344 *H,L=400 |
1 | ||
| 95333-06040 |
XKU30#,338,34#,508 *H,L=340 |
1 | ||
| Common parts | ||||
| 93319-A4010 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||

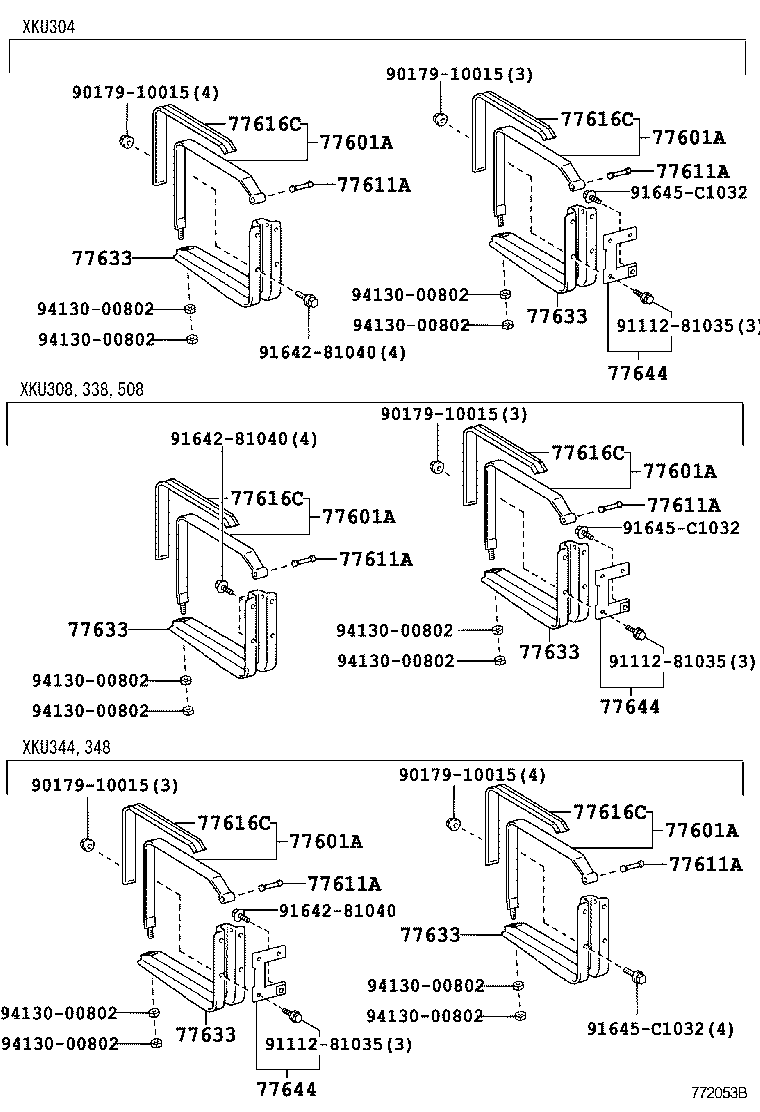

ILLUST NO. 2 OF 3(0610- )
ﾌｭｰｴﾙ ﾀﾝｸ ｽﾃｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
XKU304,344 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
XKU304,344 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
XKU304,344 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
XKU304,344 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
XKU304,344 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
XKU304,344 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XKU30#,338,34#,508 |
2 | ||
| 77629-36010 |
XKU304,344 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XKU30#,338,34#,508 |
2 | ||
| 77629-36010 |
XKU304,344 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XKU30#,338,34#,508 |
2 | ||
| 77629-36010 |
XKU304,344 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XKU30#,338,34#,508 |
2 | ||
| 77629-36010 |
XKU304,344 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XKU30#,338,34#,508 |
2 | ||
| 77629-36010 |
XKU304,344 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XKU30#,338,34#,508 |
2 | ||
| 77629-36010 |
XKU304,344 |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
XKU304,344 |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
XKU304,344 |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
XKU304,344 |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
XKU304,344 |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
XKU304,344 |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
XKU304,344 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37080 |
XKU30#,338,34#,508 |
2 | ||
| 77501-37080 |
XKU304,344 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37080 |
XKU30#,338,34#,508 |
2 | ||
| 77501-37080 |
XKU304,344 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37080 |
XKU30#,338,34#,508 |
2 | ||
| 77501-37080 |
XKU304,344 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37080 |
XKU30#,338,34#,508 |
2 | ||
| 77501-37080 |
XKU304,344 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37080 |
XKU30#,338,34#,508 |
2 | ||
| 77501-37080 |
XKU304,344 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37080 |
XKU30#,338,34#,508 |
2 | ||
| 77501-37080 |
XKU304,344 |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-37101 |
XKU30#,338,34#,508 |
1 | ||
| 77644-37100 |
XKU304,344 |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-37101 |
XKU30#,338,34#,508 |
1 | ||
| 77644-37100 |
XKU304,344 |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-37101 |
XKU30#,338,34#,508 |
1 | ||
| 77644-37100 |
XKU304,344 |
1 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 91112-81035 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 94130-00802 | ||||

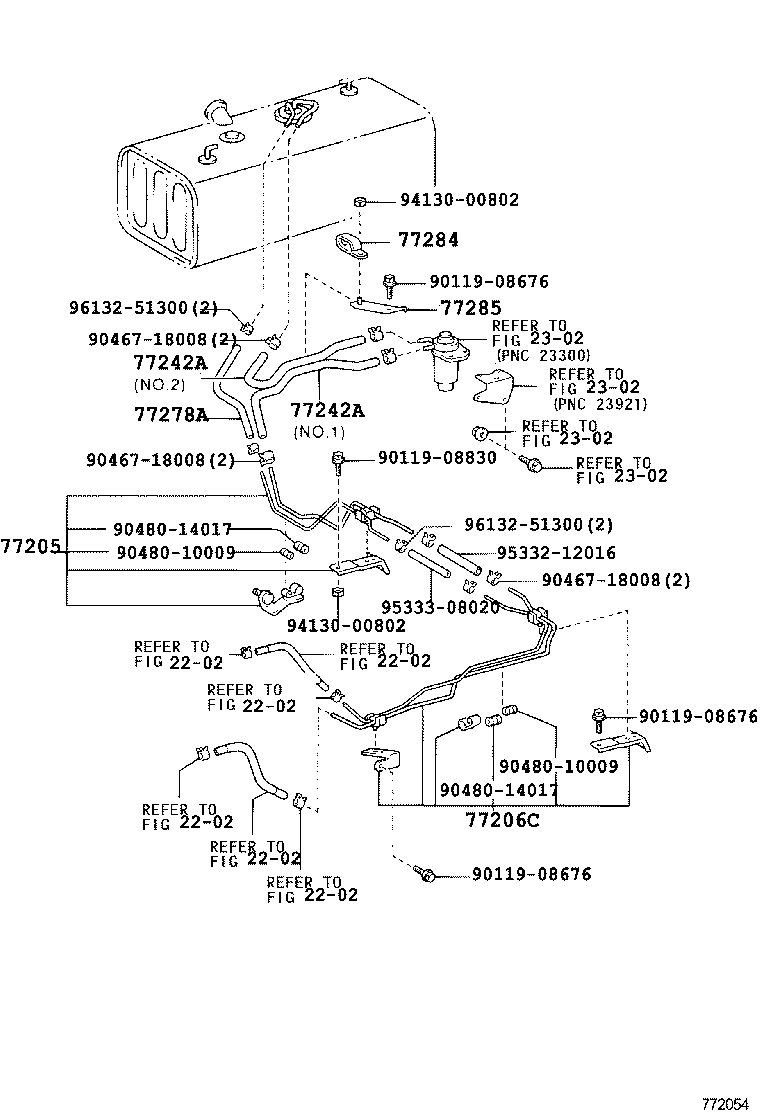

ILLUST NO. 3 OF 3(0610- )XKU30#,338,508
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37B70 |
XKU30#,338,34#,508 |
1 | ||
| 77205-37700 |
XKU304,344 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37890 |
XKU304,344 |
1 | ||
| 77206-37D40 |
XKU304,344 |
1 | ||
| 77206-37D41 |
XKU304,344..5F |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 77279-37010 |
XKU304,344 NO.2 |
1 | ||
| 77259-37090 |
XKU304,344 NO.1 |
1 | ||
| 77259-37250 |
XKU30#,338,508 NO.1 |
1 | ||
| 77279-37010 |
XKU30#,338,508 NO.2 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 77279-37010 |
XKU304,344 NO.2 |
1 | ||
| 77259-37090 |
XKU304,344 NO.1 |
1 | ||
| 77259-37250 |
XKU30#,338,508 NO.1 |
1 | ||
| 77279-37010 |
XKU30#,338,508 NO.2 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08030 |
XKU304,344 *H,L=280,内径=7.6 |
1 | ||
| 95333-08030 |
XKU30#,338,508 *H,L=240,内径=7.6 |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 90034-61050 |
XKU30#,338,508 |
1 | ||
| 77285 - BRACKET, FUEL TUBE | ||||
| 77281-37190 |
XKU304,344 |
1 | ||
| 77281-37190 |
XKU30#,338,508 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90467-18008 | ||||
| 90480-10009 | ||||
| 90480-14017 | ||||
| 94130-00802 | ||||
| 95332-12016 | ||||
| 95333-08020 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
