XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv
Production
Oct 2006
-
Aug 2009
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

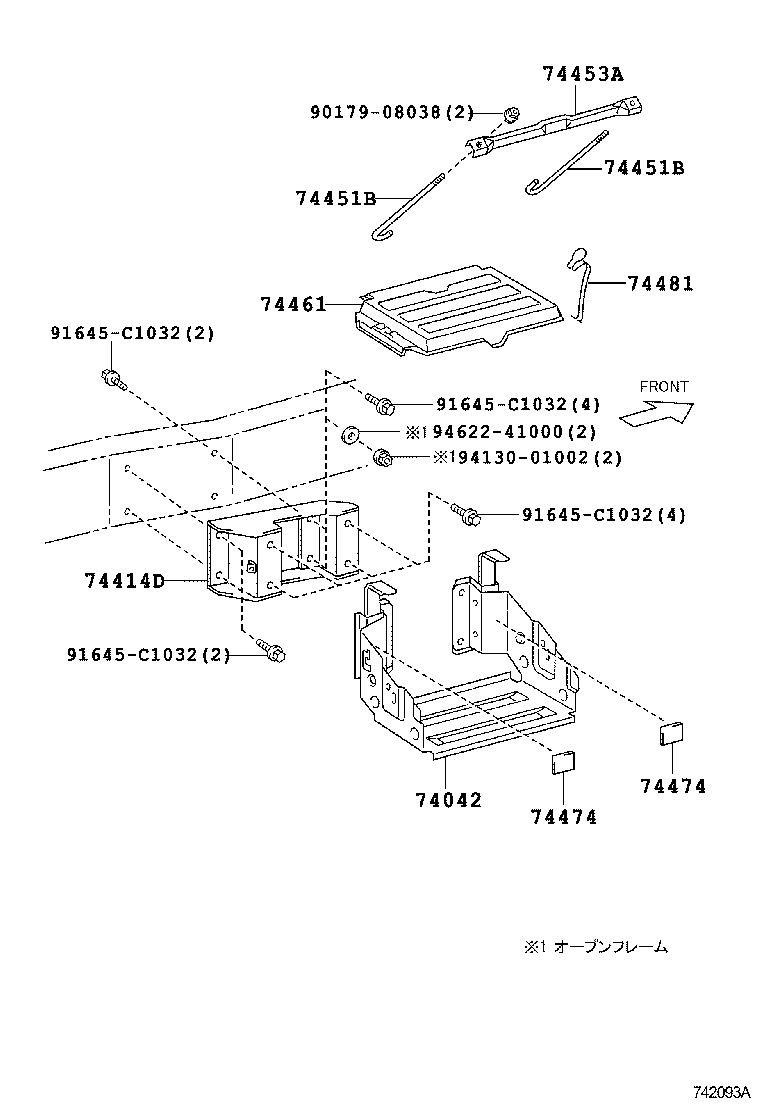

ILLUST NO. 1 OF 2(0610- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74042 - BRACKET SUB-ASSY, BATTERY | ||||
| 74042-37050 |
XKU304,344 |
1 | ||
| 74042-37050 |
XKU30#,338,34#,508 |
1 | ||
| 74414D - SUPPORT, BATTERY CARRIER | ||||
| 74414-37190 |
XKU30#,338,34#,508 |
1 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-37021 |
XKU304,344 |
2 | ||
| 74451-37021 |
XKU30#,338,34#,508 |
2 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-37021 |
XKU304,344 |
2 | ||
| 74451-37021 |
XKU30#,338,34#,508 |
2 | ||
| 74453A - BAR, BATTERY SET PLATE | ||||
| 74453-36070 |
XKU304,344 |
1 | ||
| 74461 - COVER, BATTERY | ||||
| 74461-37030 |
XKU30#,338,34#,508 |
1 | ||
| 74461-37030 |
XKU304,344 |
1 | ||
| 74474 - PAD, BATTERY | ||||
| 74475-36040 |
XKU30#,338,34#,508 |
2 | ||
| 74475-36040 |
XKU304,344 |
2 | ||
| 74474 - PAD, BATTERY | ||||
| 74475-36040 |
XKU30#,338,34#,508 |
2 | ||
| 74475-36040 |
XKU304,344 |
2 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74481-36030 |
XKU30#,338,34#,508 |
2 | ||
| 74481-36030 |
XKU304,344 |
2 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 91645-C1032 | ||||
| 94130-01002 | ||||
| 94622-41000 | ||||

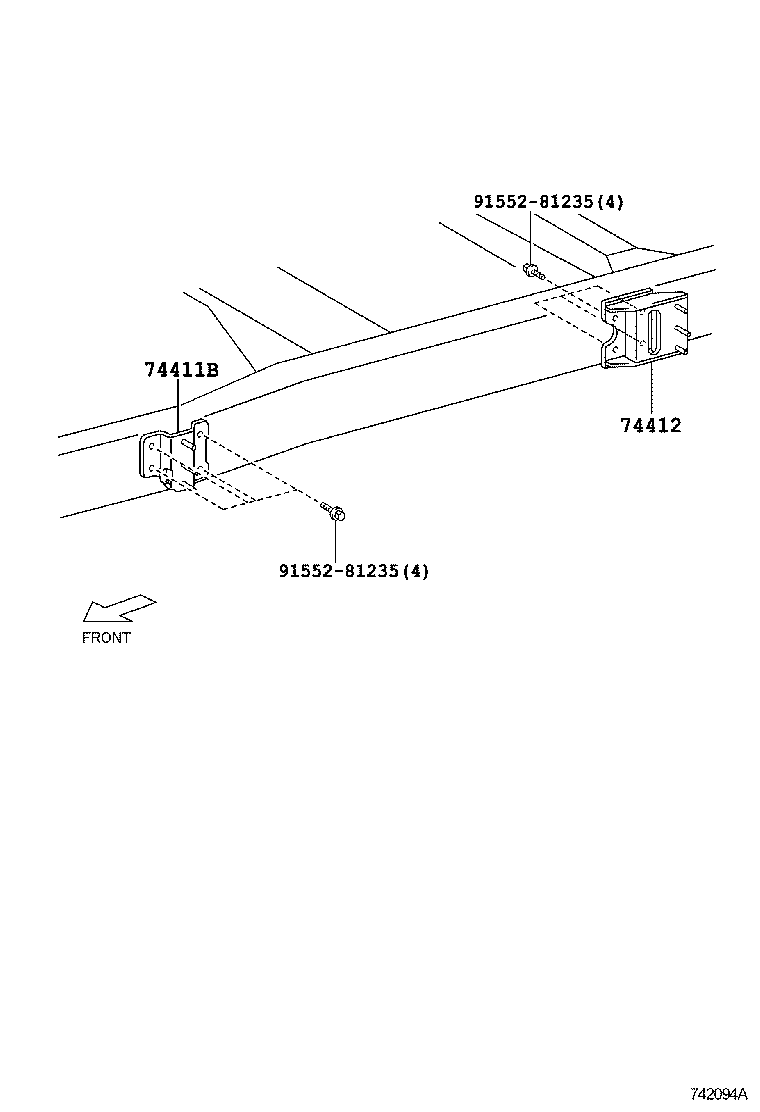

ILLUST NO. 2 OF 2(0610- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74411B - BRACKET, BATTERY, FRONT | ||||
| 74401-37110 |
XKU304,344 |
1 | ||
| 74401-89201 |
XKU30#,338,34#,508..5F |
1 | ||
| 74412 - BRACKET, BATTERY, REAR | ||||
| 74402-89201 |
XKU30#,338,34#,508 |
1 | ||
| Common parts | ||||
| 91552-81235 | ||||
