XKU304A-TYMMB3 (2006)

Toyota Dyna/Toyoace Hv

Production Oct 2006 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ

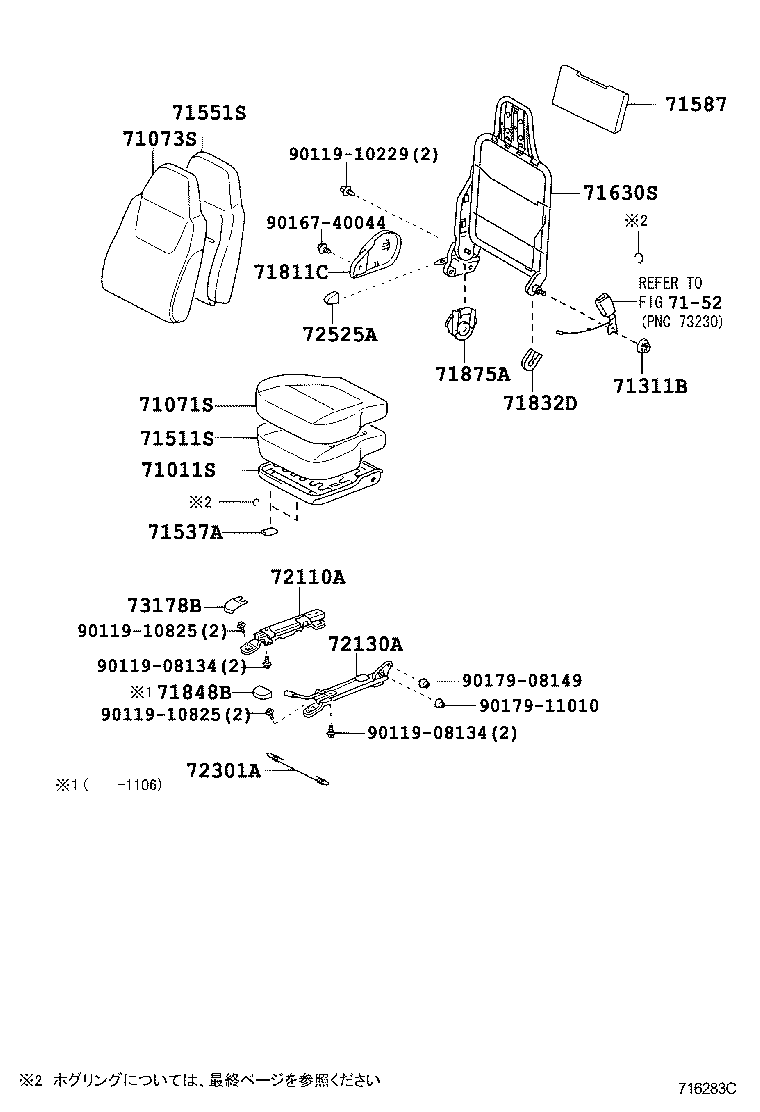

diagram 71011S 71071S 71073S 71311B 71511S 7152 71537A 71551S 71587 71630S 71811C 71832D 71848B 71875A 72110A 72130A 72301A 72525A 73178B 9011908134 9011908134 9011910229 9011910825 9011910825 9016740044 9017908149 9017911010
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71610-37050

XKU30#,338,34#,508

 1
71610-37010

XKU304,344

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-37600B1

XKU304,344

ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71071-37590B0

XKU304,344

ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-37740B0

XKU304,344

ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71073-37750B0

XKU304,344

ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71311B - BUSH (FOR FRONT SEAT HINGE PIN)
90386-12053

XKU30#,338,34#,508

 1
90386-12053

XKU304,344

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-37080

XKU304,344

 1
71511-37130

XKU30#,338,34#,508

 1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-26010

XKU30#,338,34#,508

 2
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-37110

XKU304,344

 1
71551-37220

XKU30#,338,34#,508

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-37020

XKU304,344

 1
71587-37020

XKU30#,338,34#,508

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-37110

XKU30#,338,34#,508

 1
71630-37060

XKU304,344

 1
71811C - COVER, RECLINING ADJUSTER, RH
71811-37010B0

XKU304,344

MD.CHARCOAL,TRIM1#

 1
71832D - COVER, FRONT SEAT HINGE, LH
71832-37010

XKU30#,338,34#,508

 1
71848B - CAP, SEAT ADJUSTER COVER, RH
72137-35050B1

XKU304,344

DK.CHARCOAL,TRIM1#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-37010

XKU30#,338,34#,508

 1
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-37020

XKU304,344

 1
72110-37020

XKU30#,338,34#,508

 1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-37020

XKU304,344

 1
72130-37020

XKU30#,338,34#,508

 1
72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH
72301-37030

XKU304,344

 1
72301-37030

XKU30#,338,34#,508

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-37010B0

XKU304,344

MD.CHARCOAL,TRIM1#

 1
73178B - CAP, SEAT BELT ANCHOR COVER
72137-37010B0

XKU304,344

DK.CHARCOAL,TRIM1#

 1
Common parts
90119-08134
90119-10229
90119-10825
90167-40044
90179-08149
90179-11010
Linked diagrams
7152
