XKU304A-TYMMB3 (2006)

Toyota Dyna/Toyoace Hv

Production Oct 2006 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

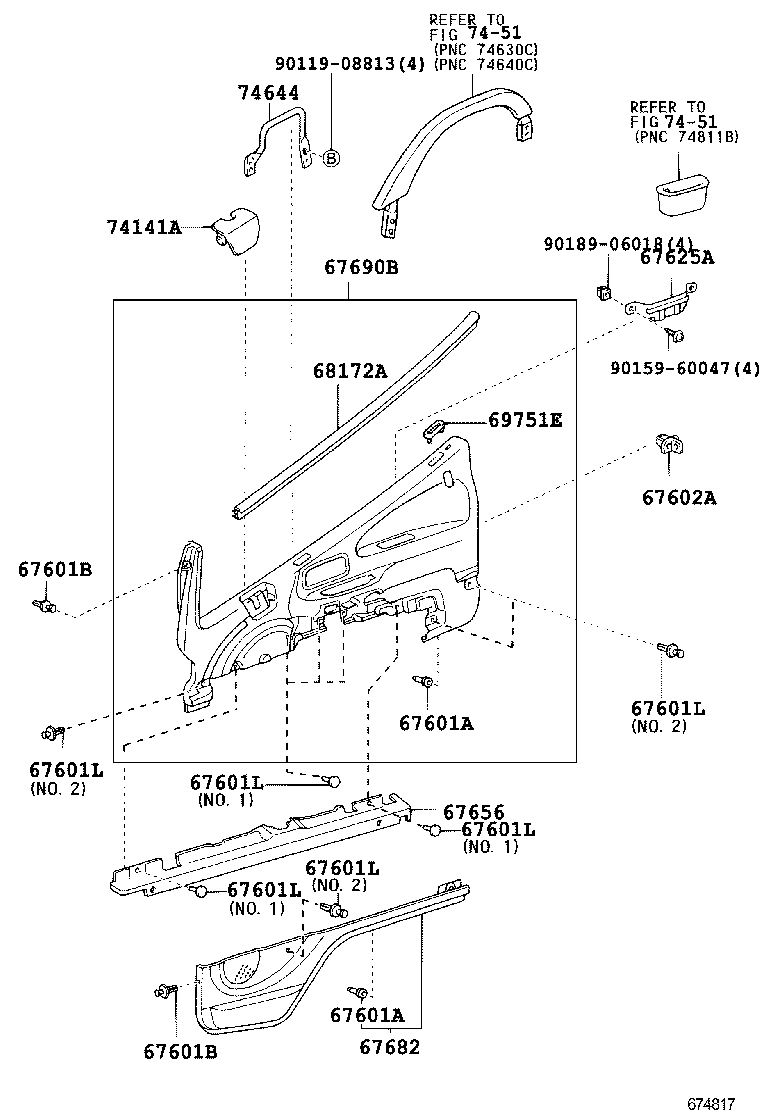

ILLUST NO. 2 OF 3(0610- )XKU304

Click highlighted areas on diagram

ﾄﾞｱ ﾄﾘﾑ,ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ)

diagram 67601A 67601A 67601B 67601B 67601L 67601L 67601L 67601L 67601L 67601L 67602A 67625A 67656 67682 67690B 68172A 69751E 74141A 7451 7451 74644 9011908813 9015960047 9018906018
Part # Description Qty Price
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
90467-10188

XKU304

 5
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
90467-10188

XKU304

 5
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-07071B6

XKU304,344

MD.CHARCOAL,TRIM1#

 2
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-07071B6

XKU304,344

MD.CHARCOAL,TRIM1#

 2
67602A - RETAINER, DOOR TRIM, LH
90467-09122

XKU304

 1
67625A - BRACKET, FRONT DOOR TRIM, NO.1
67625-26010

XKU30#,338,34#,508

 2
67625-26010

XKU304,344

 2
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-37010

XKU304,344

 1
74141A - GARNISH, FRONT ASH RECEPTACLE, NO.1
74141-25010B0

XKU304;XKU344..30T

ﾅｼ(ｼﾞｮｼｭｾｷ ｱﾂｼﾕ ﾘｾﾌﾟﾀｸﾙ),MD.CHARCOAL,TRIM1#

 1
74644 - REINFORCEMENT, DOOR ASSIST GRIP, LH
74644-37020

XKU304

 1
Common parts
90119-08813
90159-60047
90189-06018
Linked diagrams
7451

ILLUST NO. 3 OF 3(0610- )

Click highlighted areas on diagram

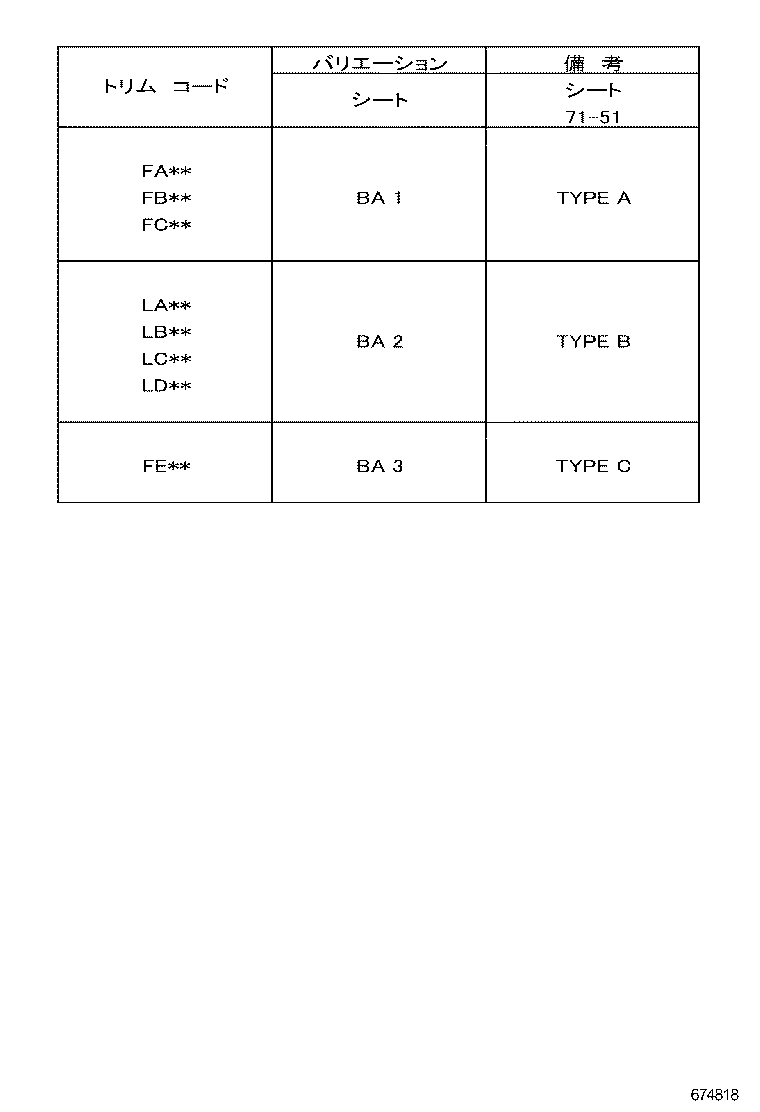

ﾄﾘﾑｺｰﾄﾞ

diagram
Part # Description Qty Price
