XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv

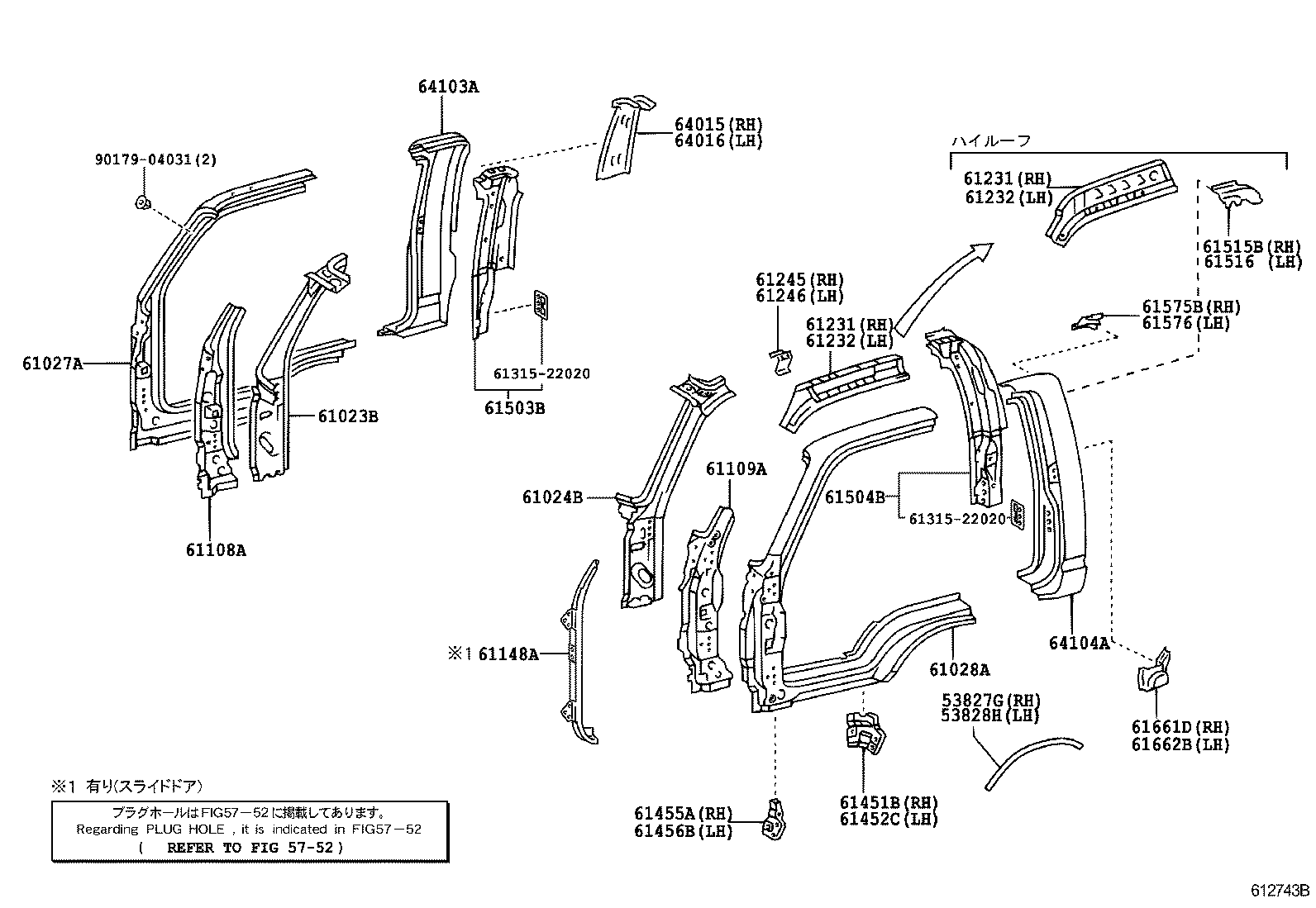

ILLUST NO. 1 OF 2(0610- )
ｳｲﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ=ｳｴｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-37010 |
XKU304,344 |
1 | ||
| 53827-37010 |
XKU30#,338,34#,508 |
1 | ||
| 53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53827-37010 |
XKU304,344 |
1 | ||
| 53827-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-37050 |
XKU304;XKU344..30T ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61023-37050 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61023-37040 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 61023-37040 |
XKU304,344 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-37090 |
XKU304,344 |
1 | ||
| 61024-37100 |
XKU304;XKU344..30T ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61024-37100 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61024-37090 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 61024-37130 |
XKU304 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61131-37061 |
XKU304,344 |
1 | ||
| 61131-37071 |
XKU304,344 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61131-37062 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 61131-37072 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61027-89119 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ |
1 | ||
| 61027-89118 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61132-37061 |
XKU304,344 |
1 | ||
| 61132-37041 |
XKU304,344 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ ｱﾝﾃﾅ) |
1 | ||
| 61132-37071 |
XKU304,344 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61132-37051 |
XKU304,344 ｱﾘ(ﾊｲ ﾙ-ﾌ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ ｱﾝﾃﾅ) |
1 | ||
| 61132-37072 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61132-37042 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ ｱﾝﾃﾅ) |
1 | ||
| 61132-37052 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ & ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ ｱﾝﾃﾅ) |
1 | ||
| 61132-37062 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 61132-37111 |
XKU304 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 61028-89118 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61028-89119 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-37031 |
XKU304,344 |
1 | ||
| 61108-37060 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ |
1 | ||
| 61108-37031 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-37011 |
XKU304,344 |
1 | ||
| 61109-37031 |
XKU304 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 61109-37011 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 61109-37050 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-37060 |
XKU304;XKU344..30T ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61231-37050 |
XKU304,344 |
1 | ||
| 61231-37060 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61231-37050 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 61231-89120 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ |
1 | ||
| 61231-89119 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-37060 |
XKU304;XKU344..30T ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61231-37050 |
XKU304,344 |
1 | ||
| 61231-37060 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61231-37050 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 61231-89120 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ |
1 | ||
| 61231-89119 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-37050 |
XKU304,344 |
1 | ||
| 61232-37050 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 61232-89120 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ |
1 | ||
| 61232-37060 |
XKU304;XKU344..30T ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61232-89119 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61232-37060 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-37050 |
XKU304,344 |
1 | ||
| 61232-37050 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 61232-89120 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ |
1 | ||
| 61232-37060 |
XKU304;XKU344..30T ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61232-89119 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61232-37060 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-37020 |
XKU30#,338,34#,508 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61245-37010 |
XKU304,344 |
1 | ||
| 61245-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61245-37020 |
XKU304;XKU344..30T ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61245-37010 |
XKU304,344 |
1 | ||
| 61246-37010 |
XKU304;XKU344..30T ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61246-37010 |
XKU30#,338,34#,508 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61245-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61451B - PLATE, STEP, LOWER RH | ||||
| 61451-37010 |
XKU304,344 |
1 | ||
| 61451-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61452C - PLATE, STEP, LOWER LH | ||||
| 61452-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61452-37010 |
XKU304,344 |
1 | ||
| 61455A - RETAINER, FRONT STEP, RH | ||||
| 61455-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61455-37010 |
XKU304,344 |
1 | ||
| 61456B - RETAINER, FRONT STEP, LH | ||||
| 61456-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61456-37010 |
XKU304,344 |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-37010 |
XKU304;XKU344..30T ｱﾘ(ﾄﾘﾑ) |
1 | ||
| 61503-37040 |
XKU304;XKU344..30T ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61503-37020 |
XKU30#,338,34#,508 |
1 | ||
| 61503-37040 |
XKU30#,338,34#,508 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61503-37020 |
XKU304,344 |
1 | ||
| 61503-37010 |
XKU30#,338,34#,508 ｱﾘ(ﾄﾘﾑ) |
1 | ||
| 61503-37030 |
XKU304;XKU344..30T ｱﾘ(ﾄﾘﾑ & ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61503-37030 |
XKU30#,338,34#,508 ｱﾘ(ﾄﾘﾑ & ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-37010 |
XKU304,344 |
1 | ||
| 61504-37020 |
XKU30#,338,34#,508 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61504-37020 |
XKU304;XKU344..30T ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61504-37040 |
XKU304 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 61504-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61515B - EXTENSION, QUARTER LOCK PILLAR, RH | ||||
| 61515-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61515-37010 |
XKU304,344 |
1 | ||
| 61516 - EXTENSION, QUARTER LOCK PILLAR, LH | ||||
| 61516-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61516-37010 |
XKU304,344 |
1 | ||
| 61575B - PLATE, CAB REAR PILLAR, UPPER RH | ||||
| 61575-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61575-37010 |
XKU304,344 |
1 | ||
| 61576 - PLATE, CAB REAR PILLAR, UPPER LH | ||||
| 61576-37010 |
XKU304,344 |
1 | ||
| 61576-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61661D - EXTENSION, QUARTER PANEL TO UPPER BACK, RH | ||||
| 61661-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61661-37010 |
XKU304,344 |
1 | ||
| 61662B - EXTENSION, QUARTER PANEL TO UPPER BACK, LH | ||||
| 61662-37010 |
XKU304,344 |
1 | ||
| 61662-37010 |
XKU30#,338,34#,508 |
1 | ||
| 64015 - PANEL SUB-ASSY, BACK CORNER, INNER RH | ||||
| 61531-37010 |
XKU304;XKU344..30T ｱﾘ(ﾄﾘﾑ) |
1 | ||
| 61531-37010 |
XKU30#,338,34#,508 ｱﾘ(ﾄﾘﾑ) |
1 | ||
| 61531-37040 |
XKU304,344 |
1 | ||
| 61531-37040 |
XKU30#,338,34#,508 |
1 | ||
| 64016 - PANEL SUB-ASSY, BACK CORNER, INNER LH | ||||
| 61532-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61532-37010 |
XKU304,344 |
1 | ||
| 61532-37021 |
XKU30#,338,34#,508 ｱﾘ(ﾄﾘﾑ) |
1 | ||
| 61532-37021 |
XKU304;XKU344..30T ｱﾘ(ﾄﾘﾑ) |
1 | ||
| 64103A - PANEL SUB-ASSY, BACK CORNER, OUTER RH | ||||
| 61611-37150 |
XKU304,344 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61611-37140 |
XKU304,344 |
1 | ||
| 61111-89101 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61611-37151 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61111-89105 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ |
1 | ||
| 61611-37141 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 64104A - PANEL SUB-ASSY, BACK CORNER, OUTER LH | ||||
| 61612-37110 |
XKU304,344 |
1 | ||
| 61612-37120 |
XKU304,344 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61612-37121 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61112-89107 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ |
1 | ||
| 61112-89101 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61612-37111 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 61112-89102 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ & ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ ｱﾝﾃﾅ) |
1 | ||
| 61112-89108 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ ｱﾝﾃﾅ) |
1 | ||
| Common parts | ||||
| 61315-22020 | ||||
| 90179-04031 | ||||
| Linked diagrams | ||||
| 5752 | ||||

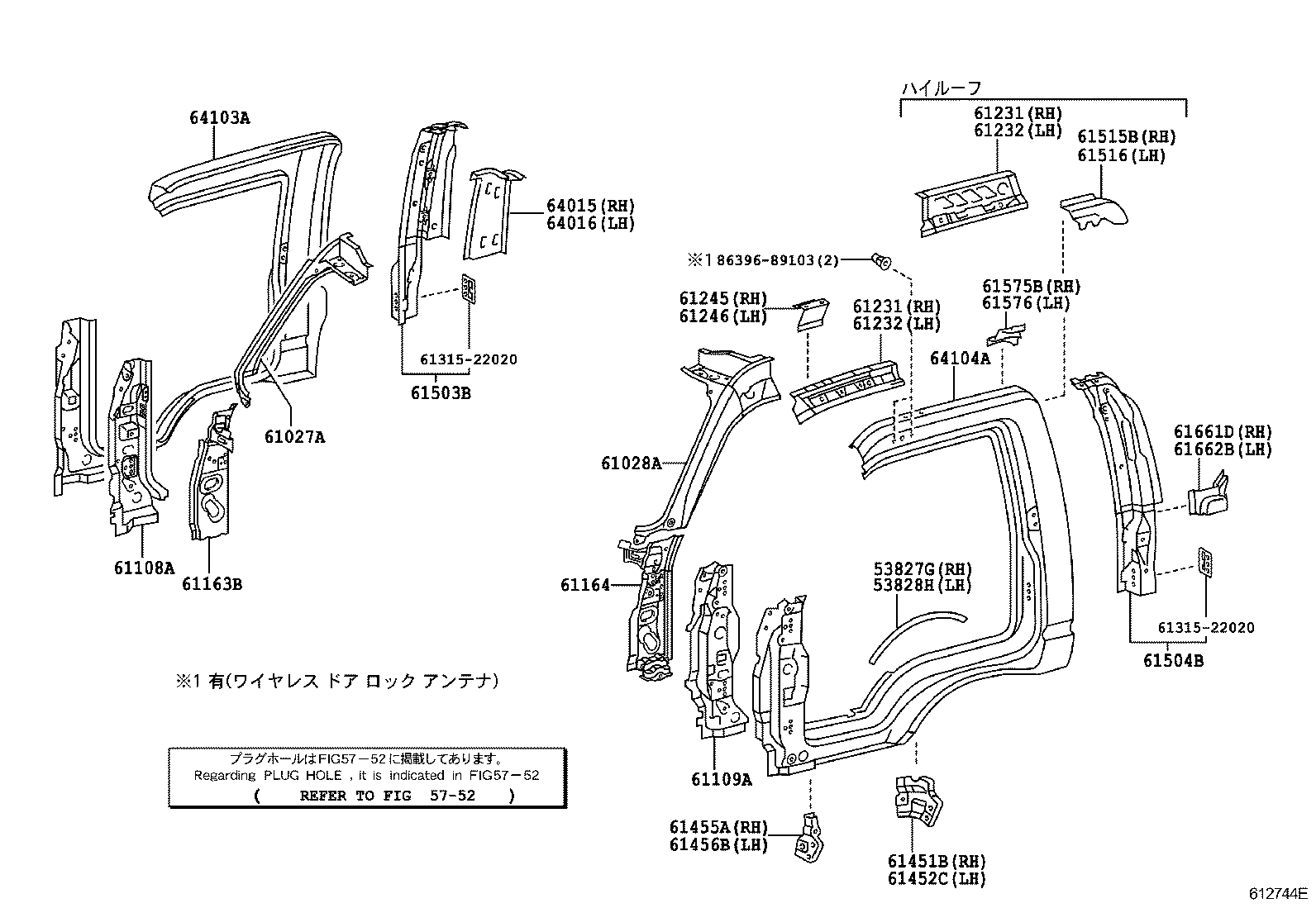

ILLUST NO. 1 OF 2(0610- )
ｳｲﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ=ｾｯﾁｬｸﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-37010 |
XKU304,344 |
1 | ||
| 53827-37010 |
XKU30#,338,34#,508 |
1 | ||
| 53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53827-37010 |
XKU304,344 |
1 | ||
| 53827-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61131-37061 |
XKU304,344 |
1 | ||
| 61131-37071 |
XKU304,344 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61131-37062 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 61131-37072 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61027-89119 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ |
1 | ||
| 61027-89118 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61132-37041 |
XKU304,344 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ ｱﾝﾃﾅ) |
1 | ||
| 61132-37061 |
XKU304,344 |
1 | ||
| 61132-37071 |
XKU304,344 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61132-37051 |
XKU304,344 ｱﾘ(ﾊｲ ﾙ-ﾌ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ ｱﾝﾃﾅ) |
1 | ||
| 61132-37072 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61132-37042 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ ｱﾝﾃﾅ) |
1 | ||
| 61132-37052 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ & ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ ｱﾝﾃﾅ) |
1 | ||
| 61132-37062 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 61132-37111 |
XKU304 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 61028-89118 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61028-89119 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-37031 |
XKU304,344 |
1 | ||
| 61108-37060 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ |
1 | ||
| 61108-37031 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-37011 |
XKU304,344 |
1 | ||
| 61109-37031 |
XKU304 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 61109-37011 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 61109-37050 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-37060 |
XKU304;XKU344..30T ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61231-37050 |
XKU304,344 |
1 | ||
| 61231-37060 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61231-37050 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 61231-89120 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ |
1 | ||
| 61231-89119 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-37060 |
XKU304;XKU344..30T ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61231-37050 |
XKU304,344 |
1 | ||
| 61231-37060 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61231-37050 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 61231-89120 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ |
1 | ||
| 61231-89119 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-37050 |
XKU304,344 |
1 | ||
| 61232-37050 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 61232-89120 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ |
1 | ||
| 61232-37060 |
XKU304;XKU344..30T ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61232-89119 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61232-37060 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-37050 |
XKU304,344 |
1 | ||
| 61232-37050 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 61232-89120 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ |
1 | ||
| 61232-37060 |
XKU304;XKU344..30T ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61232-89119 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61232-37060 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-37020 |
XKU30#,338,34#,508 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61245-37010 |
XKU304,344 |
1 | ||
| 61245-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61245-37020 |
XKU304;XKU344..30T ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61245-37010 |
XKU304,344 |
1 | ||
| 61246-37010 |
XKU304;XKU344..30T ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61246-37010 |
XKU30#,338,34#,508 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61245-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61451B - PLATE, STEP, LOWER RH | ||||
| 61451-37010 |
XKU304,344 |
1 | ||
| 61451-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61452C - PLATE, STEP, LOWER LH | ||||
| 61452-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61452-37010 |
XKU304,344 |
1 | ||
| 61455A - RETAINER, FRONT STEP, RH | ||||
| 61455-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61455-37010 |
XKU304,344 |
1 | ||
| 61456B - RETAINER, FRONT STEP, LH | ||||
| 61456-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61456-37010 |
XKU304,344 |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-37010 |
XKU304;XKU344..30T ｱﾘ(ﾄﾘﾑ) |
1 | ||
| 61503-37040 |
XKU304;XKU344..30T ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61503-37020 |
XKU30#,338,34#,508 |
1 | ||
| 61503-37040 |
XKU30#,338,34#,508 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61503-37020 |
XKU304,344 |
1 | ||
| 61503-37010 |
XKU30#,338,34#,508 ｱﾘ(ﾄﾘﾑ) |
1 | ||
| 61503-37030 |
XKU304;XKU344..30T ｱﾘ(ﾄﾘﾑ & ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61503-37030 |
XKU30#,338,34#,508 ｱﾘ(ﾄﾘﾑ & ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-37010 |
XKU304,344 |
1 | ||
| 61504-37020 |
XKU30#,338,34#,508 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61504-37020 |
XKU304;XKU344..30T ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61504-37040 |
XKU304 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 61504-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61515B - EXTENSION, QUARTER LOCK PILLAR, RH | ||||
| 61515-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61515-37010 |
XKU304,344 |
1 | ||
| 61516 - EXTENSION, QUARTER LOCK PILLAR, LH | ||||
| 61516-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61516-37010 |
XKU304,344 |
1 | ||
| 61575B - PLATE, CAB REAR PILLAR, UPPER RH | ||||
| 61575-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61575-37010 |
XKU304,344 |
1 | ||
| 61576 - PLATE, CAB REAR PILLAR, UPPER LH | ||||
| 61576-37010 |
XKU304,344 |
1 | ||
| 61576-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61661D - EXTENSION, QUARTER PANEL TO UPPER BACK, RH | ||||
| 61661-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61661-37010 |
XKU304,344 |
1 | ||
| 61662B - EXTENSION, QUARTER PANEL TO UPPER BACK, LH | ||||
| 61662-37010 |
XKU304,344 |
1 | ||
| 61662-37010 |
XKU30#,338,34#,508 |
1 | ||
| 64015 - PANEL SUB-ASSY, BACK CORNER, INNER RH | ||||
| 61531-37010 |
XKU304;XKU344..30T ｱﾘ(ﾄﾘﾑ) |
1 | ||
| 61531-37010 |
XKU30#,338,34#,508 ｱﾘ(ﾄﾘﾑ) |
1 | ||
| 61531-37040 |
XKU304,344 |
1 | ||
| 61531-37040 |
XKU30#,338,34#,508 |
1 | ||
| 64016 - PANEL SUB-ASSY, BACK CORNER, INNER LH | ||||
| 61532-37010 |
XKU30#,338,34#,508 |
1 | ||
| 61532-37010 |
XKU304,344 |
1 | ||
| 61532-37021 |
XKU30#,338,34#,508 ｱﾘ(ﾄﾘﾑ) |
1 | ||
| 61532-37021 |
XKU304;XKU344..30T ｱﾘ(ﾄﾘﾑ) |
1 | ||
| 64103A - PANEL SUB-ASSY, BACK CORNER, OUTER RH | ||||
| 61611-37150 |
XKU304,344 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61611-37140 |
XKU304,344 |
1 | ||
| 61111-89101 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61611-37151 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61111-89105 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ |
1 | ||
| 61611-37141 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 64104A - PANEL SUB-ASSY, BACK CORNER, OUTER LH | ||||
| 61612-37110 |
XKU304,344 |
1 | ||
| 61612-37120 |
XKU304,344 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 61612-37121 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61112-89107 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ |
1 | ||
| 61112-89101 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ |
1 | ||
| 61612-37111 |
XKU30#,338,34#,508 ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 61112-89102 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ﾊｲ ﾙｰﾌ & ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ ｱﾝﾃﾅ) |
1 | ||
| 61112-89108 |
XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ ｱﾝﾃﾅ) |
1 | ||
| Common parts | ||||
| 61315-22020 | ||||
| 86396-89103 | ||||
| Linked diagrams | ||||
| 5752 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
