XKU304A-TYMMB3 (2006)

Toyota Dyna/Toyoace Hv

Production Oct 2006 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )

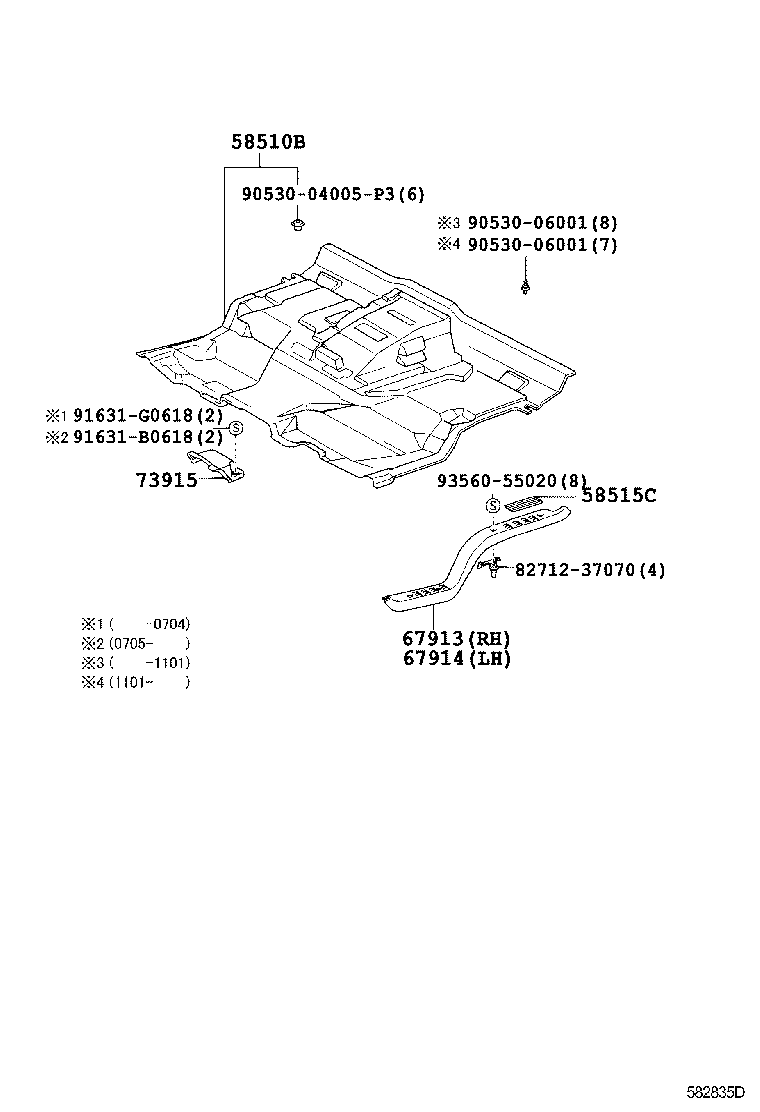

Click highlighted areas on diagram

diagram 58510B 58515C 67913 67914 73915 8271237070 9053004005P3 9053006001 9053006001 91631B0618 91631G0618 9356055020
Part # Description Qty Price
58510B - MAT, FRONT FLOOR, FRONT
58510-37580B1

XKU304,344

ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=02S ﾖｳ & ｵﾙｶﾞﾝｼｷ ｱｸｾﾙﾍﾟﾀﾞﾙ),DARK CHARCOAL,TRIM1#

 1
58510-3V050B0

XKU304;XKU344..30T

ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=03S ﾖｳ & ｵﾙｶﾞﾝｼｷ ｱｸｾﾙﾍﾟﾀﾞﾙ),DARK CHARCOAL,TRIM1#

 1
58510-37G70B0

XKU304

ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ),DARK CHARCOAL,TRIM1#

 1
58515C - MAT, FRONT FLOOR, REAR NO.1
58515-37080B1

XKU304,344

MD.CHARCOAL,TRIM1#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-37010B0

XKU304,344

MD.CHARCOAL,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-37010B0

XKU304,344

MD.CHARCOAL,TRIM1#

 1
73915 - COVER, SEAT AIR BAG NO.1, RH
73915-37010

XKU304,344

 1
73915-37010

XKU30#,338,34#,508

 1
Common parts
82712-37070
90530-04005P3
90530-06001
91631-B0618
91631-G0618
93560-55020
