XKU304A-TYMMB3 (2006)
Toyota Dyna/Toyoace Hv

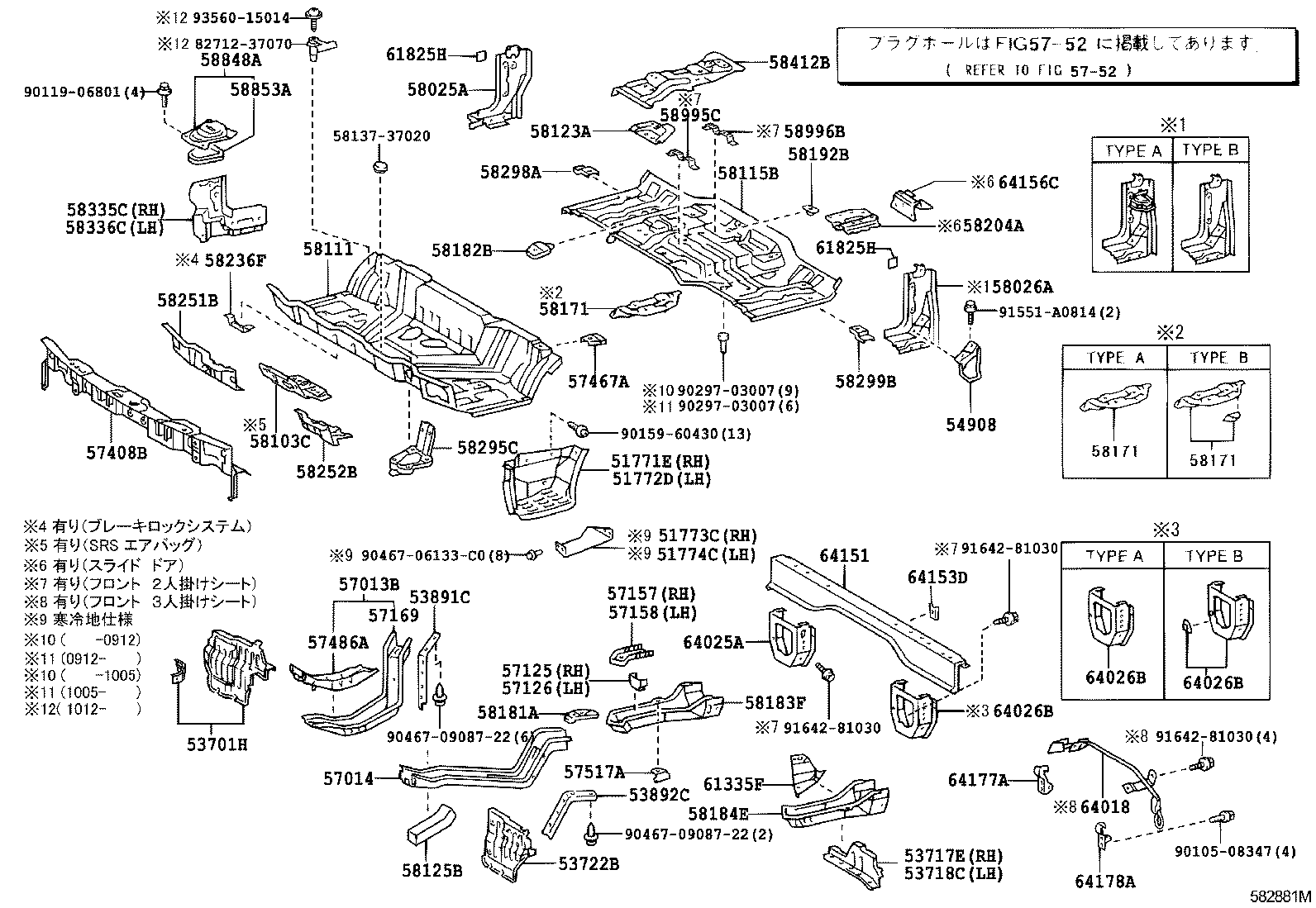

ILLUST NO. 1 OF 2(0610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51771E - PLATE, STEP, RH | ||||
| 51771-37190 |
XKU304,344 |
1 | ||
| 51772D - PLATE, STEP, LH | ||||
| 51772-37080 |
XKU304,344 |
1 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-37020 |
XKU304,344 塗装不要 |
1 | ||
| 51773-37020 |
XKU30#,338,34#,508 塗装不要 |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51774-37010 |
XKU30#,338,34#,508 塗装不要 |
1 | ||
| 51774-37010 |
XKU304,344 塗装不要 |
1 | ||
| 53701H - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-37032 |
XKU30#,338,34#,508 |
1 | ||
| 53701-37022 |
XKU304,344 |
1 | ||
| 53701-37031 |
XKU30#,338,34#,508 |
1 | ||
| 53717E - APRON, FRONT FENDER, NO.2 RH | ||||
| 53717-37130 |
XKU304,344 |
1 | ||
| 53717-37130 |
XKU30#,338,34#,508 |
1 | ||
| 53718C - APRON, FRONT FENDER, NO.2 LH | ||||
| 53718-37110 |
XKU304,344 |
1 | ||
| 53718-37110 |
XKU30#,338,34#,508 |
1 | ||
| 53722B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53722-37031 |
XKU304,344 |
1 | ||
| 53891C - SEAL, FRONT FENDER SPLASH SHEILD, FRONT | ||||
| 53891-37030 |
XKU304,344 |
1 | ||
| 53891-37031 |
XKU30#,338,34#,508 |
1 | ||
| 53892C - SEAL, FRONT FENDER SPLASH SHIELD, FRONT LH | ||||
| 53892-37030 |
XKU304,344 |
1 | ||
| 53892-37080 |
XKU30#,338,34#,508 |
1 | ||
| 54908 - BRACKET SUB-ASSY, TILT CAB GRIP | ||||
| 54908-37010 |
XKU304,344 |
1 | ||
| 54908-37010 |
XKU30#,338,34#,508 |
1 | ||
| 57013B - MEMBER SUB-ASSY, FLOOR, FRONT RH | ||||
| 57013-37240 |
XKU304,344 |
1 | ||
| 57013-37240 |
XKU30#,338,34#,508 |
1 | ||
| 57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH | ||||
| 57014-37070 |
XKU304,344 |
1 | ||
| 57014-37070 |
XKU30#,338,34#,508 |
1 | ||
| 57125 - BRACKET, FRONT SIDE MEMBER, RH | ||||
| 57125-37010 |
XKU304,344 |
1 | ||
| 57125-37010 |
XKU30#,338,34#,508 |
1 | ||
| 57126 - BRACKET, FRONT SIDE MEMBER, LH | ||||
| 57126-37020 |
XKU304,344 |
1 | ||
| 57126-37020 |
XKU30#,338,34#,508 |
1 | ||
| 57157 - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH | ||||
| 57157-37030 |
XKU304,344 |
1 | ||
| 57157-37030 |
XKU30#,338,34#,508 |
1 | ||
| 57158 - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH | ||||
| 57158-37030 |
XKU30#,338,34#,508 |
1 | ||
| 57158-37030 |
XKU304,344 |
1 | ||
| 57169 - MEMBER, FRONT FLOOR, FRONT RH | ||||
| 57169-37081 |
XKU30#,338,34#,508 |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-37350 |
XKU304,344 |
1 | ||
| 57467A - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH | ||||
| 57467-37011 |
XKU30#,338,34#,508 |
1 | ||
| 57467-37010 |
XKU304,344 |
1 | ||
| 57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-37050 |
XKU30#,338,34#,508 |
1 | ||
| 57517A - RETAINER, FRONT FLOOR REINFORCEMENT, REAR | ||||
| 57517-37011 |
XKU30#,338,34#,508 |
1 | ||
| 57517-37010 |
XKU304,344 |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58043-37060 |
XKU304,344 |
1 | ||
| 58043-37060 |
XKU30#,338,34#,508 |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58044-37090 |
XKU304;XKU344..30T TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58044-37070 |
XKU30#,338,34#,508 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58044-37090 |
XKU30#,338,34#,508 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58044-37070 |
XKU304;XKU344..30T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58103C - REINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT | ||||
| 58103-37031 |
XKU30#,338,34#,508 |
1 | ||
| 58103-37031 |
XKU304,344 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-37172 |
XKU304,344 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 58111-37530 |
XKU30#,508..DM6,T4 |
1 | ||
| 58111-37302 |
XKU304,344 |
1 | ||
| 58115B - PANEL, FRONT FLOOR, REAR | ||||
| 58115-37013 |
XKU304,344 |
1 | ||
| 58115-37023 |
XKU304,344 ｱﾘ(ﾌﾛﾝﾄ 2ﾆﾝｶﾞｹ ｼ-ﾄ) |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-37010 |
XKU304,344 |
1 | ||
| 58123-37010 |
XKU30#,338,34#,508 |
1 | ||
| 58125B - SEAL, FRONT FLOOR TO FRAME | ||||
| 58125-37020 |
XKU304,344 |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-37010 |
XKU304;XKU344..30T TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58107-37010 |
XKU30#,338,34#,508 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58171-37010 |
XKU304;XKU344..30T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-37030 |
XKU304,344 |
1 | ||
| 58181-37030 |
XKU30#,338,34#,508 |
1 | ||
| 58182B - RETAINER, SEAT RAIL, FRONT LH | ||||
| 58182-37010 |
XKU30#,338,34#,508 |
1 | ||
| 58182-37010 |
XKU304,344 |
1 | ||
| 58183F - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-37061 |
XKU304,344 |
1 | ||
| 58184E - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-37073 |
XKU304,344 |
1 | ||
| 58184-37073 |
XKU30#,338,34#,508 |
1 | ||
| 58192B - PLATE, FRONT FLOOR, REAR | ||||
| 58192-37020 |
XKU304,344 |
3 | ||
| 58192-37020 |
XKU30#,338,34#,508 |
3 | ||
| 58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH | ||||
| 58204-37010 |
XKU304 |
1 | ||
| 58251B - BRACE, FLOOR PANEL, FRONT | ||||
| 58251-37032 |
XKU30#,338,34#,508 |
1 | ||
| 58251-37031 |
XKU304,344 |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-37031 |
XKU30#,338,34#,508 |
1 | ||
| 58252-37031 |
XKU304,344 |
1 | ||
| 58295C - BRACKET, FLOOR SHIFT LEVER, NO.1 | ||||
| 58295-37060 |
XKU30#,338,34#,508 |
1 | ||
| 58295-37060 |
XKU304,344 |
1 | ||
| 58298A - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH | ||||
| 58298-37010 |
XKU304,344 |
1 | ||
| 58298-37010 |
XKU30#,338,34#,508 |
1 | ||
| 58299B - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH | ||||
| 58298-37010 |
XKU304,344 |
1 | ||
| 58298-37010 |
XKU30#,338,34#,508 |
1 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-37040 |
XKU304,344 |
1 | ||
| 58335-37040 |
XKU30#,338,34#,508 |
1 | ||
| 58335-37041 |
XKU30#,338,34#,508 |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-37031 |
XKU30#,338,34#,508 |
1 | ||
| 58336-37031 |
XKU304,344 |
1 | ||
| 58412B - REINFORCEMENT, ENGINE SUB COVER | ||||
| 58412-37030 |
XKU304,344 |
1 | ||
| 58848A - COVER, SHIFT LEVER HOLE | ||||
| 58840-37010 |
XKU304,344 |
1 | ||
| 58840-37010 |
XKU30#,338,34#,508 |
1 | ||
| 58853A - PACKING, SHIFT LEVER HOLE | ||||
| 58853-37020 |
XKU304,344 |
1 | ||
| 58853-37020 |
XKU30#,338,34#,508 |
1 | ||
| 58995C - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-37030 |
XKU304,344 |
1 | ||
| 58996B - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-37020 |
XKU304,344 |
1 | ||
| 61335F - RETAINER, SEAT BELT ANCHOR | ||||
| 57405-37070 |
XKU304,344 ｱﾘ(ﾌﾛﾝﾄ 2ﾆﾝｶﾞｹ ｼ-ﾄ) |
1 | ||
| 61335-37010 |
XKU304;XKU344..30T ｱﾘ(ﾌﾛﾝﾄ 3ﾆﾝｶﾞｹ ｼ-ﾄ) |
1 | ||
| 61335-37010 |
XKU30#,338,34#,508 ｱﾘ(ﾌﾛﾝﾄ 3ﾆﾝｶﾞｹ ｼ-ﾄ) |
1 | ||
| 61825H - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-34010 |
XKU304,344 |
2 | ||
| 61825-34010 |
XKU30#,338,34#,508 |
2 | ||
| 61825H - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-34010 |
XKU304,344 |
2 | ||
| 61825-34010 |
XKU30#,338,34#,508 |
2 | ||
| 64018 - BAR SUB-ASSY, BODY | ||||
| 64018-37070 |
XKU30#,338,34#,508 |
1 | ||
| 64018-37071 |
XKU30#,338,34#,508 |
1 | ||
| 64018-37070 |
XKU304,344 |
1 | ||
| 64025A - BRACKET SUB-ASSY, REAR MOUNTING, RH | ||||
| 64171-37011 |
XKU304,344 |
1 | ||
| 64171-37011 |
XKU30#,338,34#,508 |
1 | ||
| 64026B - BRACKET SUB-ASSY, REAR MOUNTING, LH | ||||
| 64026-37100 |
XKU304,344 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64172-37022 |
XKU30#,338,34#,508 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64172-37022 |
XKU304;XKU344..30T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64026B - BRACKET SUB-ASSY, REAR MOUNTING, LH | ||||
| 64026-37100 |
XKU304,344 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64172-37022 |
XKU30#,338,34#,508 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64172-37022 |
XKU304;XKU344..30T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64026B - BRACKET SUB-ASSY, REAR MOUNTING, LH | ||||
| 64026-37100 |
XKU304,344 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64172-37022 |
XKU30#,338,34#,508 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64172-37022 |
XKU304;XKU344..30T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64151 - FRAME, BACK | ||||
| 64151-37181 |
XKU304,344 |
1 | ||
| 64153D - REINFORCEMENT, BACK FRAME | ||||
| 52123-32040 |
XKU304,344 |
1 | ||
| 52123-32040 |
XKU30#,338,34#,508 |
1 | ||
| 64156C - PLATE, BACK FRAME, LH | ||||
| 64156-37060 |
XKU304 |
1 | ||
| 64177A - STOPPER, REAR MOUNTING BRACKET, RH | ||||
| 64177-37030 |
XKU304,344 |
1 | ||
| 64177-37031 |
XKU30#,338,34#,508 |
1 | ||
| 64178A - STOPPER, REAR MOUNTING BRACKET, LH | ||||
| 64178-37031 |
XKU30#,338,34#,508 |
1 | ||
| 64178-37030 |
XKU304,344 |
1 | ||
| Common parts | ||||
| 58137-37020 | ||||
| 82712-37070 | ||||
| 90105-08347 | ||||
| 90119-06801 | ||||
| 90159-60430 | ||||
| 90297-03007 | ||||
| 90467-06133C0 | ||||
| 90467-0908722 | ||||
| 91551-A0814 | ||||
| 91642-81030 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 5752 | ||||
