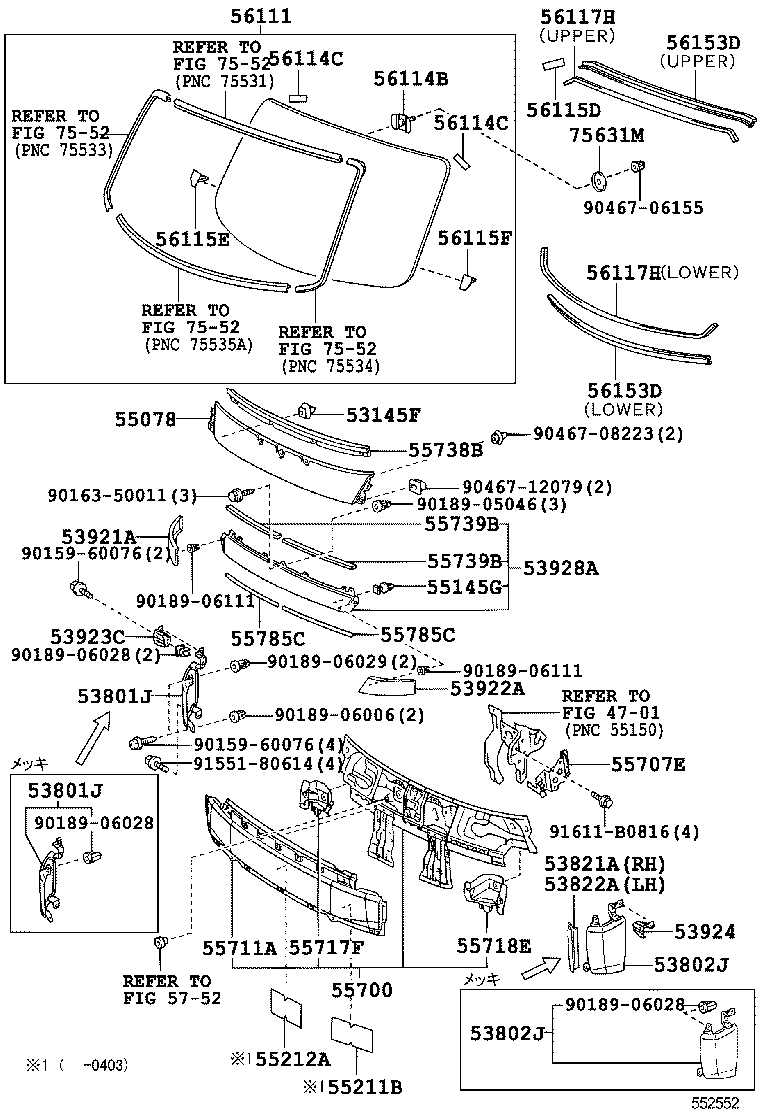

Toyota Dyna/toyoace hv XKU304 FRONT PANEL & WINDSHIELD GLASS

Part #	Description	Period	Qty
53145F - CLIP, RADIATOR GRILLE GARNISH
90467-08208	XKU30#,338,34#,508	10/2006 - 12/2999	4
90467-08208	XKU304,344	10/2003 - 10/2006	4
53801J - PANEL SUB-ASSY, FRONT SIDE, RH
53801-37021	XKU30#,338,34#,508 ﾄｿｳﾖｳ	10/2006 - 12/2999	1
53801-37041	XKU30#,338,34#,508 ﾒﾂｷ	10/2006 - 12/2999	1
53801-37061	XKU304,344 ﾄｿｳﾖｳ	10/2003 - 10/2006	1
53801-37071	XKU304,344 ﾒﾂｷ	10/2003 - 10/2006	1
53801J - PANEL SUB-ASSY, FRONT SIDE, RH
53801-37021	XKU30#,338,34#,508 ﾄｿｳﾖｳ	10/2006 - 12/2999	1
53801-37041	XKU30#,338,34#,508 ﾒﾂｷ	10/2006 - 12/2999	1
53801-37061	XKU304,344 ﾄｿｳﾖｳ	10/2003 - 10/2006	1
53801-37071	XKU304,344 ﾒﾂｷ	10/2003 - 10/2006	1
53802J - PANEL SUB-ASSY, FRONT SIDE, LH
53802-37061	XKU304,344 ﾄｿｳﾖｳ	10/2003 - 10/2006	1
53802-37071	XKU304,344 ﾒﾂｷ	10/2003 - 10/2006	1
53802-37041	XKU30#,338,34#,508 ﾒﾂｷ	10/2006 - 12/2999	1
53802-37021	XKU30#,338,34#,508 ﾄｿｳﾖｳ	10/2006 - 12/2999	1
53802J - PANEL SUB-ASSY, FRONT SIDE, LH
53802-37061	XKU304,344 ﾄｿｳﾖｳ	10/2003 - 10/2006	1
53802-37071	XKU304,344 ﾒﾂｷ	10/2003 - 10/2006	1
53802-37041	XKU30#,338,34#,508 ﾒﾂｷ	10/2006 - 12/2999	1
53802-37021	XKU30#,338,34#,508 ﾄｿｳﾖｳ	10/2006 - 12/2999	1
53821A - PROTECTOR, FRONT SIDE PANEL, NO.1 RH
53821-37070	XKU304,344	10/2003 - 10/2006	1
53821-37070	XKU30#,338,34#,508	10/2006 - 12/2999	1
53822A - PROTECTOR, FRONT SIDE PANEL, NO.1 LH
53821-37070	XKU30#,338,34#,508	10/2006 - 12/2999	1
53821-37070	XKU304,344	10/2003 - 10/2006	1
53921A - PANEL, FRONT VALANCE, RH
53921-37010	XKU304,344	10/2003 - 10/2006	1
53922A - PANEL, FRONT VALANCE, LH
53922-37010	XKU304,344	10/2003 - 10/2006	1
53923C - SUPPORT, FRONT SIDE GARNISH, RH
53923-25010	XKU304,344	10/2003 - 10/2006	1
53923-25010	XKU30#,338,34#,508	10/2006 - 12/2999	1
53924 - PLATE, NOISE SHUTTER SUPPORT, NO.2
53924-25010	XKU304,344	10/2003 - 10/2006	1
53924-25010	XKU30#,338,34#,508	10/2006 - 12/2999	1
53928A - GARNISH, FRONT PANEL, CENTER
53928-37030	XKU304,344	10/2003 - 04/2004	1
53928-37031	XKU30#,338,34#,508	10/2006 - 12/2999	1
55078 - COVER SUB-ASSY, FRONT PANEL
55078-37070	XKU30#,338,34#,508	10/2006 - 12/2999	1
55078-37070	XKU304,344	10/2003 - 10/2006	1
55145G - CLIP, RADIATOR GRILLE GARNISH
53145-27010	XKU304,344	10/2003 - 04/2004	7
53145-27010	XKU30#,338,34#,508	10/2006 - 12/2999	7
55211B - SILENCER, FRONT PANEL
55211-37030	XKU304,344	10/2003 - 03/2004	2
55212A - SILENCER, FRONT PANEL, LOWER
55212-37010	XKU304,344	10/2003 - 03/2004	1
55700 - PANEL ASSY, FRONT
55700-37111	XKU304,344	10/2003 - 10/2006	1
55700-37111	XKU30#,338,34#,508	10/2006 - 01/2008	1
55700-37310	XKU30#,338,34#,508 ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	01/2008 - 12/2999	1
55711A - PANEL, FRONT, LOWER
55711-37051	XKU30#,338,34#,508	10/2006 - 12/2999	1
55711-37050	XKU304,344	10/2003 - 04/2005	1
55717F - EXTENSION, FRONT PANEL REINFORCEMENT, RH
55717-37020	XKU304,344	10/2003 - 10/2006	1
55717-37020	XKU30#,338,34#,508	10/2006 - 12/2999	1
55718E - EXTENSION, FRONT PANEL REINFORCEMENT, LH
55718-37010	XKU30#,338,34#,508	10/2006 - 12/2999	1
55718-37010	XKU304,344	10/2003 - 10/2006	1
55738B - PROTECTOR, FRONT PANEL COVER, NO.1
55738-37051	XKU30#,338,34#,508	10/2006 - 12/2999	1
55738-37050	XKU304,344	10/2003 - 12/2003	1
55739B - PROTECTOR, FRONT PANEL COVER, NO.2
55739-37070	XKU304,344	10/2003 - 04/2004	2
55739-37070	XKU30#,338,34#,508	10/2006 - 12/2999	2
55739B - PROTECTOR, FRONT PANEL COVER, NO.2
55739-37070	XKU304,344	10/2003 - 04/2004	2
55739-37070	XKU30#,338,34#,508	10/2006 - 12/2999	2
55785C - PAD, FRONT PANEL COVER
55785-37020	XKU30#,338,34#,508	10/2006 - 12/2999	2
55785-37020	XKU304,344	10/2003 - 10/2006	2
55785C - PAD, FRONT PANEL COVER
55785-37020	XKU30#,338,34#,508	10/2006 - 12/2999	2
55785-37020	XKU304,344	10/2003 - 10/2006	2
56111 - GLASS, WINDSHIELD
56111-37120	XKU30#,338,34#,508 *LAM,T=5.76,ｸﾞﾘｰﾝ	10/2006 - 12/2999	1
56111-37120	XKU304,344 *LAM,T=5.76,ｸﾞﾘｰﾝ	10/2003 - 10/2006	1
56101-89101	XKU304..5F..DCRTJ *LAM,T=5.76,ｸﾞﾘｰﾝ,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ	01/2008 - 12/2999	1
56114B - RETAINER, WINDSHIELD GLASS
56114-89101	XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ	01/2008 - 12/2999	1
56114C - RETAINER, WINDSHIELD GLASS
56114-89102	XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ	01/2008 - 12/2999	2
56114C - RETAINER, WINDSHIELD GLASS
56114-89102	XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ	01/2008 - 12/2999	2
56115D - STOPPER, WINDSHIELD GLASS
56115-89105	XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ	01/2008 - 12/2999	2
56115E - STOPPER, WINDSHIELD GLASS
56115-89103	XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ	01/2008 - 12/2999	1
56115F - STOPPER, WINDSHIELD GLASS
56115-89104	XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ	01/2008 - 12/2999	1
56153D - MOULDING, FRONT WINDOW, INNER CENTER
56153-89105	XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ,下側	01/2008 - 12/2999	1
56153-89104	XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ,上側	01/2008 - 12/2999	1
56153D - MOULDING, FRONT WINDOW, INNER CENTER
56153-89105	XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ,下側	01/2008 - 12/2999	1
56153-89104	XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ,上側	01/2008 - 12/2999	1
75631M - GARNISH, ROOF TOP, FRONT
75631-89101	XKU304..5F..DCRTJ ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ	01/2008 - 12/2999	1
Common parts
90159-60076
90163-50011
90189-05046
90189-06006
90189-06028
90189-06029
90189-06111
90467-06155
90467-08223
90467-12079
91551-80614
91611-B0816
Linked diagrams
4701
5752
7552

XKU304A-TYMMB3 (2006)

ILLUST NO. 1 OF 3(0610- )

ILLUST NO. 3 OF 3(0610- )
